Description

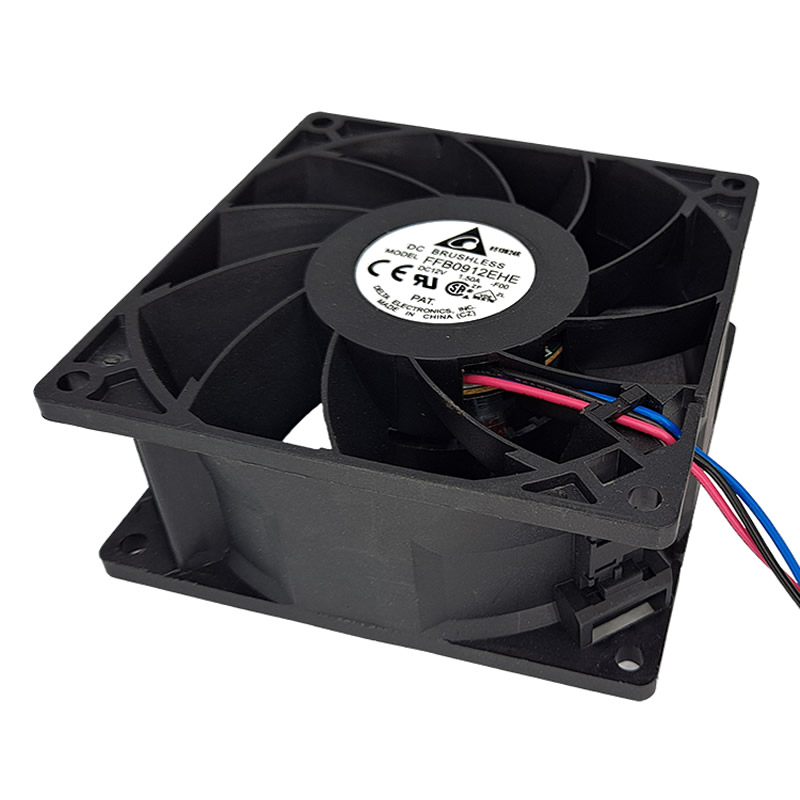

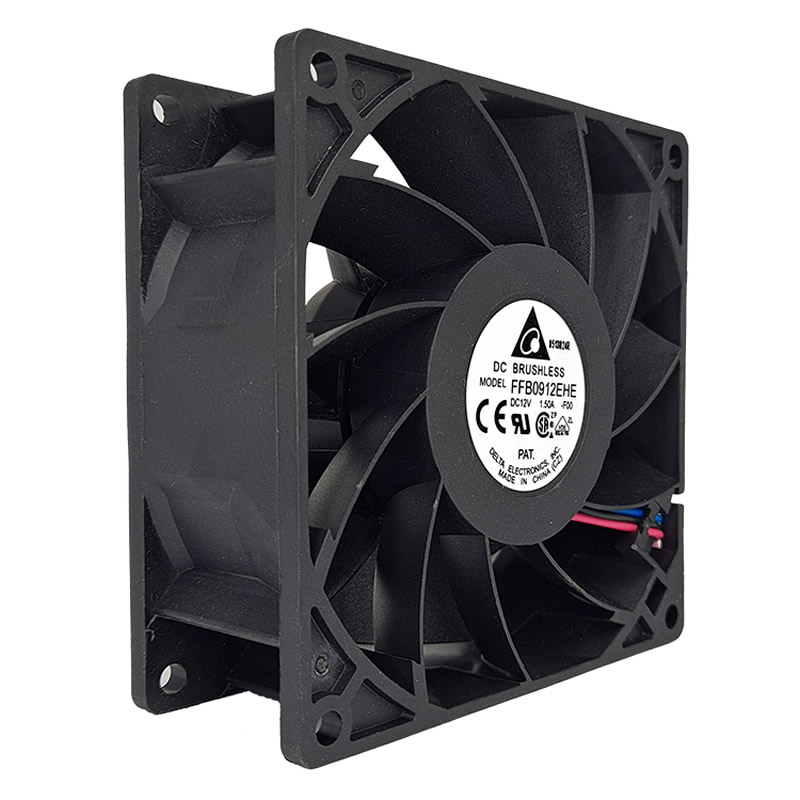

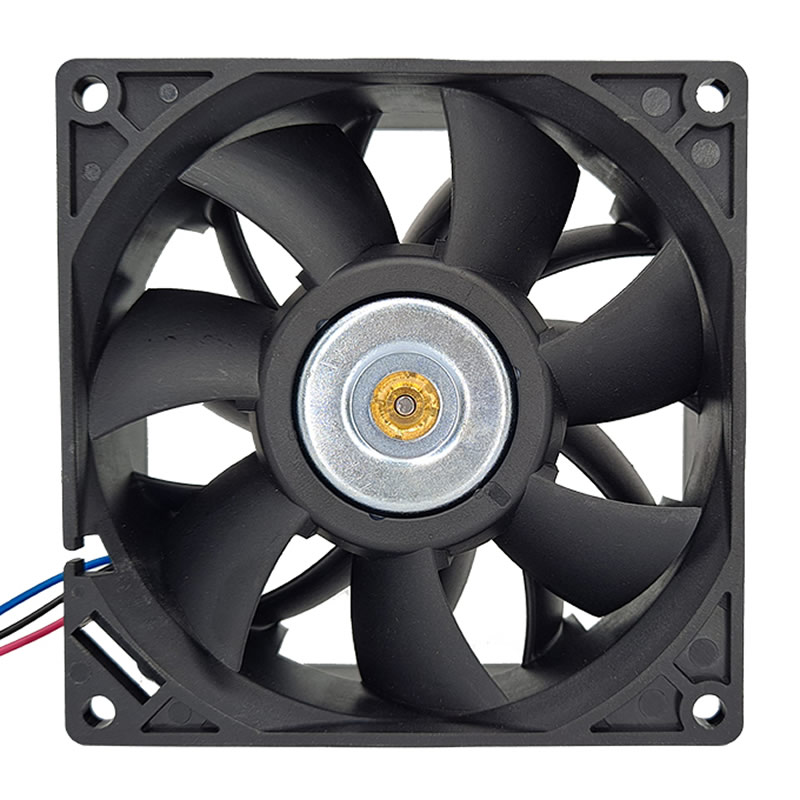

FFB0912EHE-F00 Delta 92x92x38mm Ball 12VDC 110.18CFM(3.120m3/min) 0.665inchH2O 55.0dB(A) 12.00W 4800RPM 3wireleads axial fan
Specifications
| Model | FFB0912EHE-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 92x92x38 mm |
| Power Rating | 12.00 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | FFB |
| Air Flow (m3) | 3.120 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 4800 RPM |
| Fan Type | DC |
| Static Pressure | 0.665 inchH2O (16.90 mmH2O) |
| Noise Level | 55.0 dB(A) |
| Air Flow | 110.18 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 1.00 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | FFB0912EHE-F00-Delta.pdf |
