Description

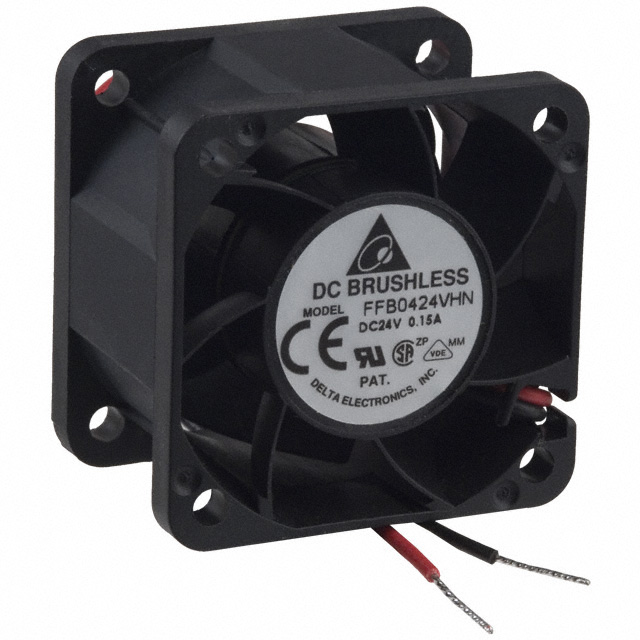

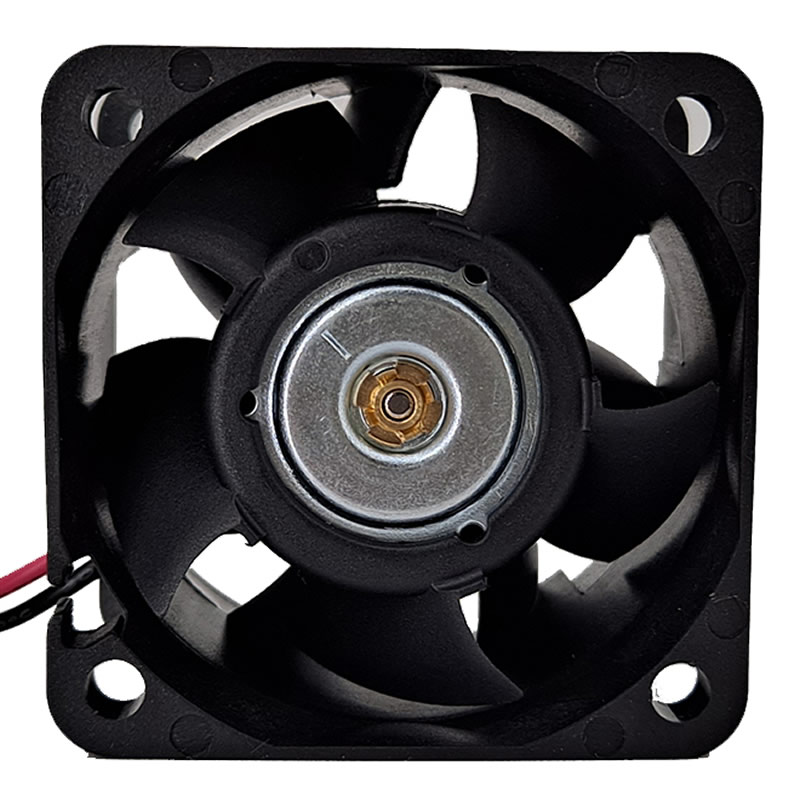

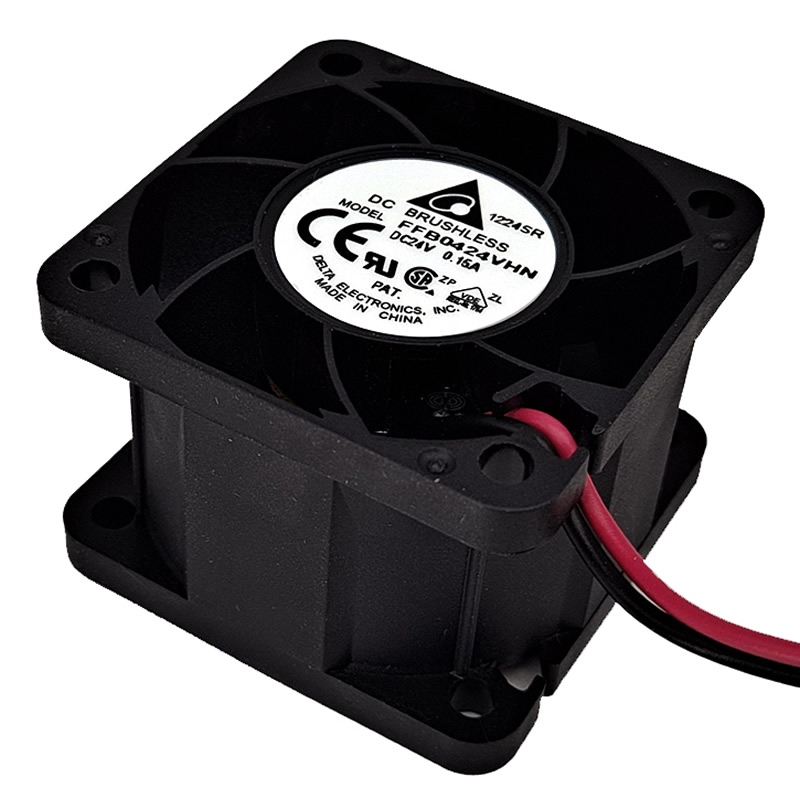

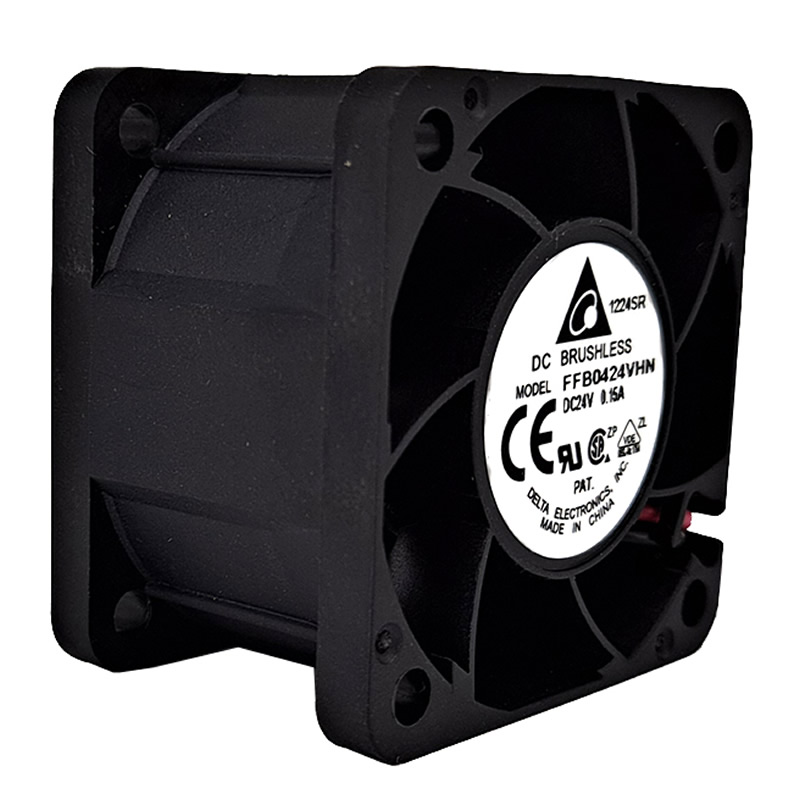

FFB0424VHN Delta 40x40x28mm Ball 24VDC 15.79CFM(0.447m3/min) 0.509inchH2O(12.94mmH2O) 45.0dB(A) 2.40W 9500RPM 2wireleads fan
Specifications
| Part Number | FFB0424VHN |
|---|---|
| Power Rating | 2.40 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | FFB |
| Air Flow (m3) | 0.447 m3/min |
| Dimensions | 40x40x28 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 9500 RPM |
| Fan Type | DC |
| Static Pressure | 0.509 inchH2O (12.94 mmH2O) |
| Noise Level | 45.0 dB(A) |
| Air Flow | 15.79 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.071 lb (32.21 g) |
| Category | Axial |
| Current Rating | 0.10 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0424VHN-Delta.pdf |
