Description

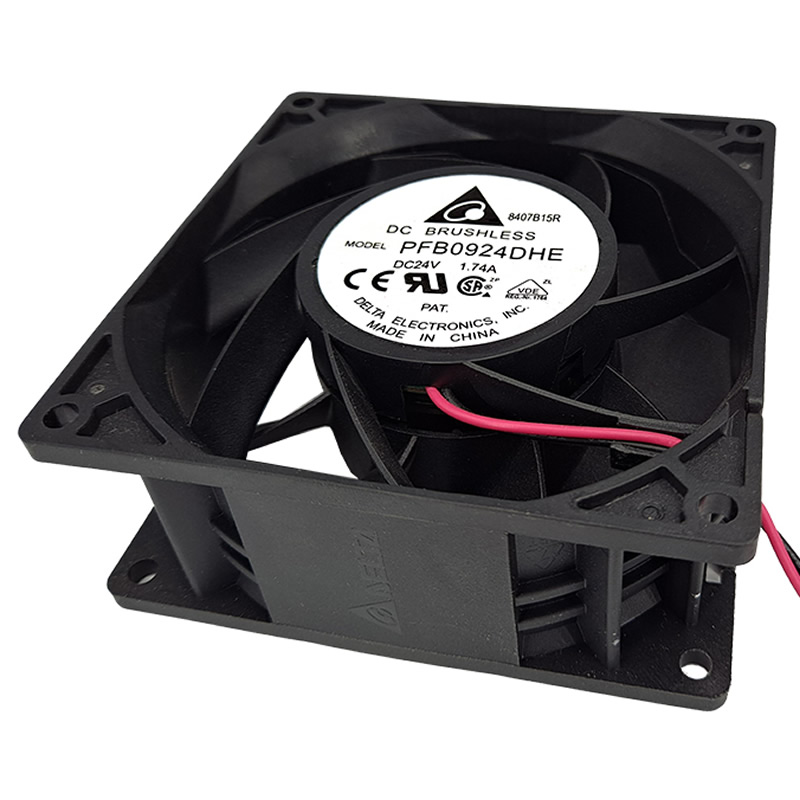

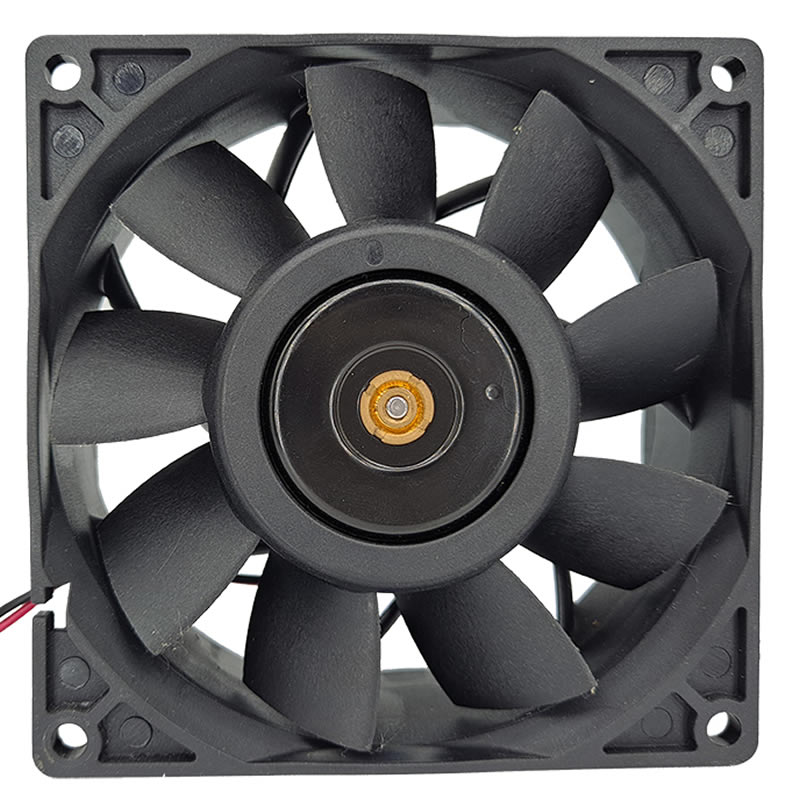

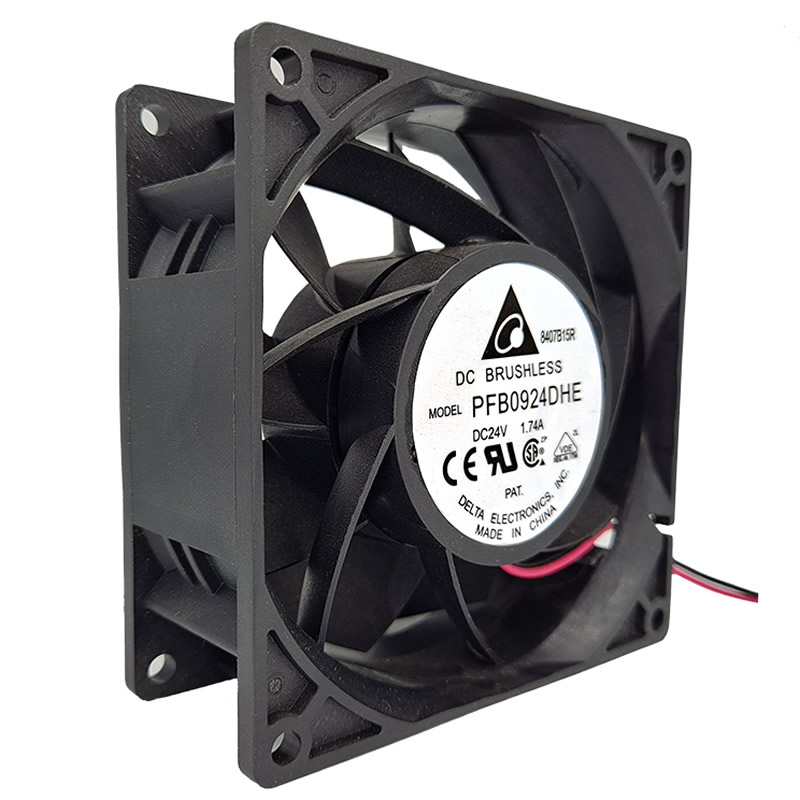

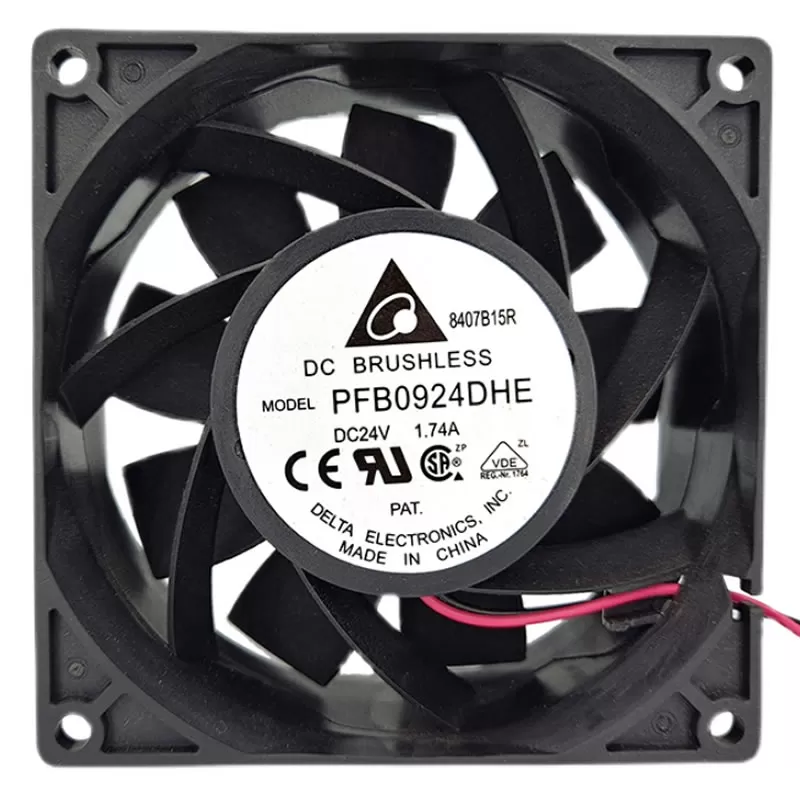

PFB0924DHE Delta 92x92x38mm Ball 24VDC 175.03CFM(4.957m3/min) 1.819inchH2O(46.21mmH2O) 66.5dB(A) 34.80W 8000RPM 2-wire leads fan
PFB0924DH DC brushless axial flow fan from Delta Electronics features a rated voltage of 24VDC and an operation voltage range of 14.0-26.4VDC. With an input current of 1.45A (1.74A max.) and power of 34.8W (41.76W max.), it runs at 8000 RPM. The maximum air flow is 4.957M³/MIN (4.461 min.), maximum air pressure is 46.21mmH₂O (37.43 min.), and average acoustical noise is 66.5dB-A (71.5 max.). Constructed with UL94V-0 plastic frame and impeller, two ball bearings, it weighs 250g and rotates clockwise when viewed from the nameplate side. Lead wires are UL1007-F-AWG#24 (red for positive, black for negative). Operating at 10-60℃ and storing at -40-70℃, it offers a 50,000-hour life expectancy under 40℃ with 15-65% RH, integrated with locked rotor and polarity protection. Free of ozone-depleting substances (PBBs, CFCs, etc.), manufacturing locations include China, Thailand, or Taiwan.
Specifications
| Part Number | PFB0924DHE |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 92x92x38 mm |
| Power Rating | 34.80 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | PFB |
| Air Flow (m3) | 4.957 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 8000 RPM |
| Fan Type | DC |
| Static Pressure | 1.819 inchH2O (46.21 mmH2O) |
| Noise Level | 66.5 dB(A) |
| Air Flow | 175.03 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.553 lb (250.84 g) |
| Category | Axial |
| Current Rating | 1.45 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
