Description

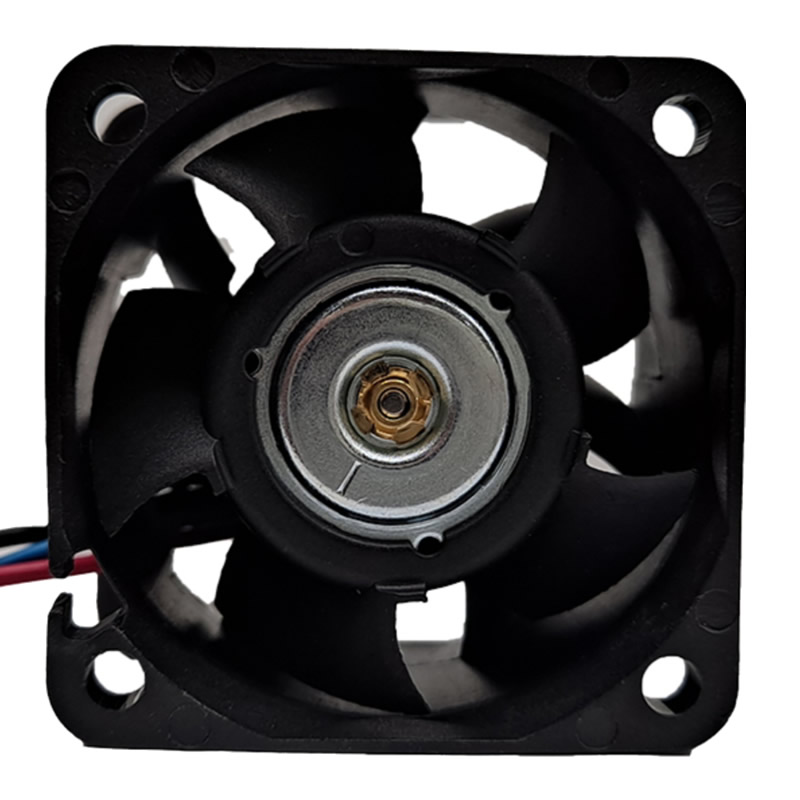

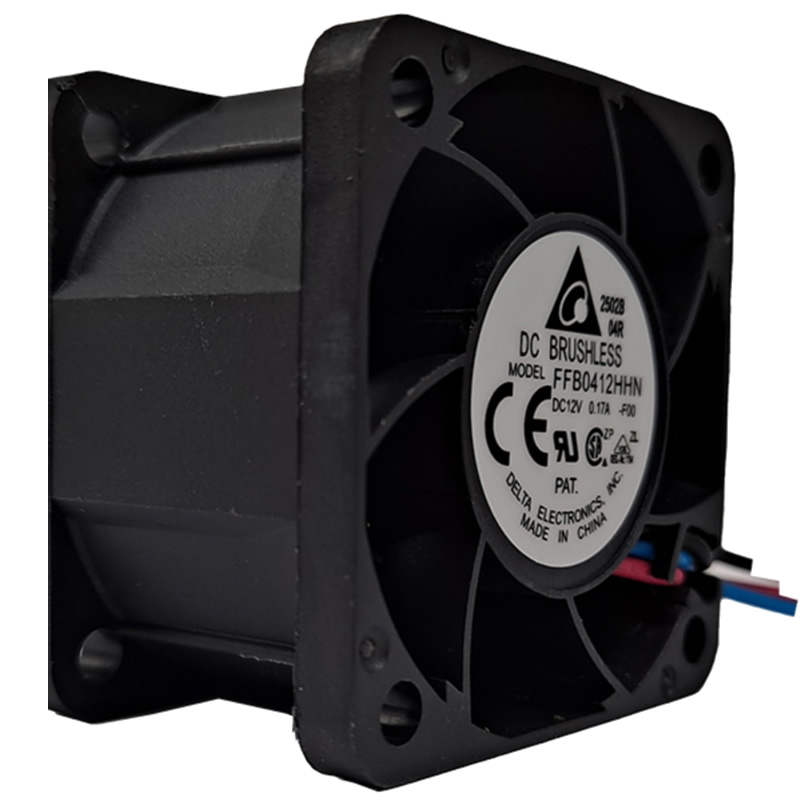

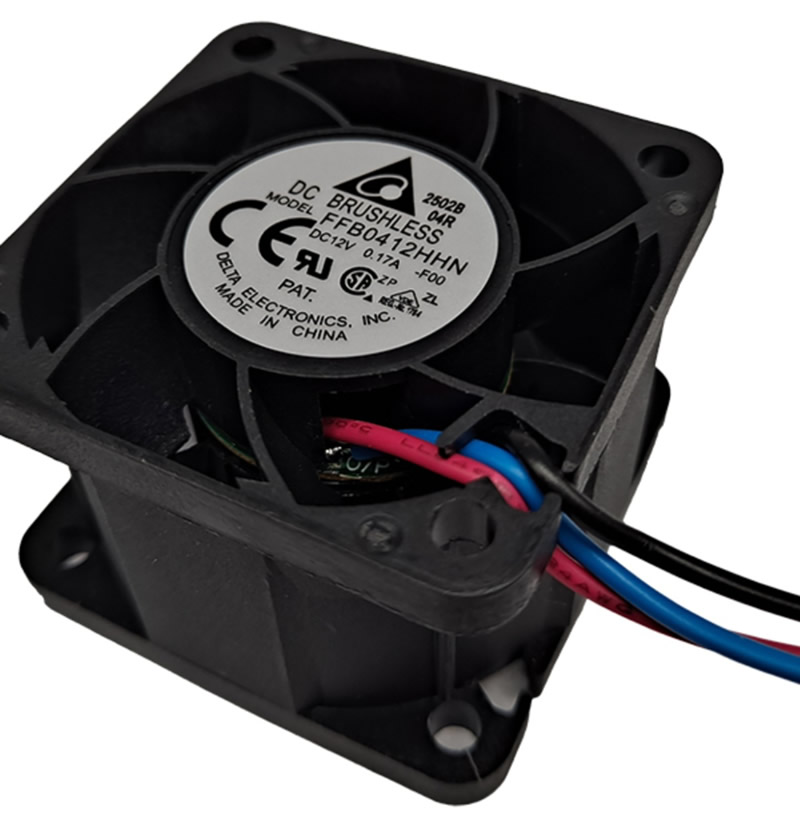

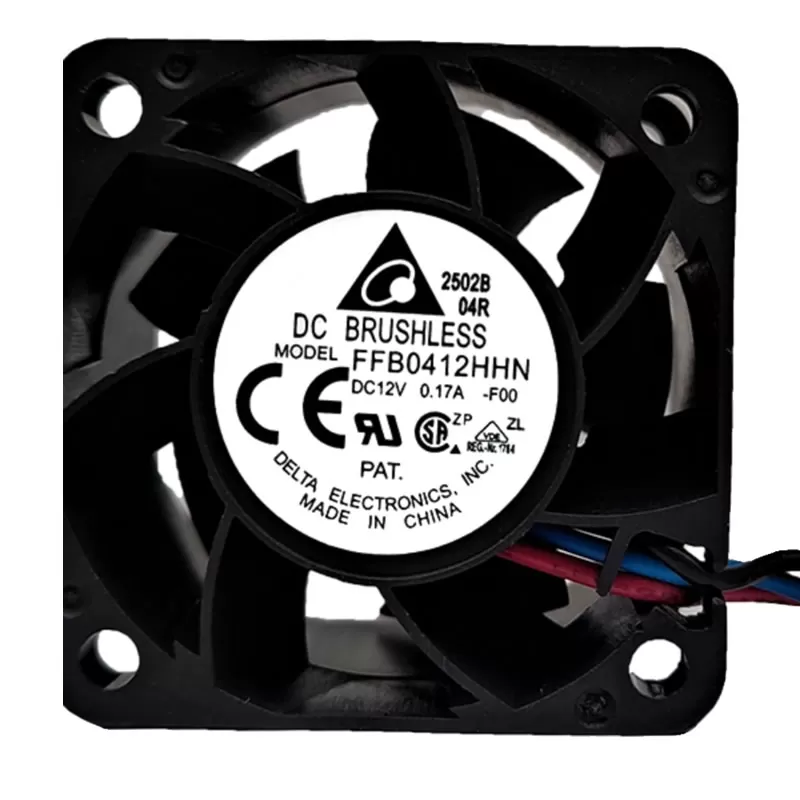

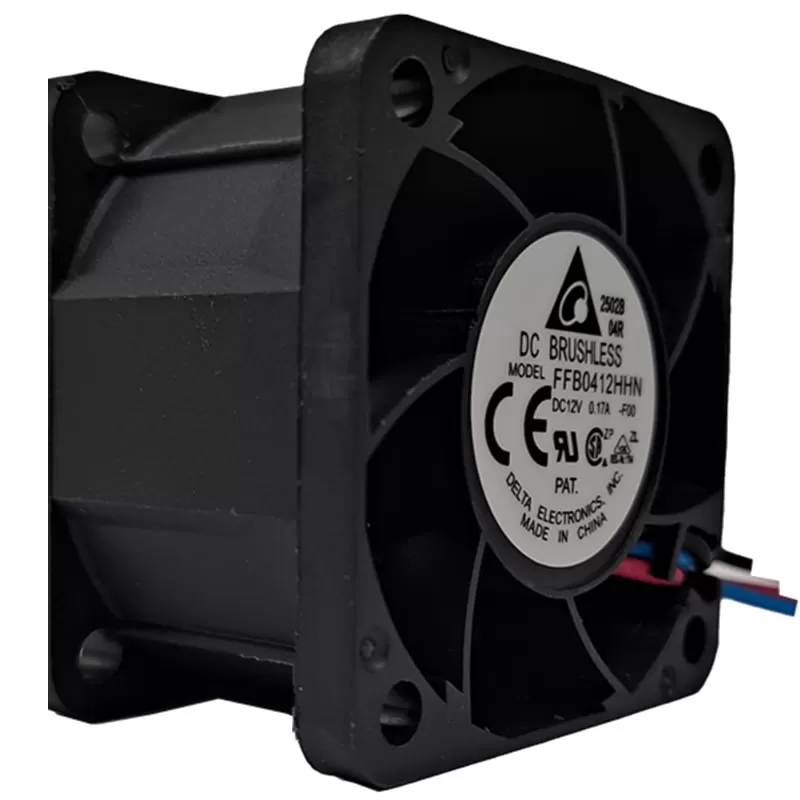

FFB0412HHN-F00 Delta 40x40x28mm Ball 12VDC 13.24CFM(0.375m3/min) 0.370inchH2O(9.39mmH2O) 41.0dB(A) 1.32W 8000RPM 3wireleads
Specifications
| Part Number | FFB0412HHN-F00 |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | FFB |
| Air Flow (m3) | 0.375 m3/min |
| Dimensions | 40x40x28 mm |
| Termination | 3 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 8000 RPM |
| Power Rating | 1.32 W |
| Noise Level | 41.0 dB(A) |
| Static Pressure | 0.370 inchH2O (9.39 mmH2O) |
| Air Flow | 13.24 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.071 lb (32.21 g) |
| Category | Axial |
| Current Rating | 0.11 A |
| Operating Voltage | 4.5 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0412HHN-F00-Delta.pdf |
