Description

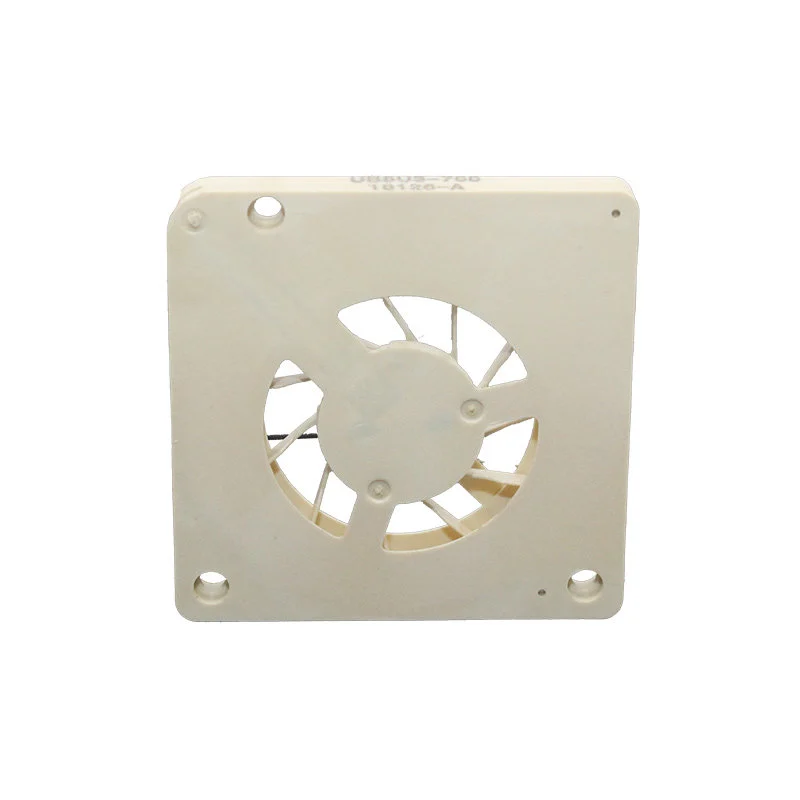

The SUNON UB5U3-700 is an ultra-compact MagLev mini DC blower engineered for high-density, space-constrained industrial electronics. Measuring 30 x 30 x 3 mm (1.18 x 1.18 x 0.12 inches) with a lightweight 2.4 g (0.005 lbs) profile, this unit is constructed with a flame-retardant UL 94V-0 LCP frame and impeller. Powered by SUNON’s Vapo bearing and MagLev motor system, it delivers targeted static pressure while maintaining IP55 ingress protection with CE and UKCA safety approvals.
Key Features
- Ultra-thin 30 x 30 x 3 mm (1.18 x 1.18 x 0.12 inches) form factor constructed from flame-retardant UL 94V-0 thermoplastic LCP.
- MagLev motor system with a Vapo bearing architecture ensures friction-reduced 9500 RPM counter-clockwise rotation.
- Generates 88.18 Pa (0.354 inH2O) static pressure and 18.0 l/min (0.635 CFM) air volume at a low 0.36 W power draw.
- IP55 ingress protection rating paired with flexible UL10064, 32 AWG lead wires (+Red, -Black) for reliable connectivity.
- Integrated safety features include automatic motor shutdown with 10-second auto-restart for locked rotors and polarity protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | SUNON |
| Model / MPN | UB5U3-700 |
| Fan Type | Miniature DC Blower / MagLev Blower |
| Motor Technology | MagLev Motor System |
| Dimensions (L x W x H) | 30 x 30 x 3 mm (1.18 x 1.18 x 0.12 inches) |
| Frame Material | Thermoplastic LCP (UL 94V-0) |
| Impeller Material | Thermoplastic LCP (UL 94V-0) |
| Lead Wire Specification | UL10064, 32 AWG (+RED, -BLACK) |
| Rated Voltage | 5 VDC |
| Operating Voltage Range | 2.0 ~ 6.0 VDC |
| Starting Voltage | 2.0 VDC (at 25°C Power ON/OFF) |
| Rated Current | 72 mA |
| Rated Power | 0.36 W |
| Rated Speed | 9500 RPM ± 20% |
| Air Delivery | 18.0 l/min (0.635 CFM) |
| Static Pressure | 88.18 Pa (0.354 inH2O) |
| Noise Level (at 1M) | 25.6 dB(A) |
| Noise Level (at 0.3M) | 36.0 dB(A) |
| Direction of Rotation | Counter-clockwise (viewed from front of fan blade) |
| Bearing System | Vapo bearing system |
| Operating Temperature | -10°C to +70°C (14°F to 158°F) |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Ingress Protection | IP55 |
| Safety Approvals | CE / UKCA |
| Motor Protection | Automatic Restart (within 10s), Polarity Protection |
| Weight | 2.4 g (0.005 lbs) |
Applications
- Targeted thermal dissipation in micro-sensors, handheld testing equipment, and portable medical devices.
- Cooling modules in AR/VR headsets, smart wearables, and miniaturized consumer electronics.
- Air circulation within compact IoT enclosures and high-density optical assemblies.
Frequently Asked Questions & Technical Support
What structural materials are used in the SUNON UB5U3-700?
The frame and impeller of the SUNON UB5U3-700 are constructed from UL 94V-0 rated thermoplastic LCP. Electrical connections are established via UL10064, 32 AWG lead wires designated as +RED and -BLACK.
What is the airflow performance and size of the UB5U3-700 mini blower?
The UB5U3-700 measures 30 x 30 x 3 mm (1.18 x 1.18 x 0.12 inches) and weighs 2.4 g (0.005 lbs). At its nominal 5 VDC rating, it operates at 9500 RPM to deliver 18.0 l/min (0.635 CFM) of air and 88.18 Pa (0.354 inH2O) static pressure.
Does the UB5U3-700 include motor protection and IP rating certifications?
Yes, the SUNON UB5U3-700 features certified IP55 ingress protection against dust and water. It includes integrated polarity protection and an automatic restart mechanism that powers down the motor during rotor lock before attempting a restart within 10 seconds.
How can engineers obtain 3D CAD models or submit a bulk RFQ for the UB5U3-700?
Procurement engineers can request STEP/IGES 3D CAD files, official P-Q performance curves, or submit a bulk RFQ by contacting our technical support team with the exact UB5U3-700 MPN and estimated project volume requirements.
Specifications
| Part Number | UB5U3-700 |
|---|---|
| Manufacturer | Sunon Fans |
| Dimensions | 30X30X3 mm |
| Bearing Type | Vapo Bearing |
| Voltage Rating | 5 VDC |
| Power Current | 72 mA |
| Power Rating | 0.36 W |
| Fan Speed | 9500 RPM |
| Air Flow (l/min) | 18.0 l/min |
| Static Pressure | 88.18 Pa |
| Noise (dBA) | 36.0/30cm dB(A) |
| IP Rating | IP55 |
| Fan Type | DC |
| Series | MagLev® UB, Mighty Mini |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE |
| Weight | 0.005 lb (2.27 g) |
| Fan Size | 30 x 30 x 3 mm |
| Voltage Rated | 5 VDC |
| Cooling Type | Blower |
| Air Flow Range | < 50 CFM ( < 85 m³/h ) |
| Static Pressure Range | 50 – 120 mmH₂O ( 500 – 1200 Pa ) |
| Fan Speed Range | 8,000 – 15,000 RPM |
| Noise | 30 – 45 dB(A) (Standard) |
| Shipping Weight | 0.25 kg |
