Description

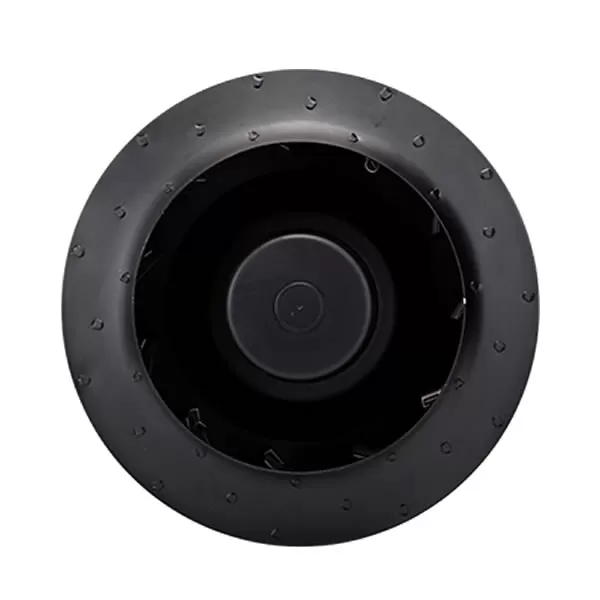

DD892848Z1E Comair Rotron 19041015A 227x71mm 48VDC 2.60A 124.8W 3500RPM 750CFM 1274.3m³/h 78.7dB(A) Ball 3.22inH2O 802Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD892848Z1E |
|---|---|
| Air Flow | 750 CFM |
| Weight | 1600 g |
| Manufacturer | Comair Rotron |
| Series | DD8928 |
| Dimensions | 227×71 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 72VDC |
| Current Rating | 2.60 A |
| Power Rating | 124.8 W |
| Fan Speed | 3500 RPM |
| Air Flow (m3) | 1274.3 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19041015A |
| Noise Level | 78.7 dB(A) |
| Static Pressure | 3.22 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 48000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 802 Pa |
| Product PDF | DD892848Z1E-Comair-Rotron.pdf |
