Description

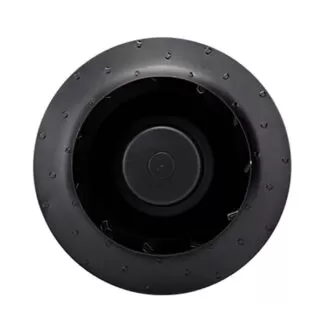

DD892848B1A Comair Rotron 19039865A 227x71mm 48VDC 1.40A 67.2W 2600RPM 500CFM 849.5m³/h 72.5dB(A) Ball 1.70inH2O 423Pa 3 Wire Leads Impeller fan
Specifications
| Model Number | DD892848B1A |
|---|---|
| Air Flow | 500 CFM |
| Weight | 1600 g |
| Manufacturer | Comair Rotron |
| Series | DD8928 |
| Dimensions | 227×71 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 72VDC |
| Current Rating | 1.40 A |
| Power Rating | 67.2 W |
| Fan Speed | 2600 RPM |
| Air Flow (m3) | 849.5 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039865A |
| Noise Level | 72.5 dB(A) |
| Static Pressure | 1.70 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 48000 Hrs @ 40°C |
| Propeller | Metal, Plated |
| Venturi | Die Cast Aluminum |
| Termination | 3 Wire Leads |
| Category | Impeller |
| Static Pressure Pa | 423 Pa |
| Product PDF | DD892848B1A-Comair-Rotron.pdf |
