Description
D2E160-AB01-06 ebmpapst 160mm 230VAC 1.8A 410W 1850RPM IP20 64dB(A) AC centrifugal fan

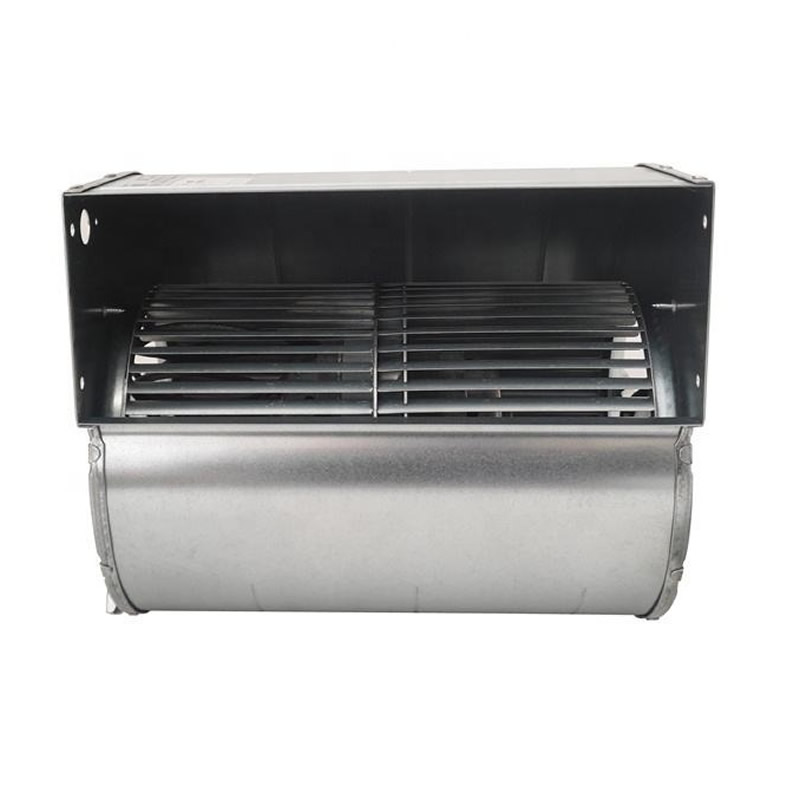

The ebm-papst D2E160-AB01-06 is a dual-inlet, forward-curved blade centrifugal fan operating at 230V AC, 50Hz with 410W power consumption. Its 1850 min⁻¹ speed provides high airflow of 703.35 CFM (1175 m³/h) with a noise level of 64 dB(A). The fan features IP20 protection and Class F insulation, along with integrated motor thermal protection.
Specifications
| Part Number | D2E160-AB01-06 |
|---|---|
| Manufacturer | ebm-papst |
| Fan Type | AC |
| Bearing Type | Ball Bearing |
| Dimensions | 160 mm |
| Voltage Rating | 230 VAC |
| Current Rating | 1.8 A |
| Power Rating | 410 W |
| Motor | M2E074-FA |
| Fan Speed | 1850 RPM |
| IP Rating | IP20 |
| Operating Temperature | -40 ~ 176°F (-40 ~ 80°C) |
| Noise Level | 64 dB(A) |
| Subcategory | AC centrifugal fan |
