Description

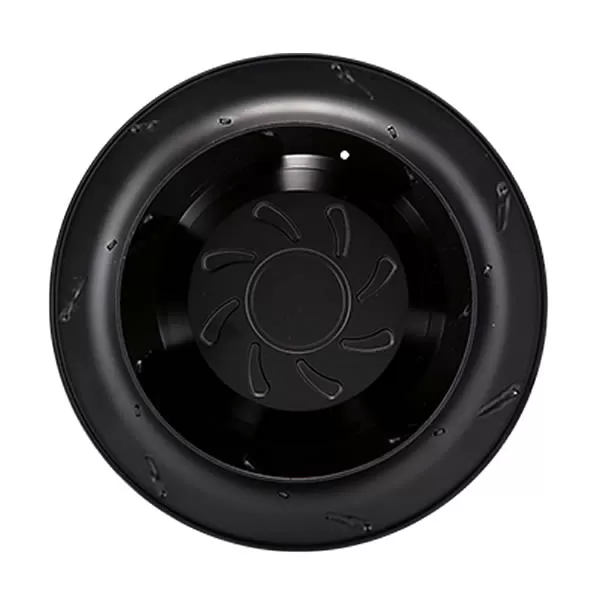

CRKU190A-E24 Comair Rotron 17002099A 190×68.5mm 24VDC 3.333A 80W 3200RPM 335.1CFM 570m³/h 74dB(A) Ball 2.54inH2O 633Pa Cable Impeller fan
Specifications
| Model Number | CRKU190A-E24 |
|---|---|
| Air Flow | 335.1 CFM |
| Weight | 1200 g |
| Manufacturer | Comair Rotron |
| Series | CRKU190A |
| Dimensions | 190×68.5 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 21.6-26.4VDC |
| Current Rating | 3.333 A |
| Power Rating | 80 W |
| Fan Speed | 3200 RPM |
| Air Flow (m3) | 570 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002099A |
| Noise Level | 74 dB(A) |
| Static Pressure | 2.54 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 55000 Hrs @ 40°C |
| Propeller | Die Cast magnesium alloy,ED coating and powder coating |
| Venturi | Die Cast Aluminum |
| Termination | Cable |
| Category | Impeller |
| Static Pressure Pa | 633 Pa |
| Product PDF | CRKU190A-E24-Comair-Rotron.pdf |
