Description

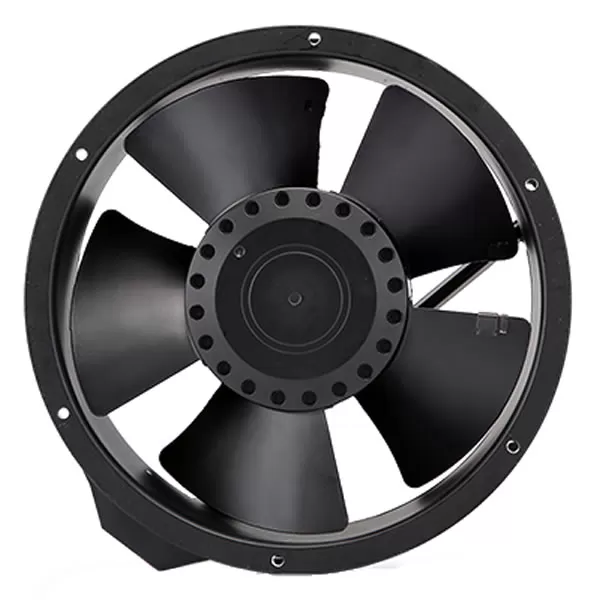

CR2208DC48V Comair Rotron 17002082A 222x80mm 48VDC 1.40A 58W 3000RPM 569.3CFM 967.8m³/h 73dB(A) Ball 0.79inH2O 196Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | CR2208DC48V |
|---|---|
| Air Flow | 569.3 CFM |
| Weight | 1260 g |
| Manufacturer | Comair Rotron |
| Series | CR2208 DC |
| Dimensions | 222×80 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 43.2-52.8VDC |
| Current Rating | 1.40 A |
| Power Rating | 58 W |
| Fan Speed | 3000 RPM |
| Air Flow (m3) | 967.8 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17002082A |
| Noise Level | 73 dB(A) |
| Static Pressure | 0.79 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Propeller | Die Cast magnesium alloy, ED coating and powder coating |
| Venturi | Die Cast magnesium alloy, ED coating and powder coating |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 196 Pa |
| Product PDF | CR2208DC48V-Comair-Rotron.pdf |
