Description

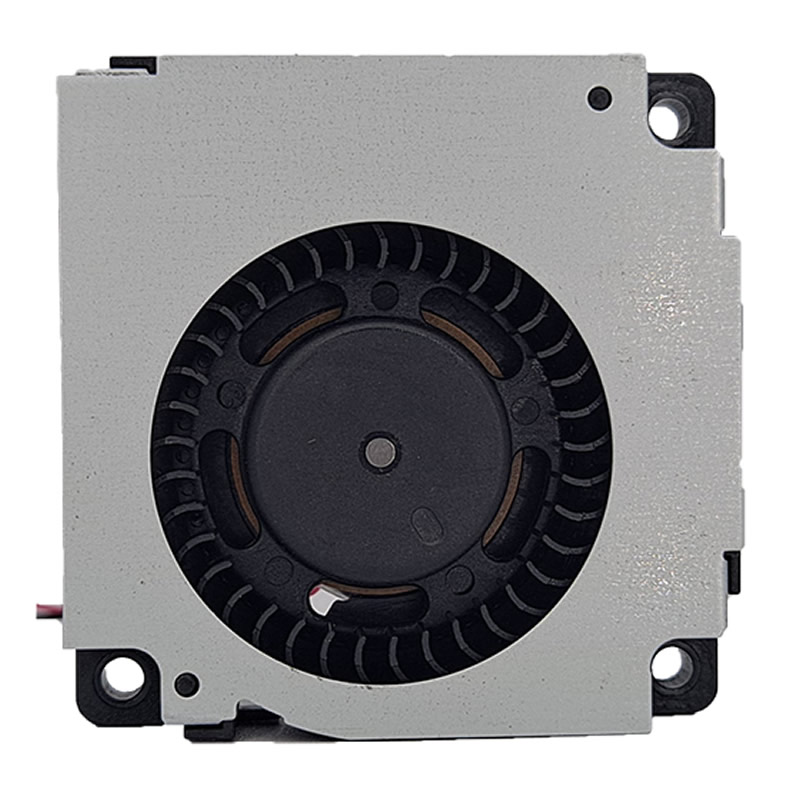

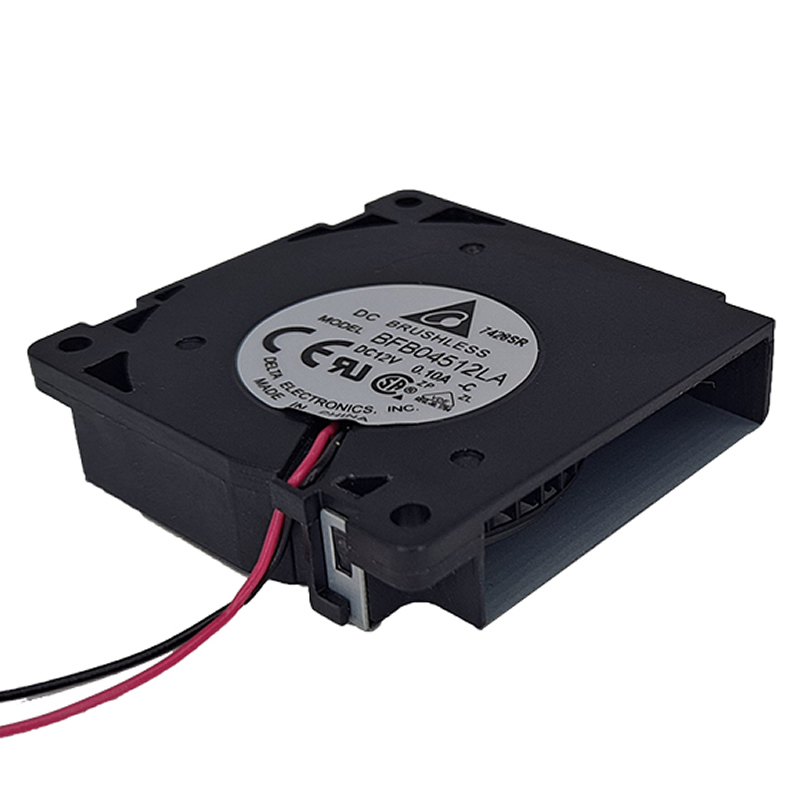

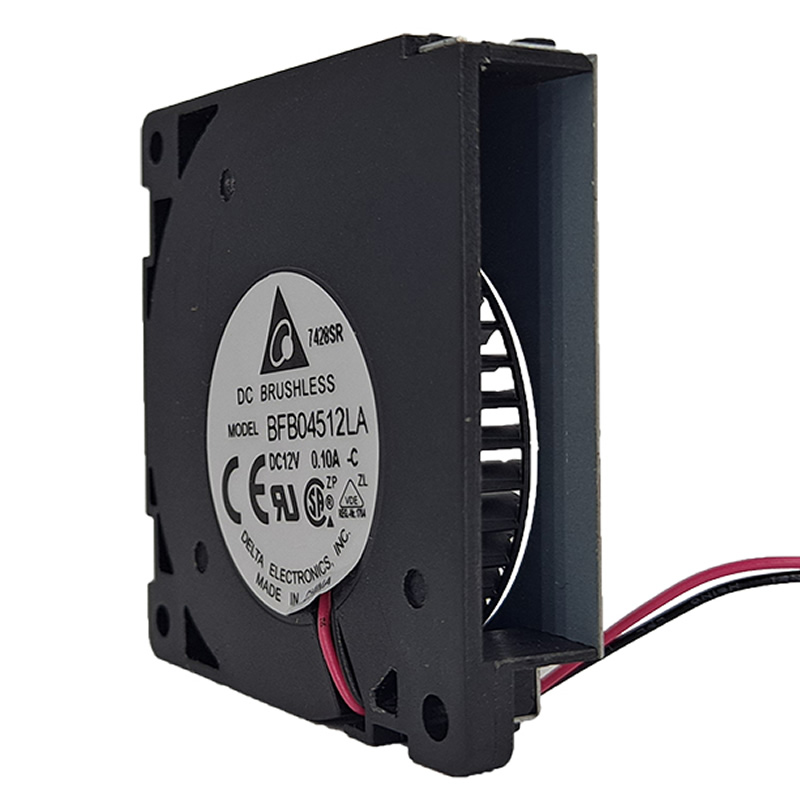

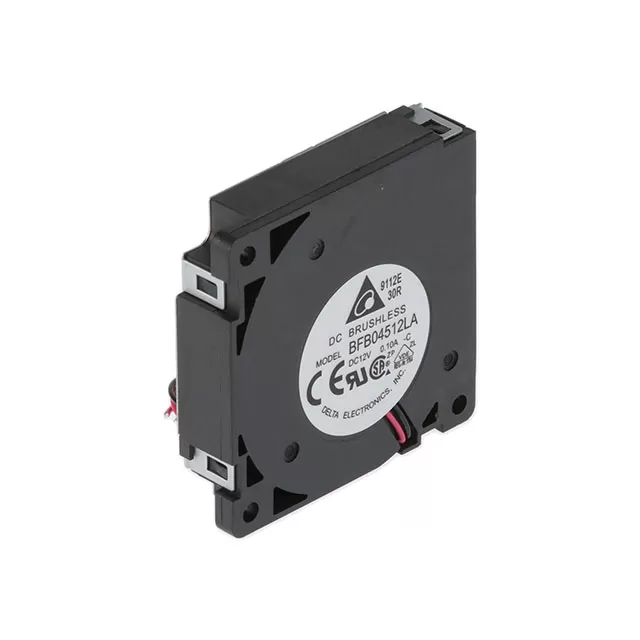

BFB04512LA-C Delta 12VDC 45x45x10.30mm 2CFM 0.212inH2O(52.8Pa) Ball 21.5dB(A) 600mW 3900RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | BFB04512LA-C |
|---|---|
| Manufacturer | Delta Electronics |
| Series | BFB |
| Voltage Rating | 12 VDC |
| Dimensions | 45x45x10.30 mm |
| Air Flow | 2 CFM |
| Air Flow (m3) | 0.056 m³/min |
| Static Pressure | 0.212 in H2O (52.8 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection |
| Noise Level | 21.5 dB(A) |
| Power Rating | 600 mW |
| Fan Speed | 3900 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.04 lb (18.14 g) |
| Shipping Weight | 0.125 kg |
| Product PDF | BFB04512LA-C-Delta.pdf |
