Description
AFB0405VHA-A Delta 40x40x10mm Ball 5VDC 9.25CFM(0.262m3/min) 0.242inchH2O(6.16mmH2O) 35.5dB(A) 0.55W 8000RPM 2wireleads fan.

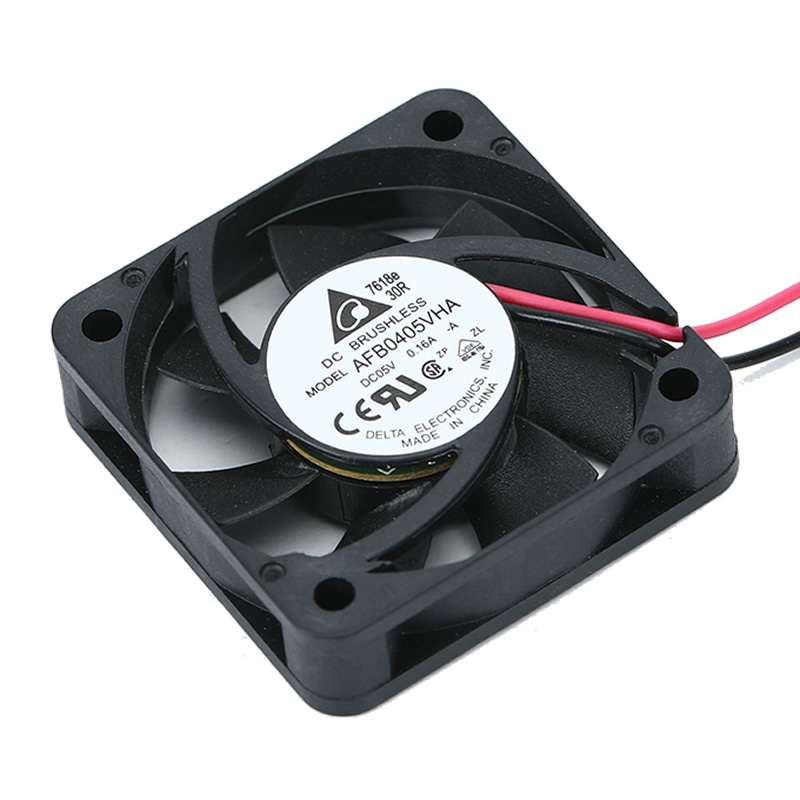

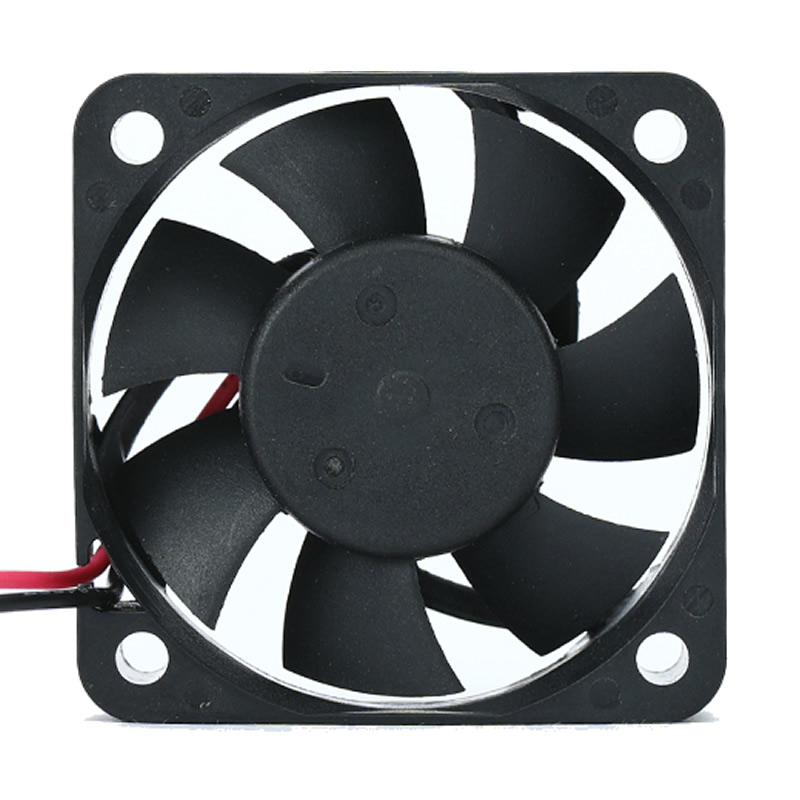

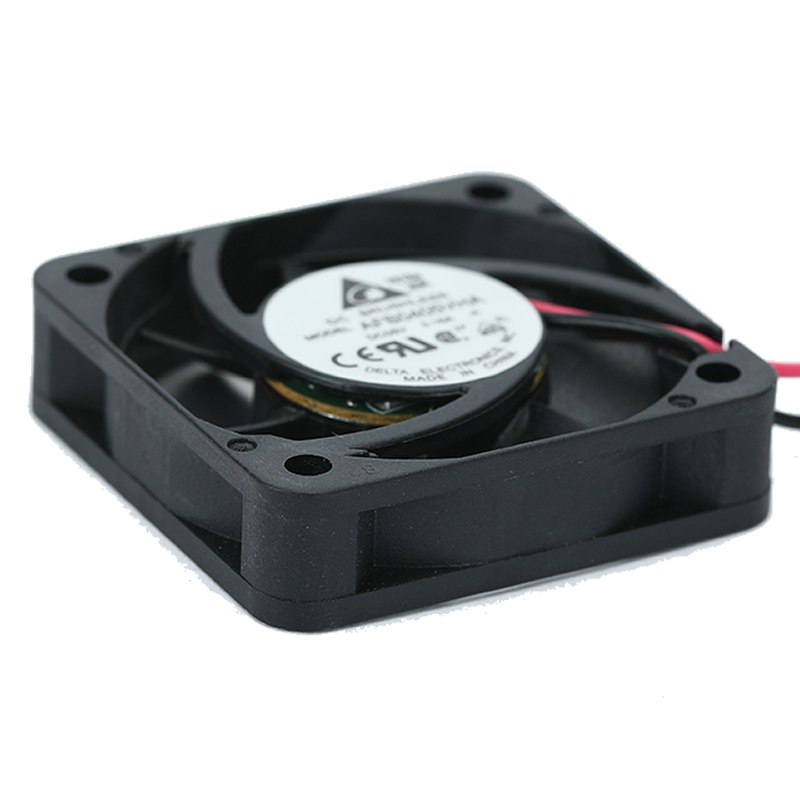

The Delta Electronics AFB0405VHA-A is a compact and efficient DC axial fan designed for cooling in space-constrained environments like electrical cabinets, server racks, factory automation equipment, and telecommunications devices. Measuring 40x40x10 mm, it operates at 5V DC, consuming only 0.55W with a current draw of 0.11A. This fan delivers a strong airflow of 9.25 CFM at 8000 RPM while maintaining a quiet noise level of 35.5 dB(A). Its ball bearing design ensures a long lifespan of 70,000 hours at 40°C, and it includes locked rotor protection for added safety. Constructed with flame-retardant plastic for both frame and blades, it meets CE, CSA, UL, and VDE safety standards, making it a reliable and eco-friendly choice for global applications.
Specifications
| Part Number | AFB0405VHA-A |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.262 m3/min |
| Dimensions | 40x40x10 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 8000 RPM |
| Power Rating | 0.55 W |
| Noise Level | 35.5 dB(A) |
| Static Pressure | 0.242 inchH2O (6.16 mmH2O) |
| Air Flow | 9.25 CFM |
| Voltage Rating | 5 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.031 lb (14.06 g) |
| Category | Axial |
| Current Rating | 0.11 A |
| Operating Voltage | 4.5 ~ 5.5 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
