Description

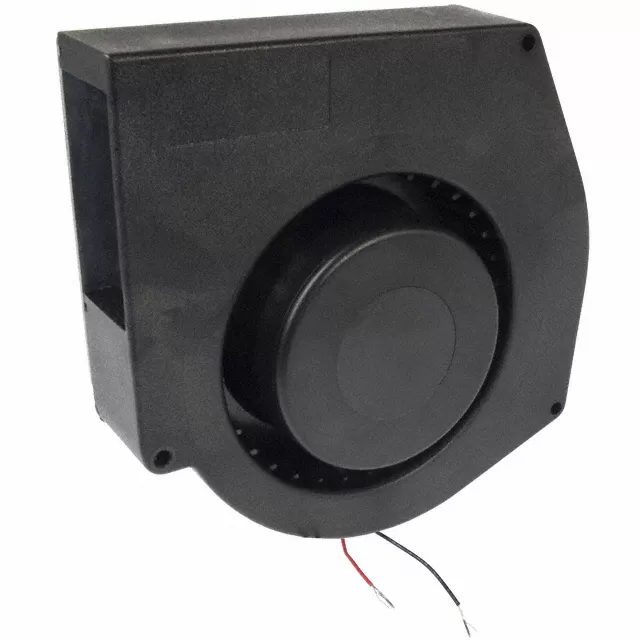

BD48B7 Comair Rotron 19030638A 121x121x31mm 48VDC 0.25A 12W 2950RPM 23.6CFM 40.8m³/h 50.5dB(A) Ball 0.84inH2O 210Pa 3 Wire Leads Blower fan
Specifications
| Model Number | BD48B7 |
|---|---|
| Air Flow | 23.6 CFM |
| Weight | 280 g |
| Manufacturer | Comair Rotron |
| Series | Biscuit DC |
| Dimensions | 121x121x31 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 56VDC |
| Current Rating | 0.25 A |
| Power Rating | 12 W |
| Fan Speed | 2950 RPM |
| Air Flow (m3) | 40.8 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19030638A |
| Noise Level | 50.5 dB(A) |
| Static Pressure | 0.84 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 52000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL94V-0 |
| Venturi | Plastic, Black, UL94V-0 |
| Termination | 3 Wire Leads |
| Category | Blower |
| Static Pressure Pa | 210 Pa |
| Product PDF | BD48B7-Comair-Rotron.pdf |
