Description

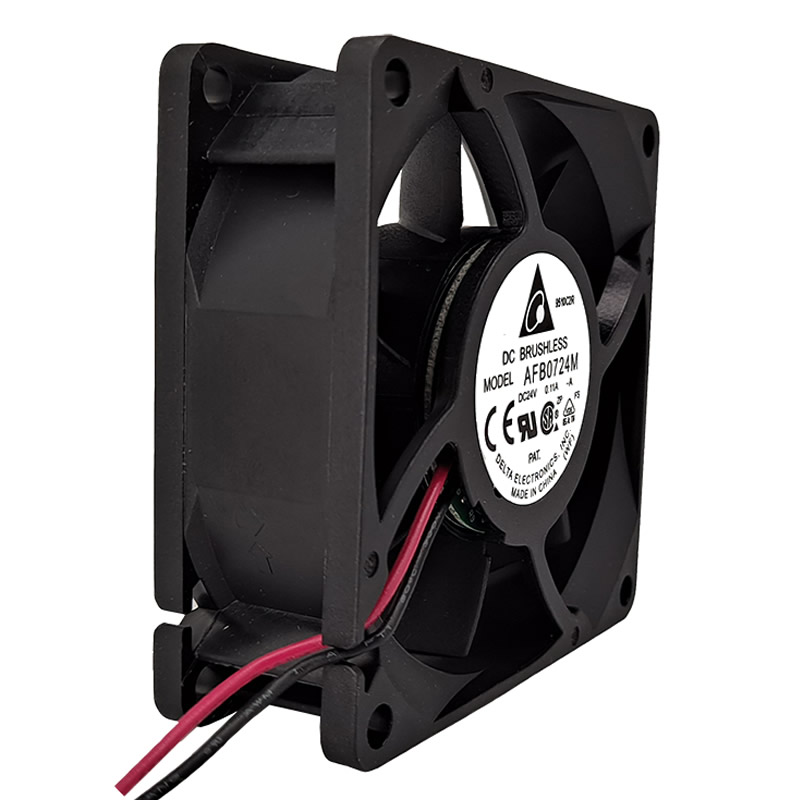

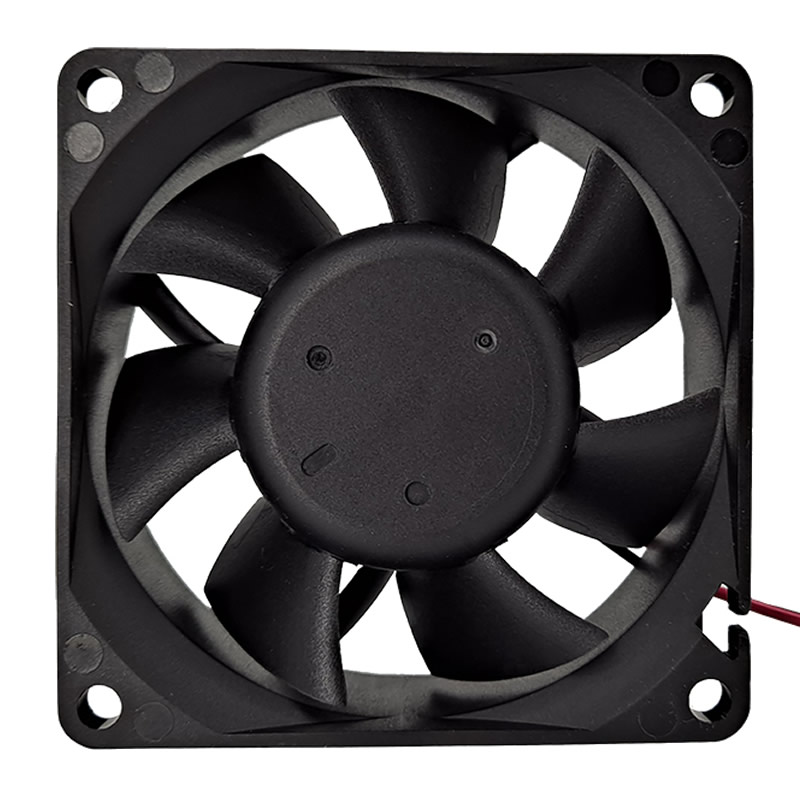

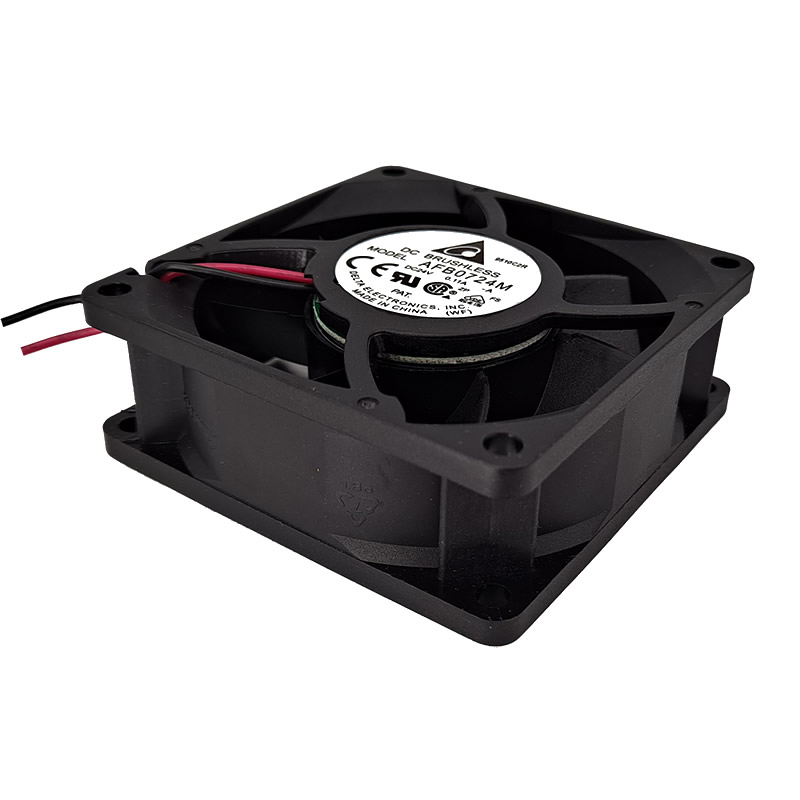

AFB0724M-A Delta 70x70x25.40mm Ball 24VDC 28.85CFM(0.817m3/min) 0.139inchH2O(3.55mmH2O) 31.5dB(A) 2.16W 3100RPM 2wireleads fan
Specifications
| Model | AFB0724M-A |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 70x70x25.40 mm |
| Termination | 2 wire leads |
| Bearing Type | Ball Bearing |
| Voltage Rating | 24 VDC |
| Air Flow | 28.85 CFM |
| Static Pressure | 0.139 inchH2O (3.55 mmH2O) |
| Noise Level | 31.5 dB(A) |
| Power Rating | 2.16 W |
| Fan Speed | 3100 RPM |
| Fan Type | DC |
| Air Flow (m3) | 0.817 m3/min |
| Series | AFB |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.199 lb (90.26 g) |
| Category | Axial |
| Current Rating | 0.09 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0724M-A-Delta.pdf |
