Description

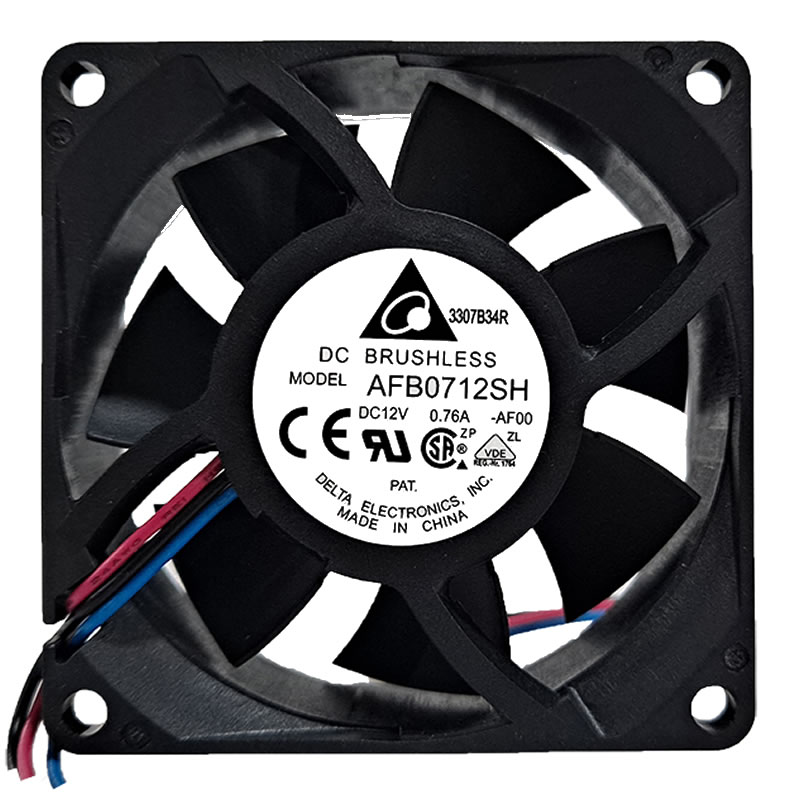

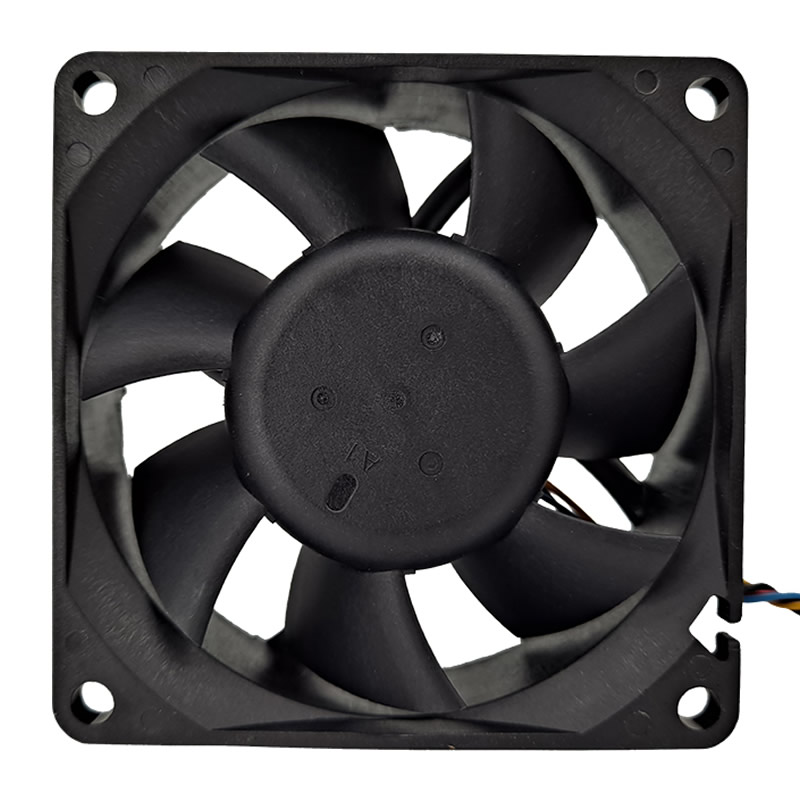

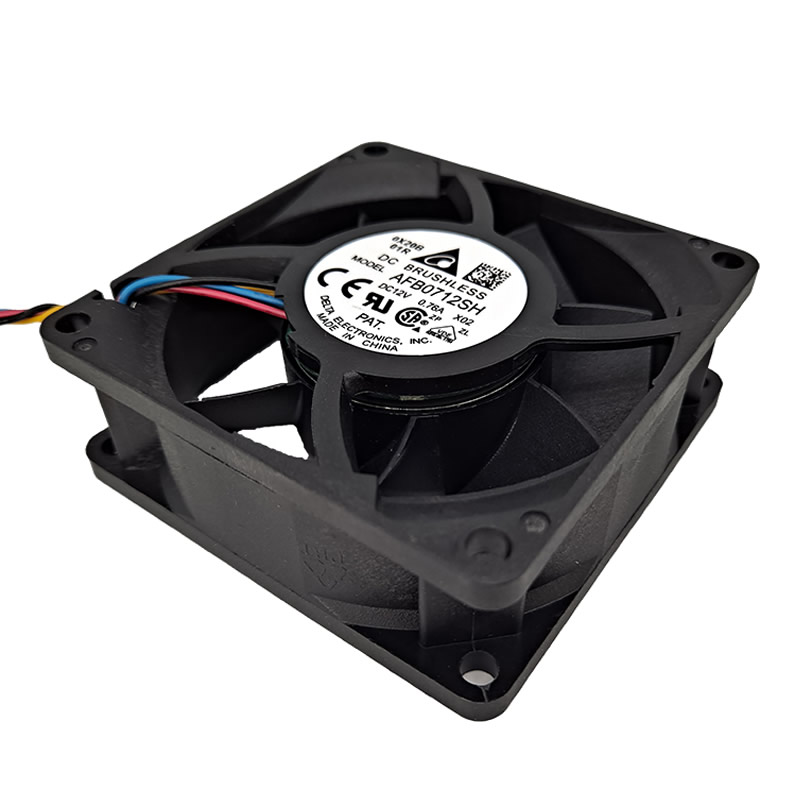

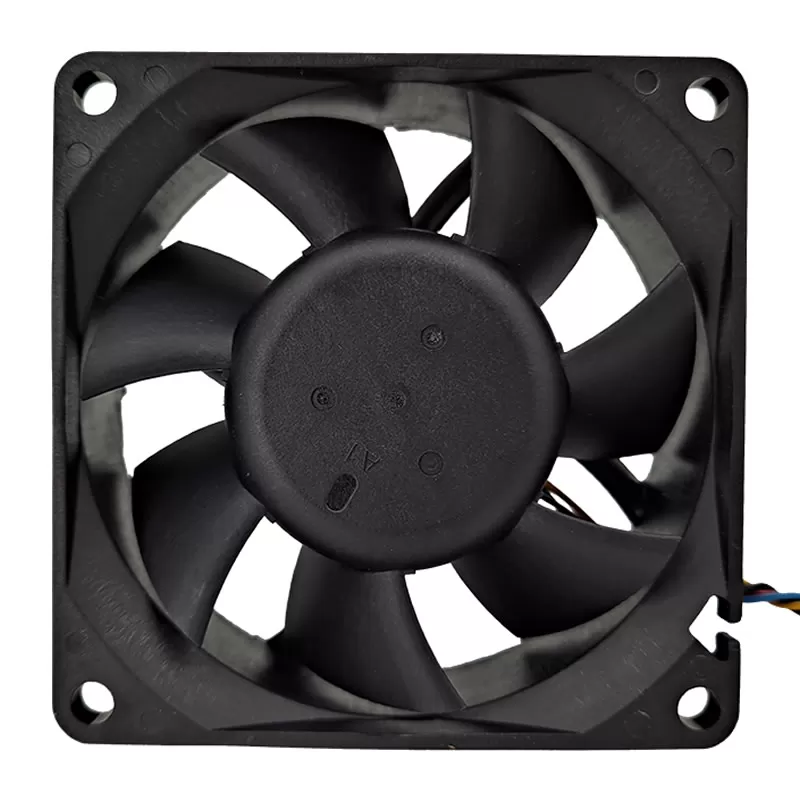

AFB0712SHX02 Delta 70x70x25.40mm Ball 12VDC 61.05CFM(1.729m3/min) 0.625inchH2O(15.90mmH2O) 50.5dB(A) 7.80W 6300RPM 4 wire leads fan
AFB0712SH-X02
Specifications
| Part Number | AFB0712SHX02 |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 1.729 m3/min |
| Dimensions | 70x70x25.40 mm |
| Termination | 4 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 6300 RPM |
| Power Rating | 7.80 W |
| Noise Level | 50.5 dB(A) |
| Static Pressure | 0.625 inchH2O (15.90 mmH2O) |
| Air Flow | 61.05 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.199 lb (90.26 g) |
| Category | Axial |
| Current Rating | 0.65 A |
| Operating Voltage | 5 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0712SHX02-Delta.pdf |
