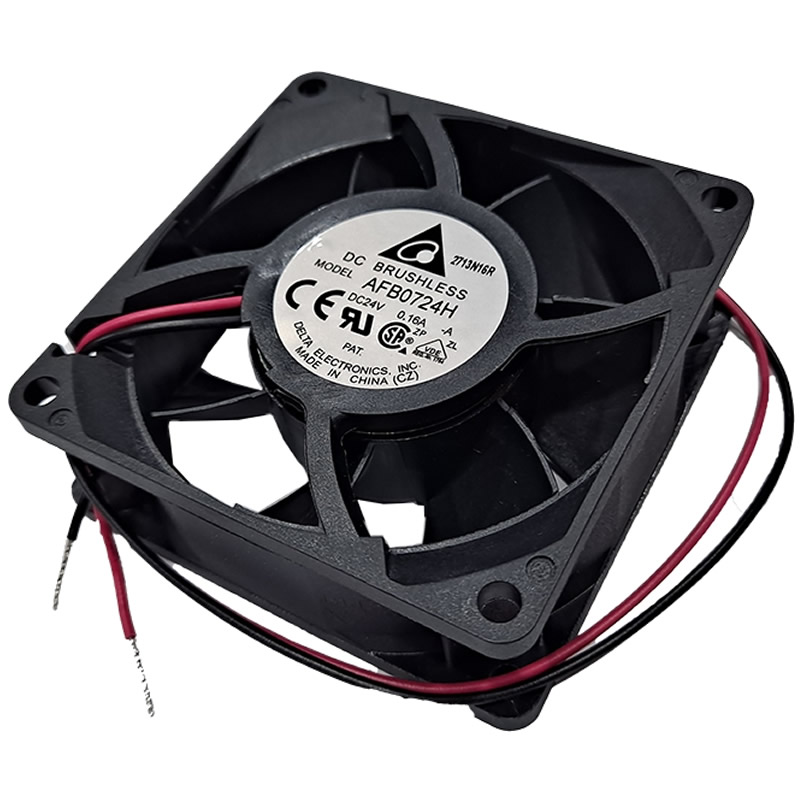

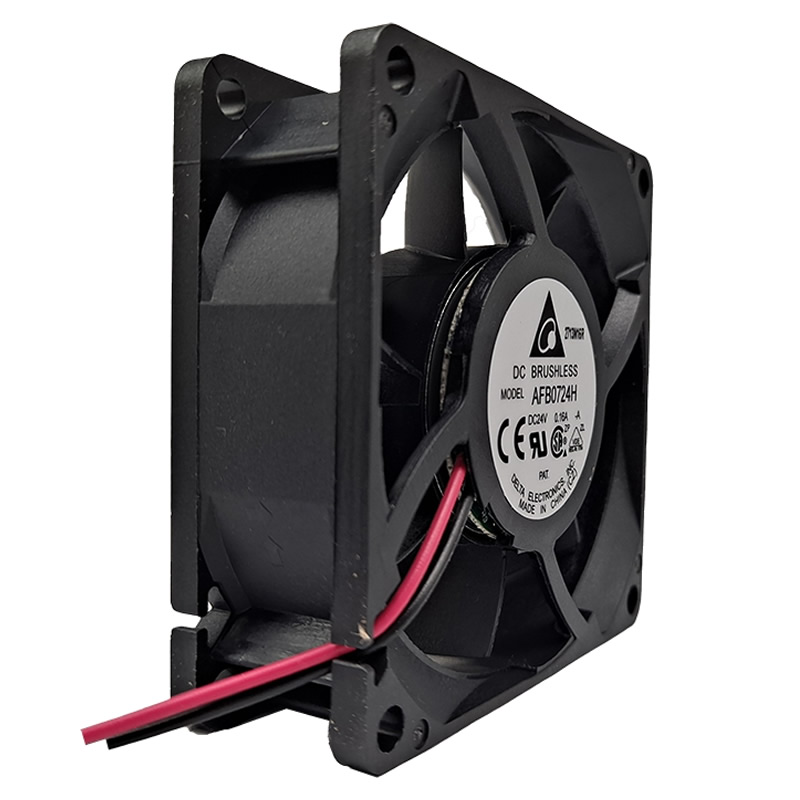

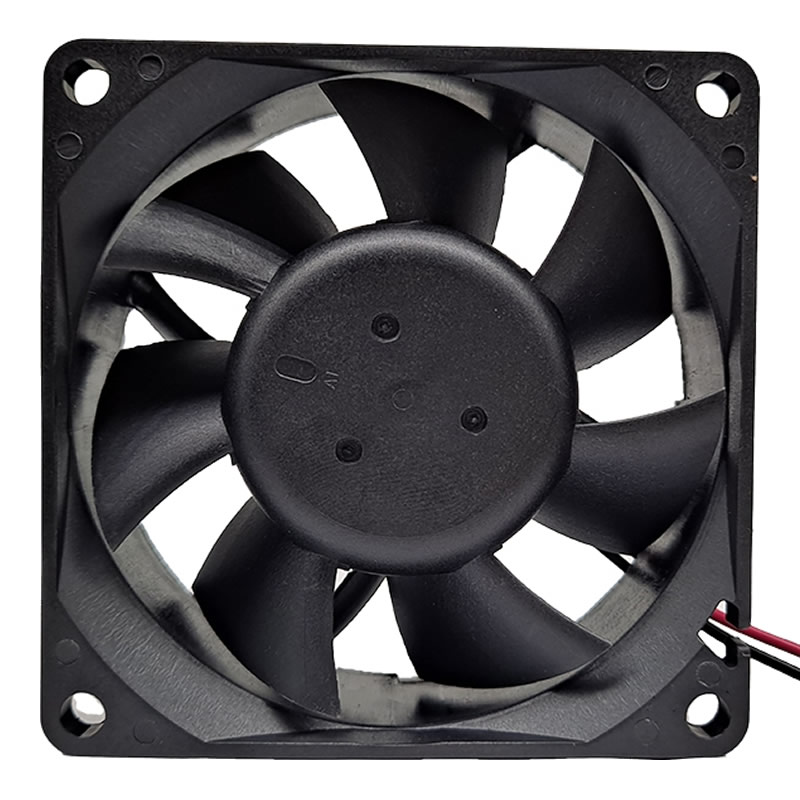

Description
AFB0724H-A Delta 70x70x25.40mm Ball 24VDC 36.30CFM(1.028m3/min) 0.217inchH2O(05.52mmH2O) 37.5dB(A) 3.12W 3900RPM 2wireleads
Specifications
| Part Number | AFB0724H-A |
|---|---|
| Fan Speed | 3900 RPM |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.028 m3/min |
| Dimensions | 70x70x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Noise Level | 37.5 dB(A) |
| Power Rating | 3.12 W |
| Static Pressure | 0.217 inchH2O (05.52 mmH2O) |
| Air Flow | 36.30 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.199 lb (90.26 g) |
| Category | Axial |
| Current Rating | 0.13 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
