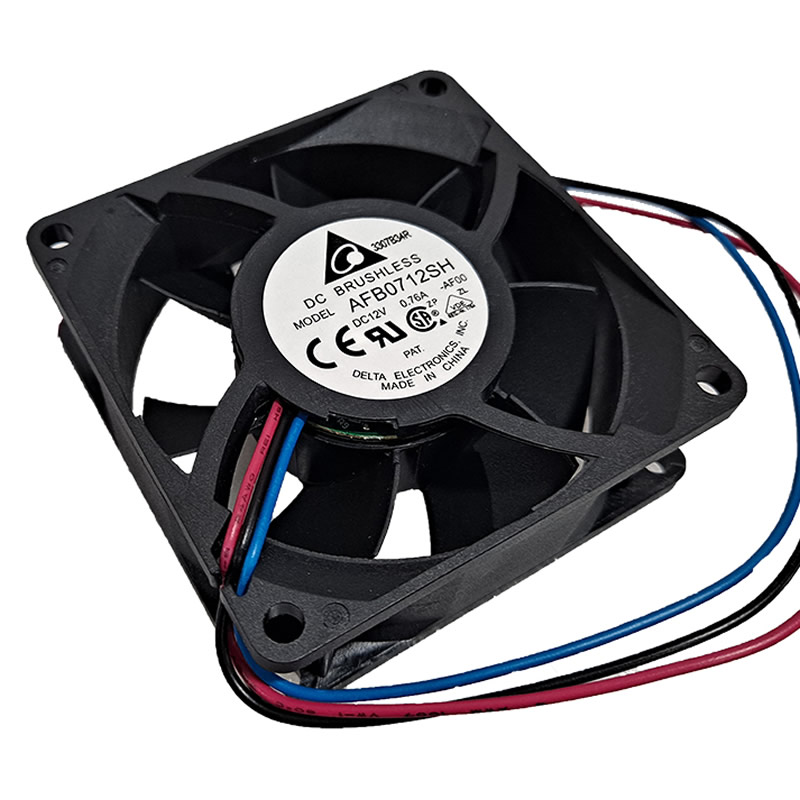

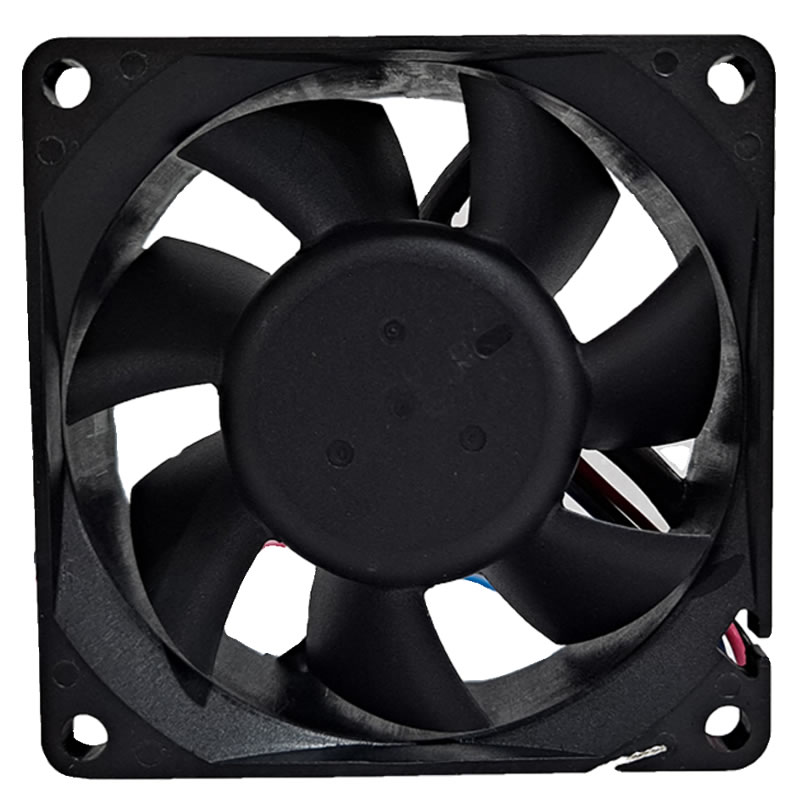

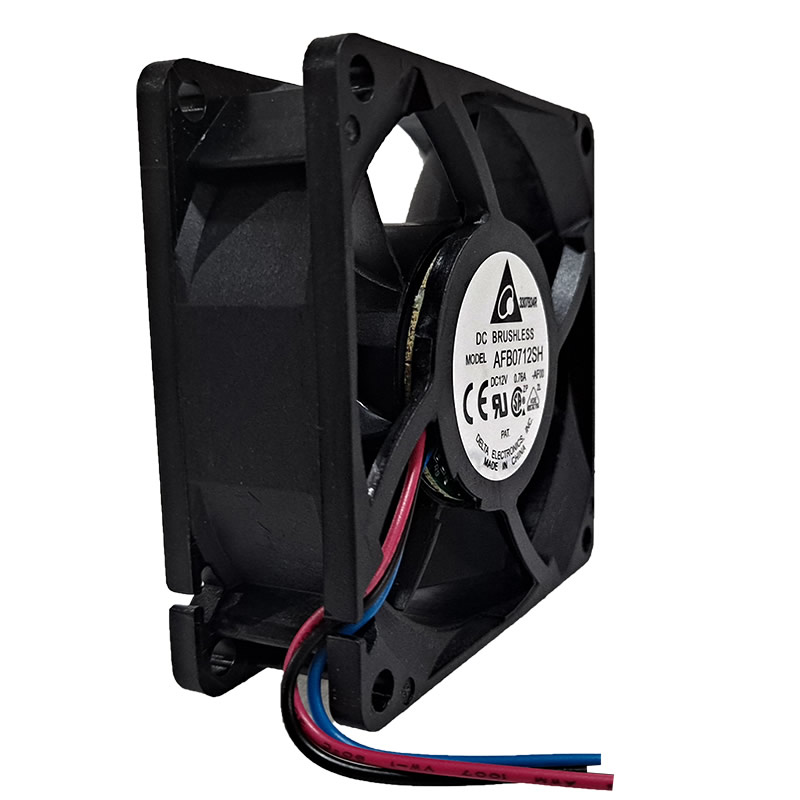

AFB0712SH-AF00 Delta

Description

AFB0712SH-AF00 Delta 70x70x25.40mm Ball 12VDC 61.05CFM(1.729m3/min) 0.625inchH2O(15.90mmH2O) 50.5dB(A) 7.56W 6300RPM 3wireleads fan

This Delta AFB0712SH-AF00 DC brushless axial fan incorporates a two-phase four-pole motor with a 12 VDC rated voltage (5.0–13.8 VDC operational range) and a start voltage ≤5.0 VDC at 25°C. It draws 0.63 A (max. 0.76 A) with 7.56 W (max. 9.12 W) power consumption, rotating at 6300 rpm ±10% to deliver 1.729 m³/min (min. 1.556 m³/min) free-air flow and 15.90 mmH₂O (min. 12.88 mmH₂O) maximum static pressure. Acoustic noise measures 50.5–54.5 dB(A) at 1 m from the intake in an anechoic chamber. Constructed with UL94V-0 plastic frame/impeller and dual ball bearings, it weighs 108 g, operating at 10–70°C (storage -40–75°C) and 5–90% RH, offering 70,000-hour L10 life at 40°C/15–65% RH. Electrical features include impedance-protected locked-rotor shutdown, reverse polarity tolerance, UL Class A insulation (10 MΩ min. at 500 VDC), 500 VAC/1 min dielectric strength, and clockwise rotation (nameplate view). Equipped with UL1007-F AWG24 leads (red+/black-/blue-FG), the FG signal features an open-collector output with Vₚ₉ ≤15 VDC, Iₑ ≤5 mA, and 4-pole frequency (2 pulses/rev). Meeting reliability tests (thermal cycling, humidity, vibration, shock), it contains no ozone-depleting substances, with production in China/Taiwan/Thailand. Dimensions: 70×70×25.4 mm (±0.5 mm), requiring proper polarity, mounting, and environmental protection per application notes.

Specifications
