Description

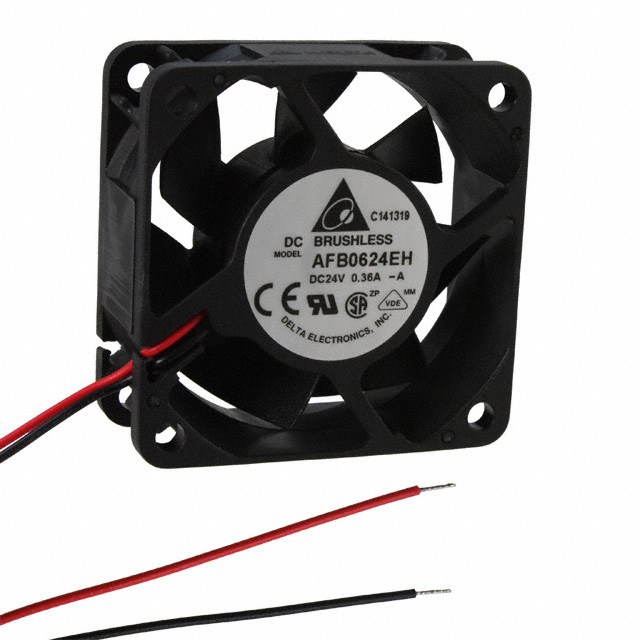

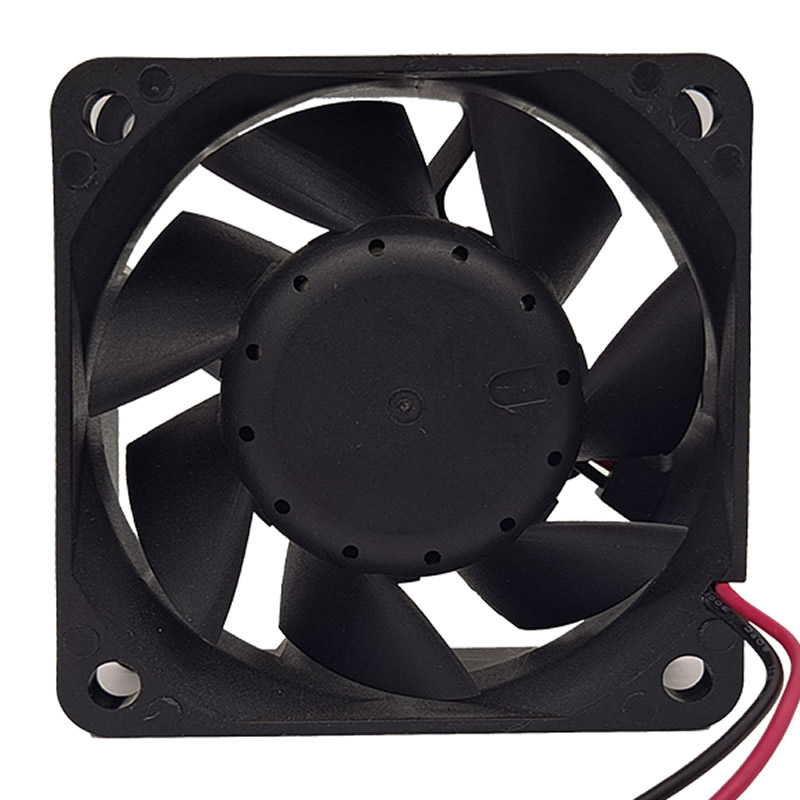

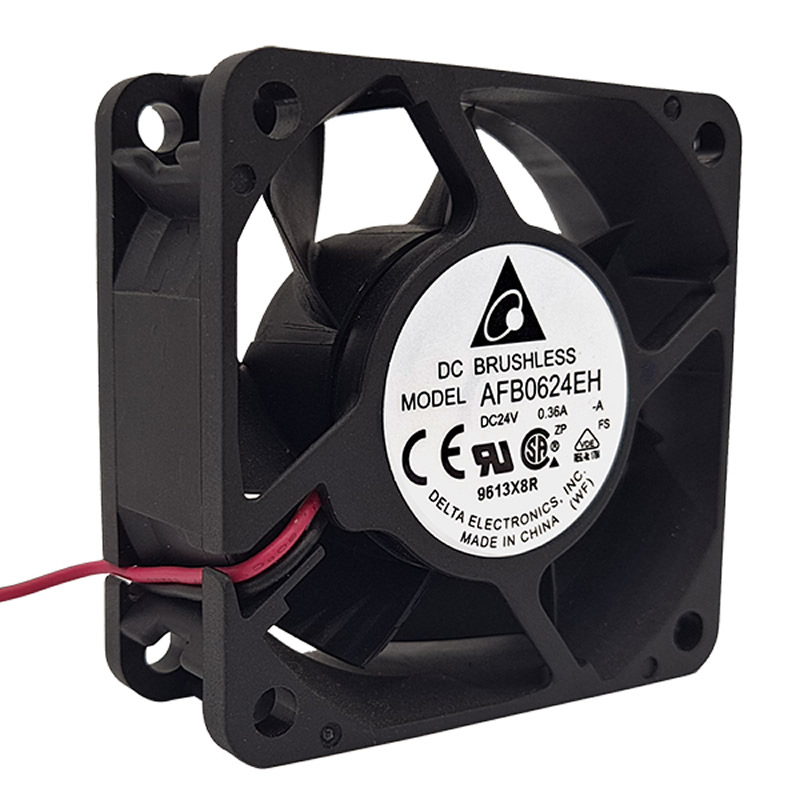

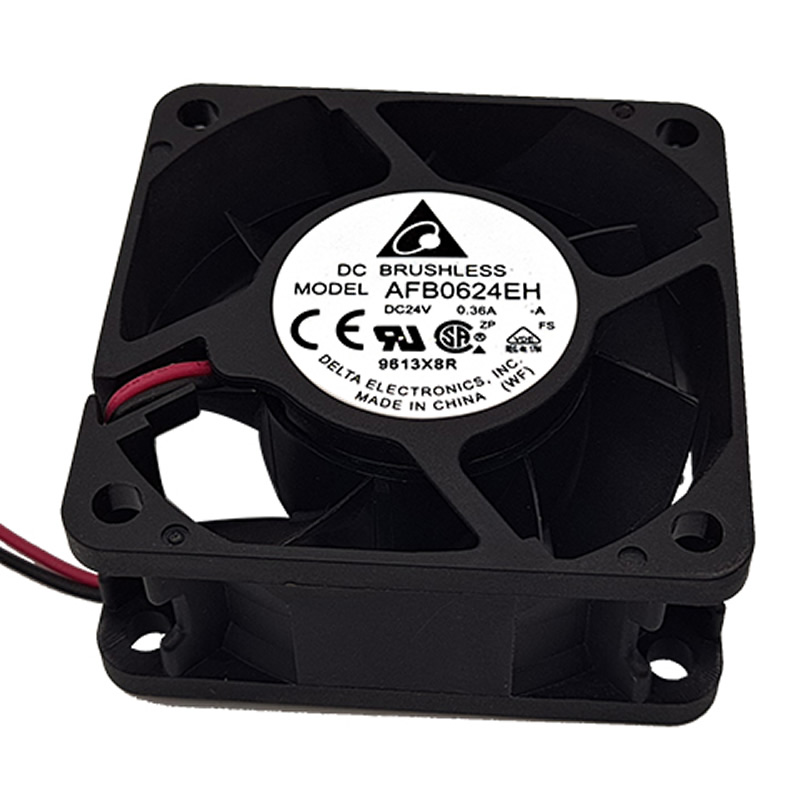

AFB0624EH-A Delta 60x60x25.40mm Ball 24VDC 38.35CFM(1.086m3/min) 0.544inchH2O(13.81mmH2O) 46.5dB(A) 5.76W 6800RPM 2wireleads fan
Specifications
| Part Number | AFB0624EH-A |
|---|---|
| Power Rating | 5.76 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.086 m3/min |
| Dimensions | 60x60x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 6800 RPM |
| Fan Type | DC |
| Static Pressure | 0.544 inchH2O (13.81 mmH2O) |
| Noise Level | 46.5 dB(A) |
| Air Flow | 38.35 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.24 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0624EH-A-Delta.pdf |
