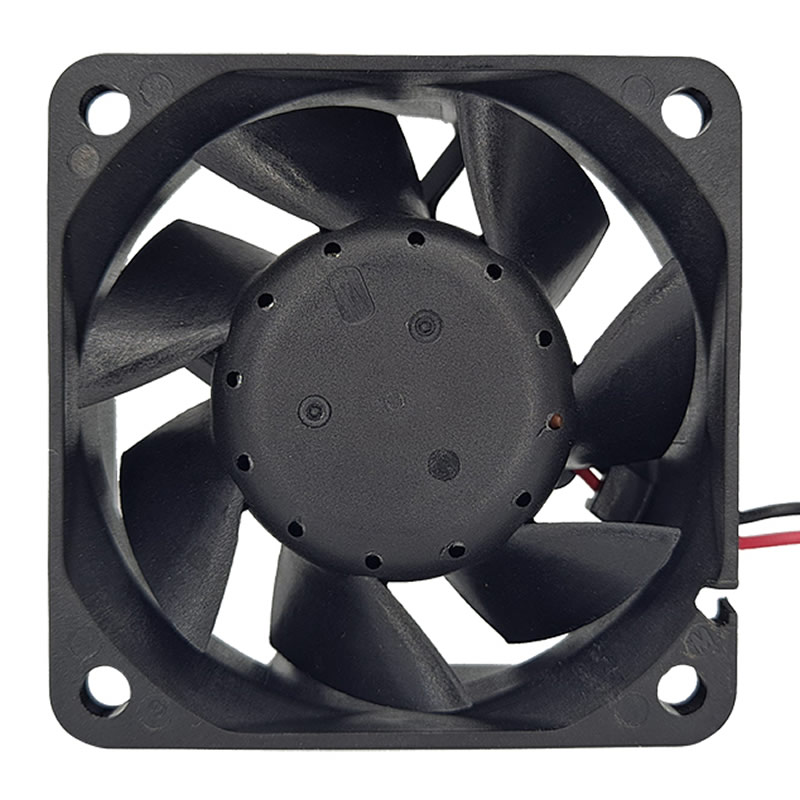

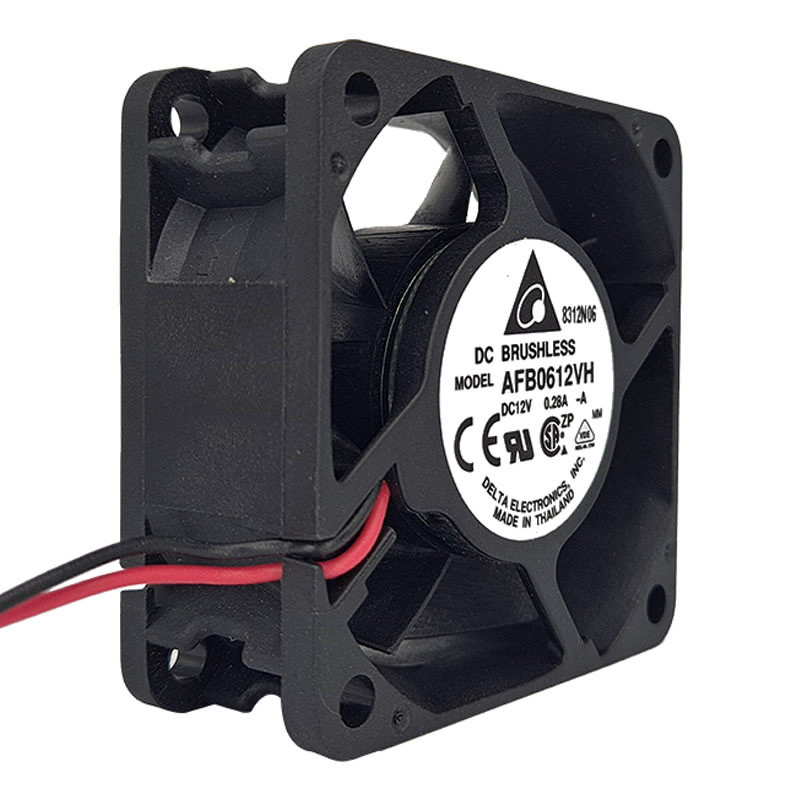

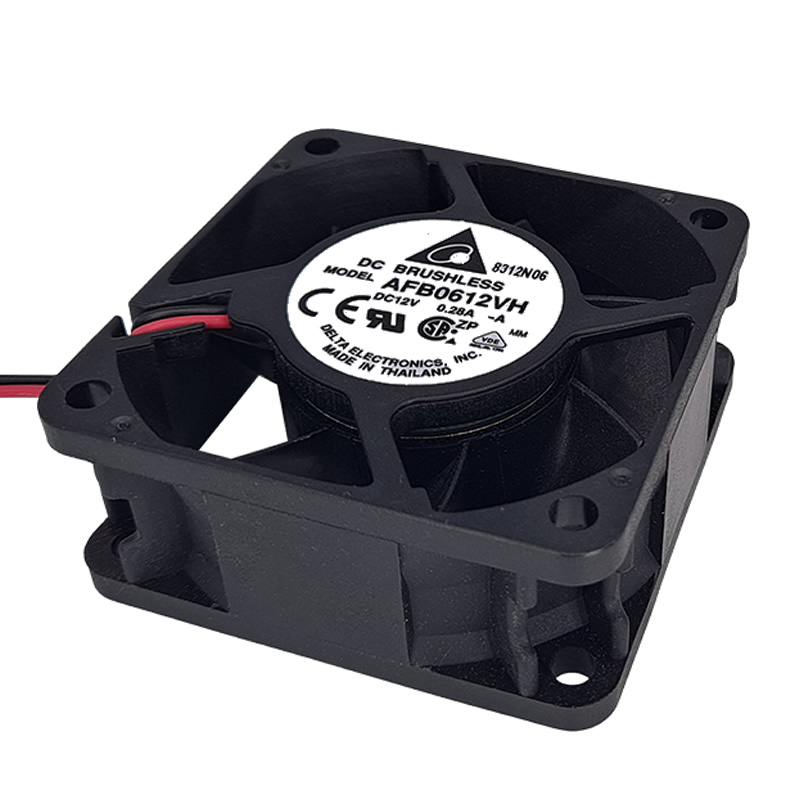

AFB0612VH-A Delta

Description

AFB0612VH-A Delta 60x60x25.40mm Ball 12VDC 30.48CFM(0.863m3/min) 0.345inchH2O(8.76mmH2O) 42.5dB(A) 2.76W 5500RPM 2wireleads fan

This Delta AFB0612VH-A DC brushless axial fan features a two-phase four-pole motor with 12 VDC rated voltage (4.0–13.8 VDC operation range), ≤4.0 VDC start voltage at 25°C, 0.23 A (max. 0.28 A) input current, and 2.76 W (max. 3.36 W) power consumption. Spinning at 5500 rpm, it delivers 0.863 m³/min (min. 0.777 m³/min) free-air flow and 8.76 mmH₂O (min. 7.10 mmH₂O) max static pressure, with 42.5–46.5 dB(A) noise measured 1 m from intake in an anechoic chamber. Constructed with UL94V-0 plastic frame/impeller and dual ball bearings, it weighs 80 g, operates at 10–70°C (storage -40–75°C), 5–90% RH, and offers 70,000-hour L10 life at 40°C/15–65% RH. Electrical features include impedance-protected locked rotor shutdown, reverse polarity tolerance, UL Class A insulation (10 MΩ min. at 500 VDC), 500 VAC/1 min dielectric strength, and clockwise rotation (nameplate view). Fitted with UL1007-F AWG24 leads (red+/black-), it meets ozone-depleting substance restrictions, with production in China/Taiwan/Thailand. Dimensions: 60×60×25.4 mm (±0.5 mm), with P&Q curve and mounting notes emphasizing proper polarity, vibration control, and environmental protection.

Specifications
