Description
AFB0612LC-R00 Delta 60x60x13mm Ball 12VDC 15.40CFM(0.436m3/min) 0.083inchH2O(2.11mmH2O) 24.0dB(A) 0.96W 3000RPM 3-wire leads fan

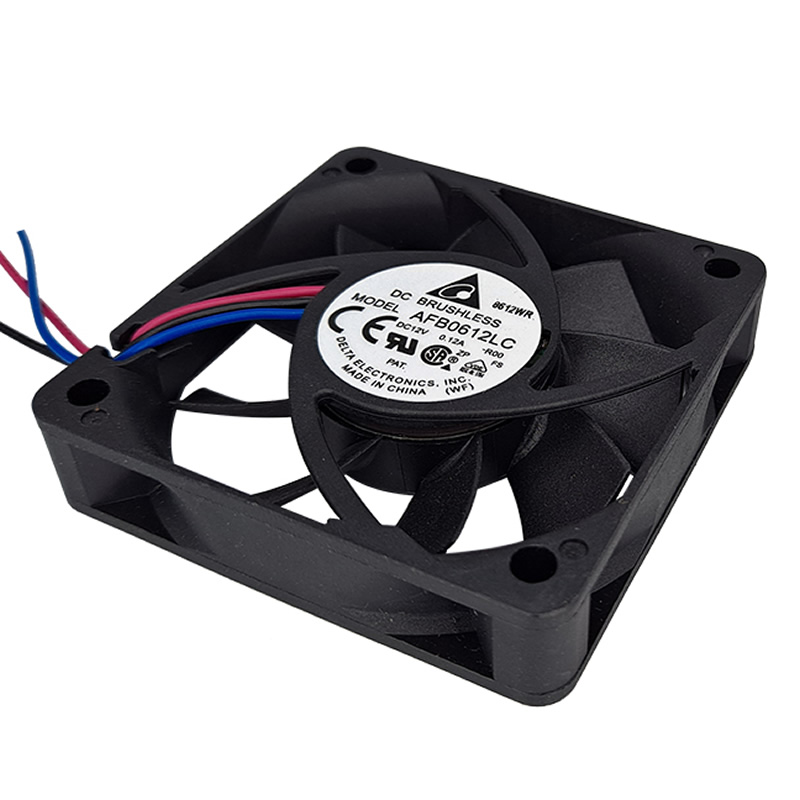

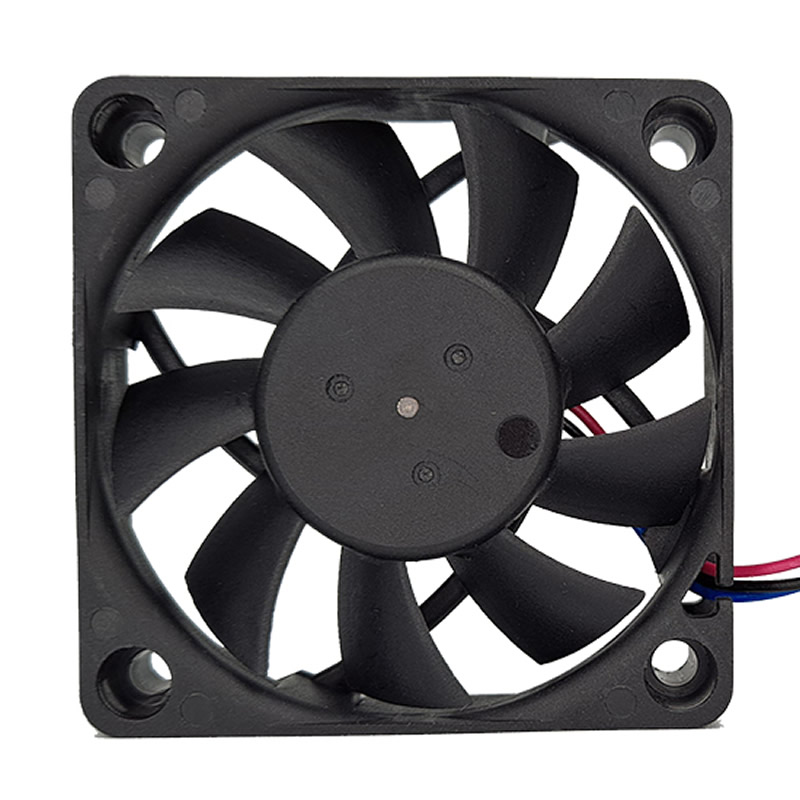

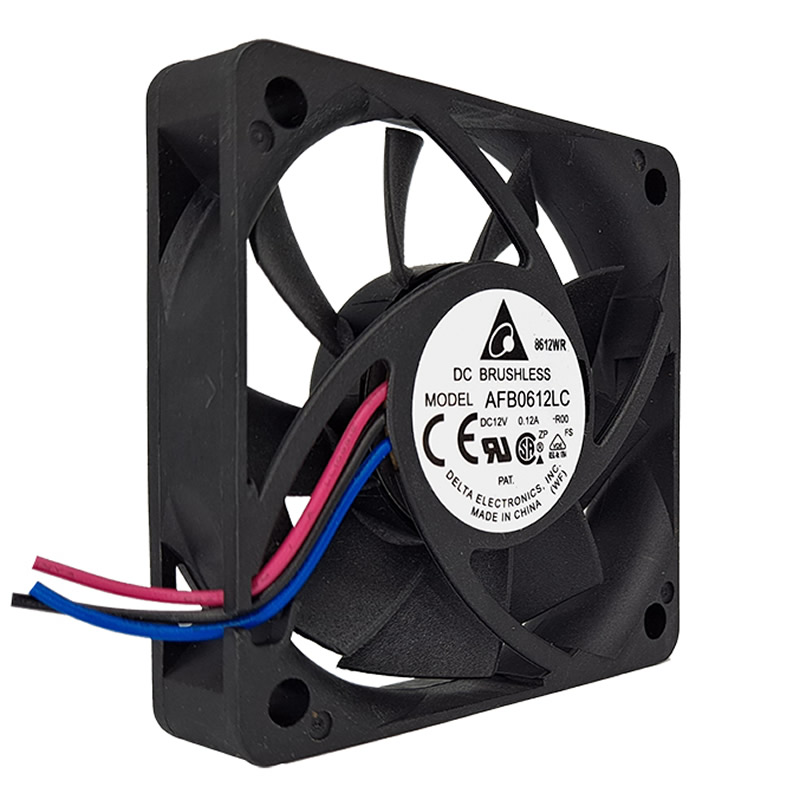

This is Delta’s AFB0612LC-R00 DC brushless axial flow fan, featuring a rated voltage of 12VDC and an operation voltage range of 7.0-13.8VDC. It has a maximum input current of 0.12A (1.44W power), a rotational speed of 3000 RPM, maximum air flow of 0.436 m³/min (15.40 CFM), air pressure of 2.11 mmH₂O, and maximum noise level of 28 dB-A. Equipped with dual ball bearings and UL94V-0 flame-retardant plastic frame/impeller, it weighs 33.5g with dimensions of 60×50×13mm. The fan operates at -10°C~+70°C and stores at -40°C~+75°C, with a service life of 70,000 hours under 40°C and 15-65% RH. It incorporates locked rotor and polarity protection, is manufactured in China or Thailand, and contains no ozone-depleting substances like PBBs.
Specifications
| Part Number | AFB0612LC-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 0.96 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Sensor |
| Series | AFB |
| Air Flow (m3) | 0.436 m3/min |
| Dimensions | 60x60x13 mm |
| Termination | 3 wire leads |
| Fan Speed | 3000 RPM |
| Fan Type | DC |
| Static Pressure | 0.083 inchH2O (2.11 mmH2O) |
| Noise Level | 24.0 dB(A) |
| Air Flow | 15.40 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.074 lb (33.56 g) |
| Category | Axial |
| Current Rating | 0.08 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial compact fan |
