Description
AFB0612EH-ABF00 Delta 60x60x25.40mm Ball 12VDC 38.35CFM(1.086m3/min) 0.544inchH2O 0.48A 46.5dB(A) 4.56W 6800RPM 3wireleads fan

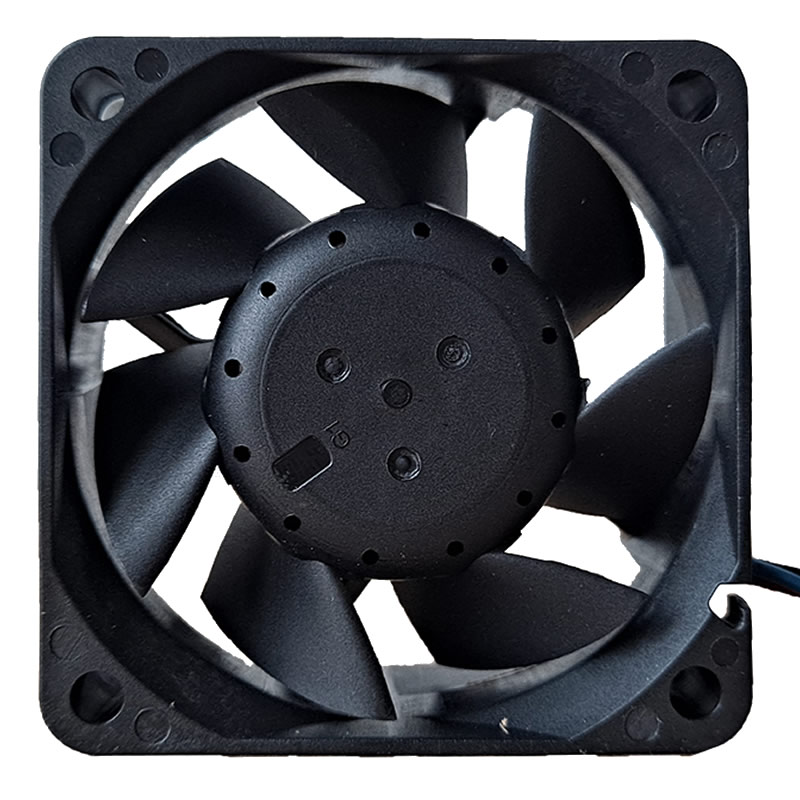

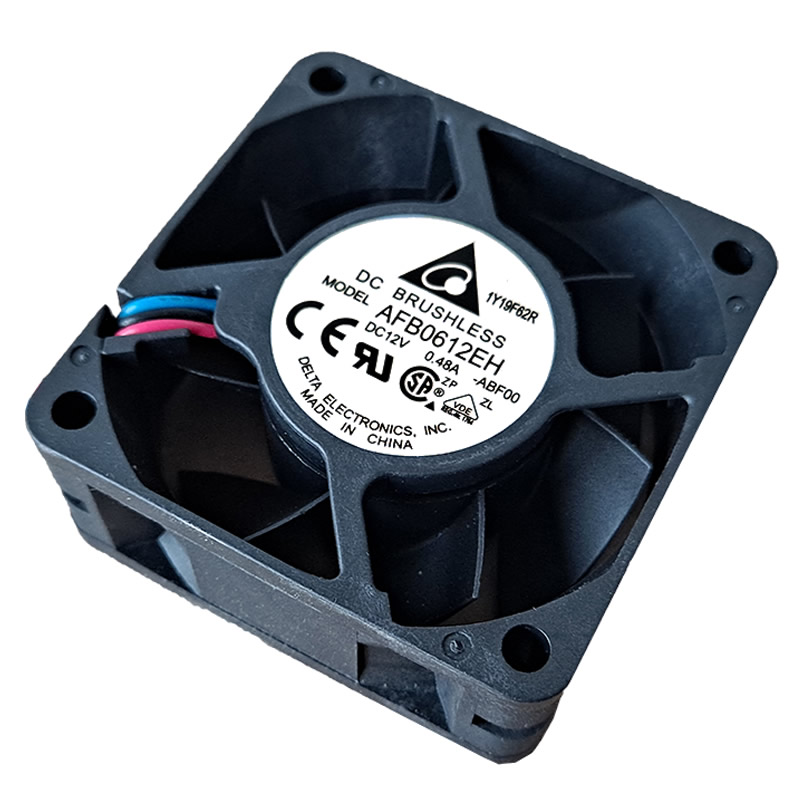

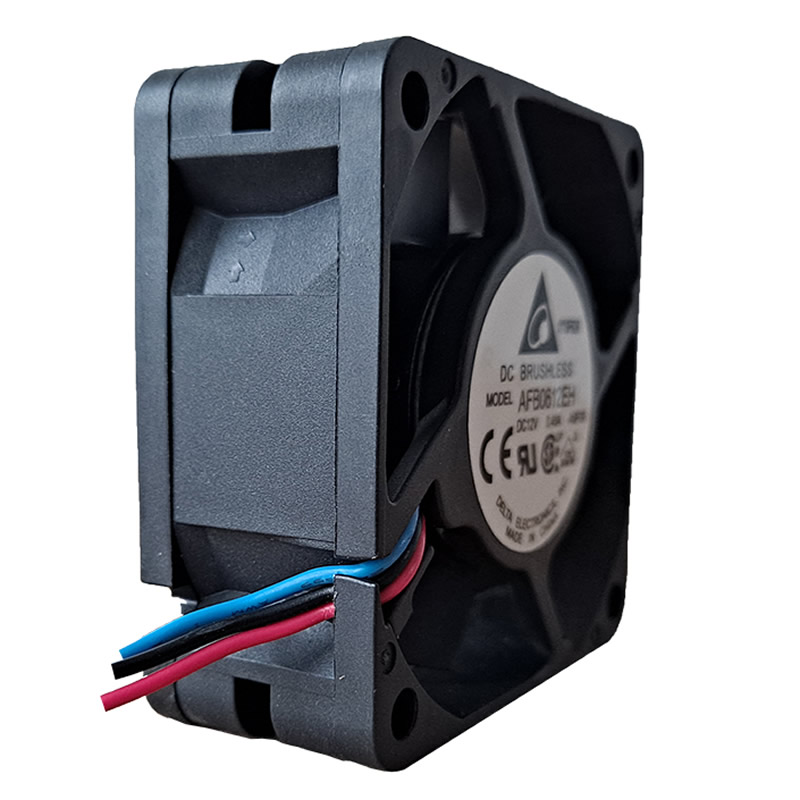

AFB0612EH-ABF00 is a 60x60x25.4mm DC brushless axial fan by Delta Electronics with ball bearing. Specs: 12VDC rated (4-13.8VDC operation), 0.48A current, 4.56W power, 6800RPM speed, 38.35CFM (1.086m³/min) air flow, 0.544inchH₂O (13.81mmH₂O) static pressure, 46.5dB(A) noise, 80g weight. Plastic frame/blade (UL 94V-0). Features: locked rotor protection, tach sensor. Certifications: CE, CSA, UL, VDE. Operates at -10~70°C (70,000h lifetime at 40°C), stores at -40~75°C (5%~95%RH). Three wires: black (-), red (+), blue (lock signal). FG signal in open collector mode. Polarity protection and 500VAC dielectric strength. Ideal for reliable heat dissipation applications.
Specifications
| Model | AFB0612EH-ABF00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x25.40 mm |
| Power Rating | 4.56 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | AFB |
| Air Flow (m3) | 1.086 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 6800 RPM |
| Fan Type | DC |
| Static Pressure | 0.544 inchH2O (13.81 mmH2O) |
| Noise Level | 46.5 dB(A) |
| Air Flow | 38.35 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.48 A |
| Operating Voltage | 4 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
