Description

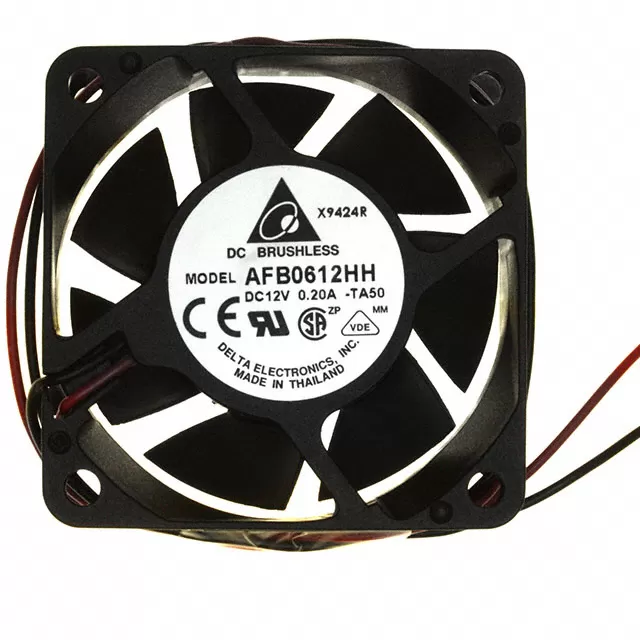

AFB0612HH-TA50 Delta 12VDC 60x60x25.40mm 27.6CFM 0.294inH2O(73.2Pa) Ball 40dB(A) 2.04W 5000RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0612HH-TA50 |
|---|---|
| Manufacturer | Delta Electronics |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 60x60x25.40 mm |
| Air Flow | 27.6 CFM |
| Air Flow (m3) | 0.773 m³/min |
| Static Pressure | 0.294 in H2O (73.2 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection |
| Noise Level | 40 dB(A) |
| Power Rating | 2.04 W |
| Fan Speed | 5000 RPM |
| Termination | 2 Wire Leads |
| IP Rating | IP55 |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.176 lb (80.00 g) |
