Description

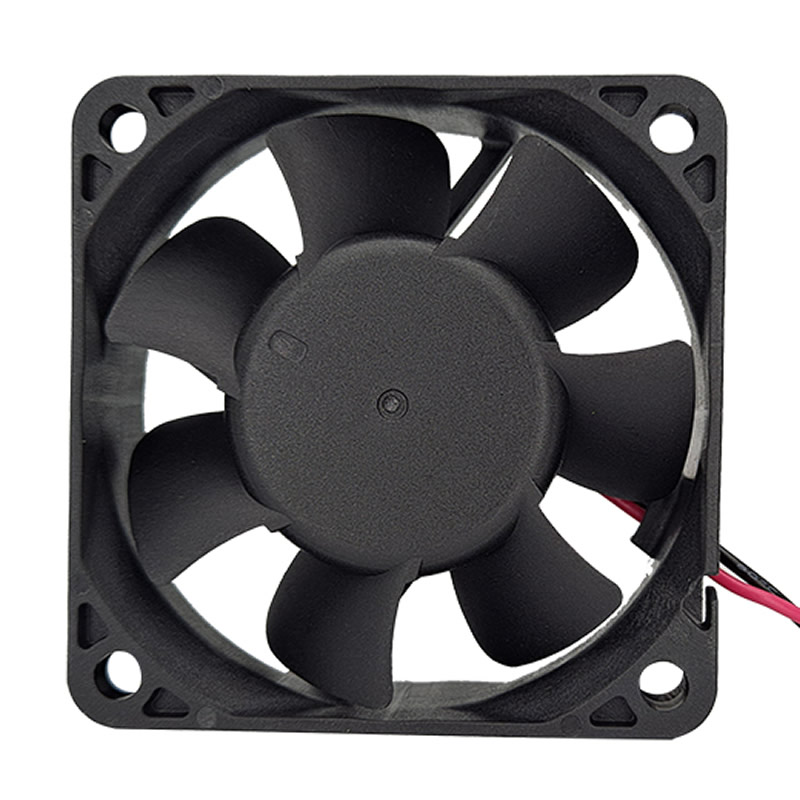

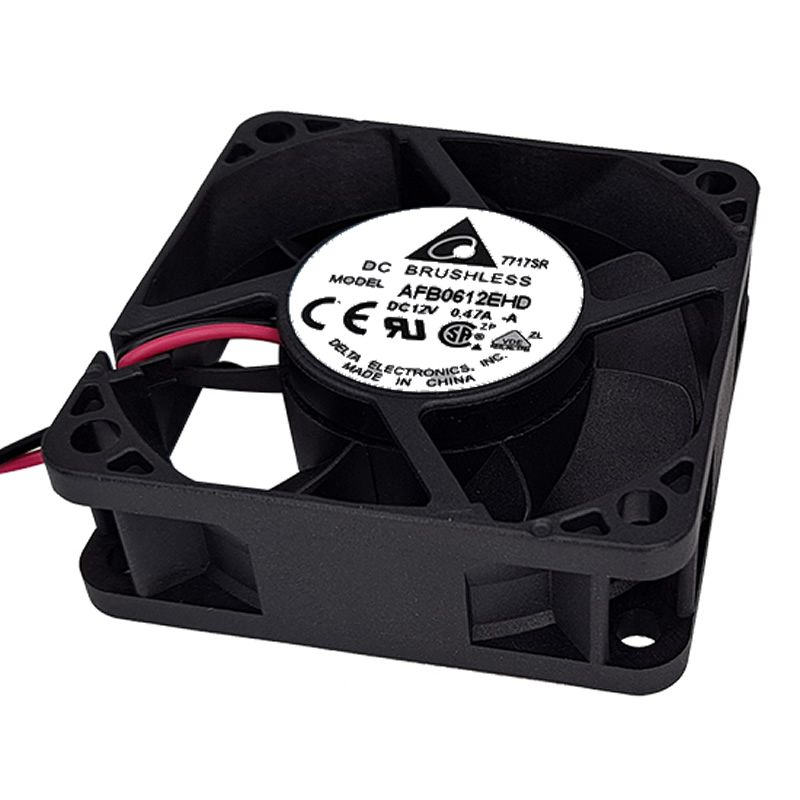

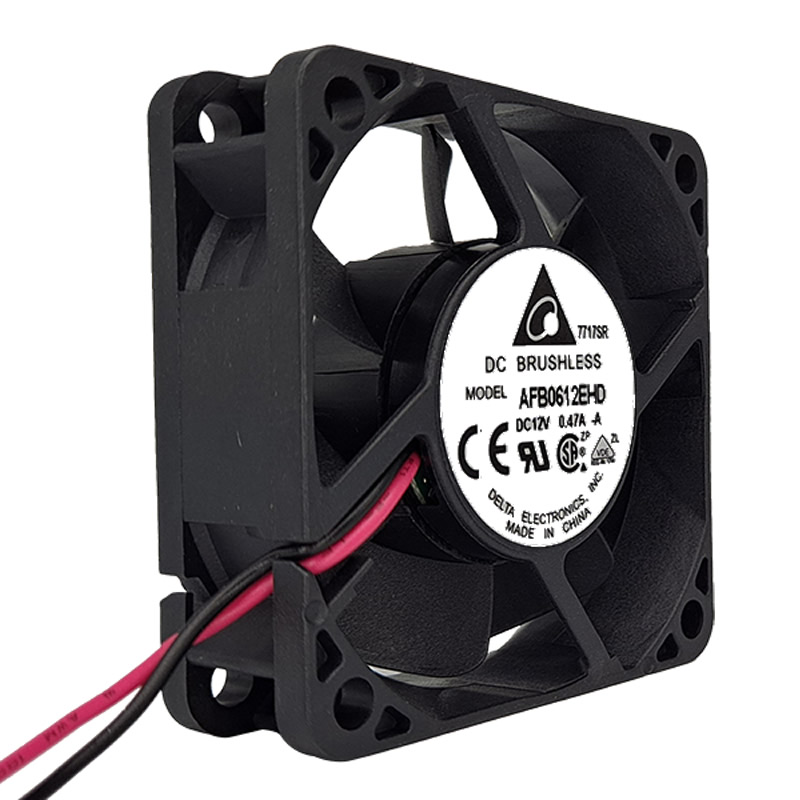

AFB0612EHD-A Delta 12VDC 60x60x20mm 35.2CFM 0.484inH2O(120.6Pa) Ball 45dB(A) 3.72W 6600RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0612EHD-A |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 60x60x20 mm |
| Air Flow | 35.2 CFM |
| Air Flow (m3) | 0.986 m³/min |
| Static Pressure | 0.484 in H2O (120.6 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 45 dB(A) |
| Power Rating | 3.72 W |
| Fan Speed | 6600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.124 lb (56.25 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0612EHD-A-Delta.pdf |
