Description

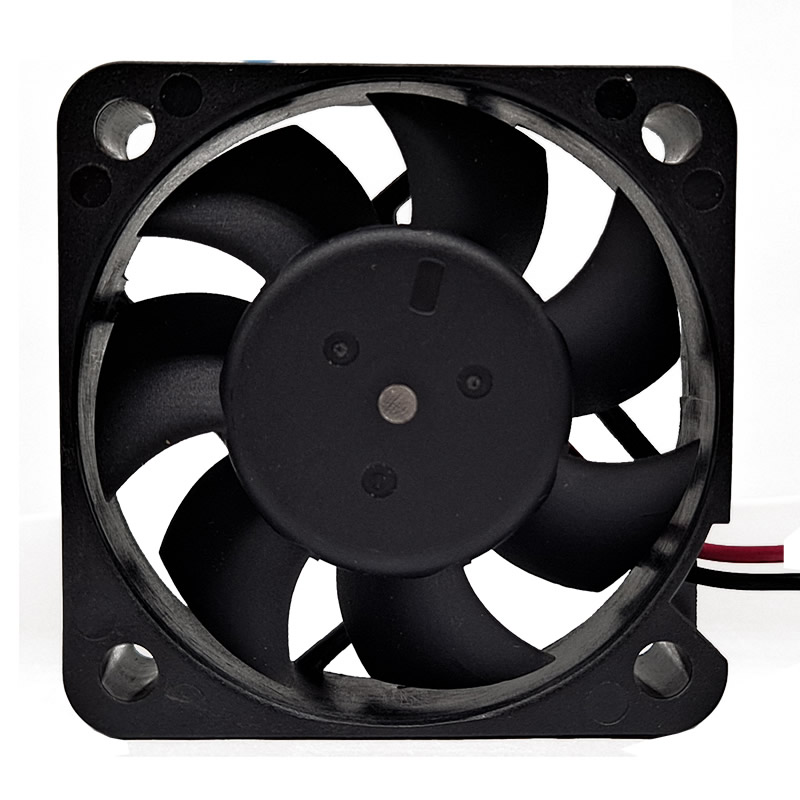

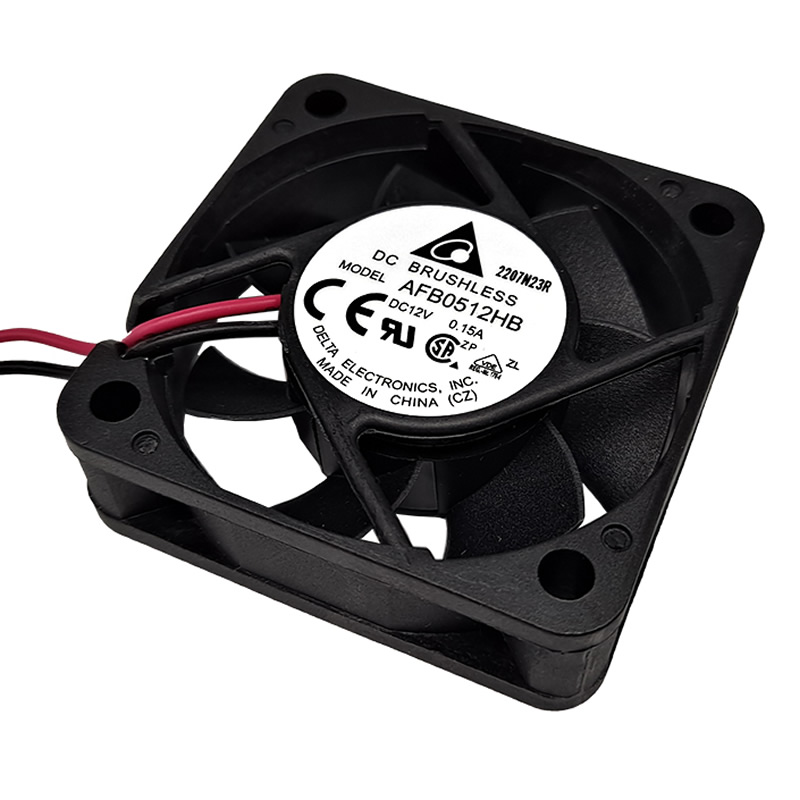

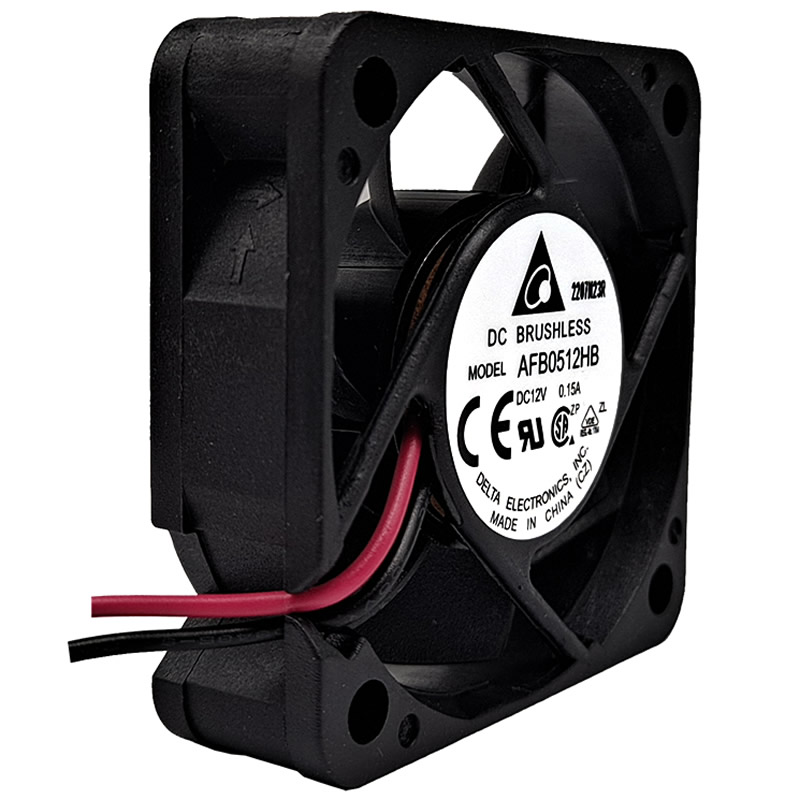

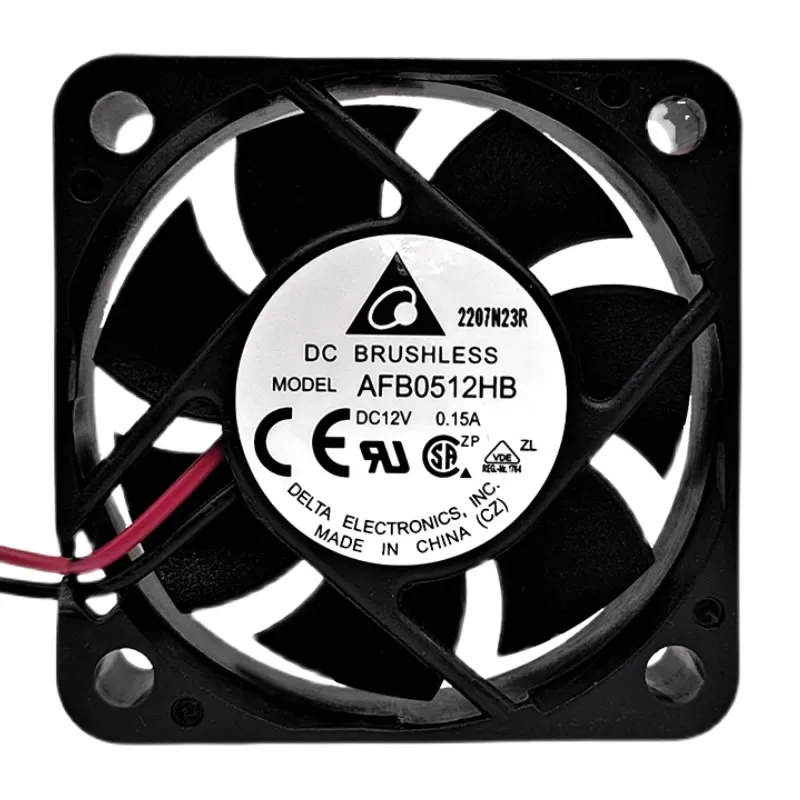

AFB0512HB Delta 12VDC 50x50x15mm 14.1CFM 0.240inH2O(59.8Pa) Ball 32dB(A) 1.2W 5600RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0512HB |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 50x50x15 mm |
| Air Flow | 14.1 CFM |
| Air Flow (m3) | 0.395 m³/min |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 32 dB(A) |
| Power Rating | 1.2 W |
| Fan Speed | 5600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.071 lb (32.21 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0512HB-Delta.pdf |
