Description

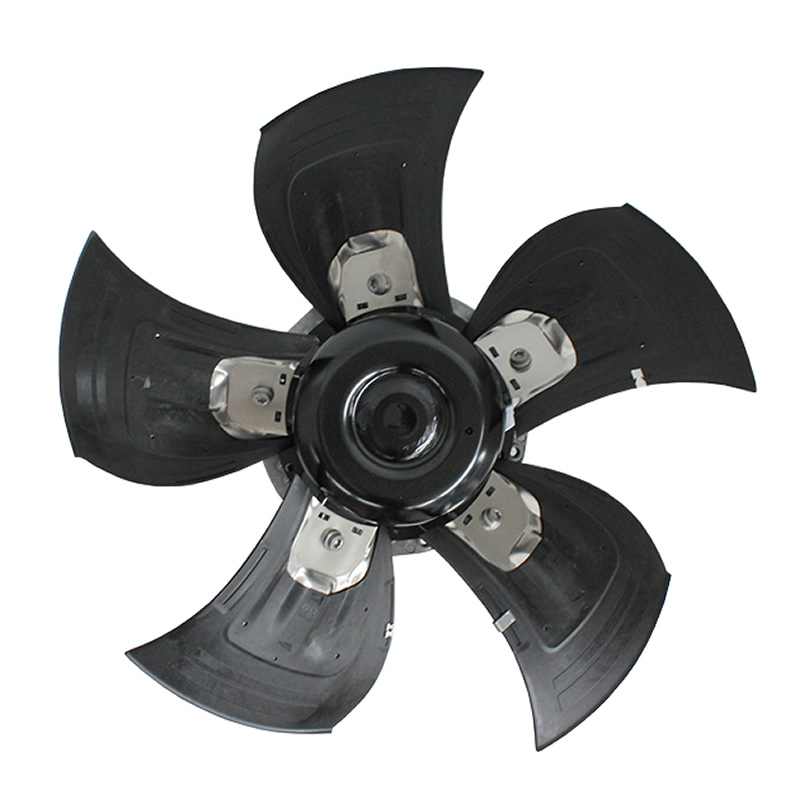

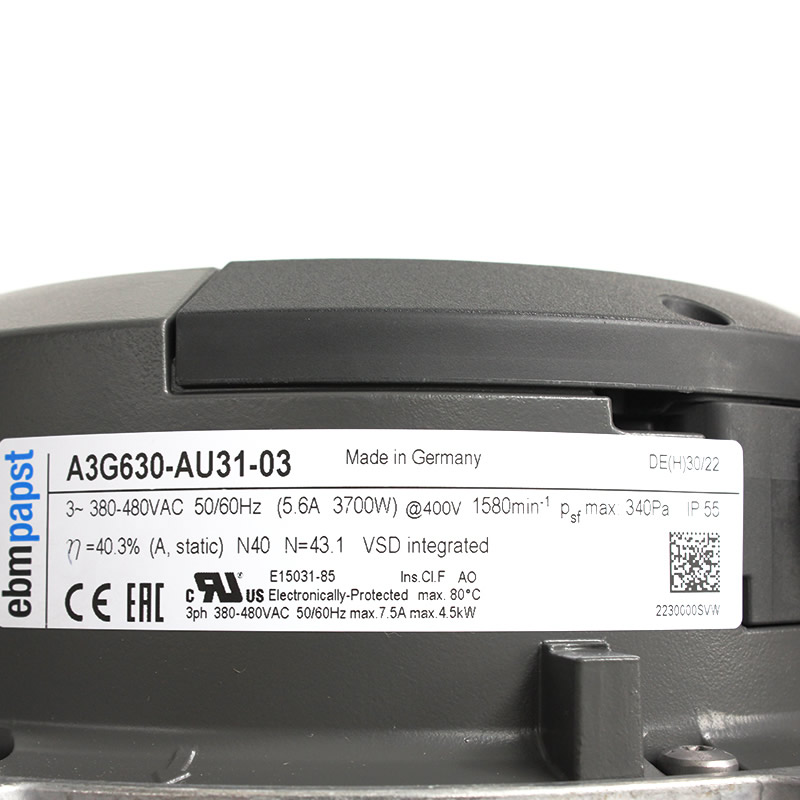

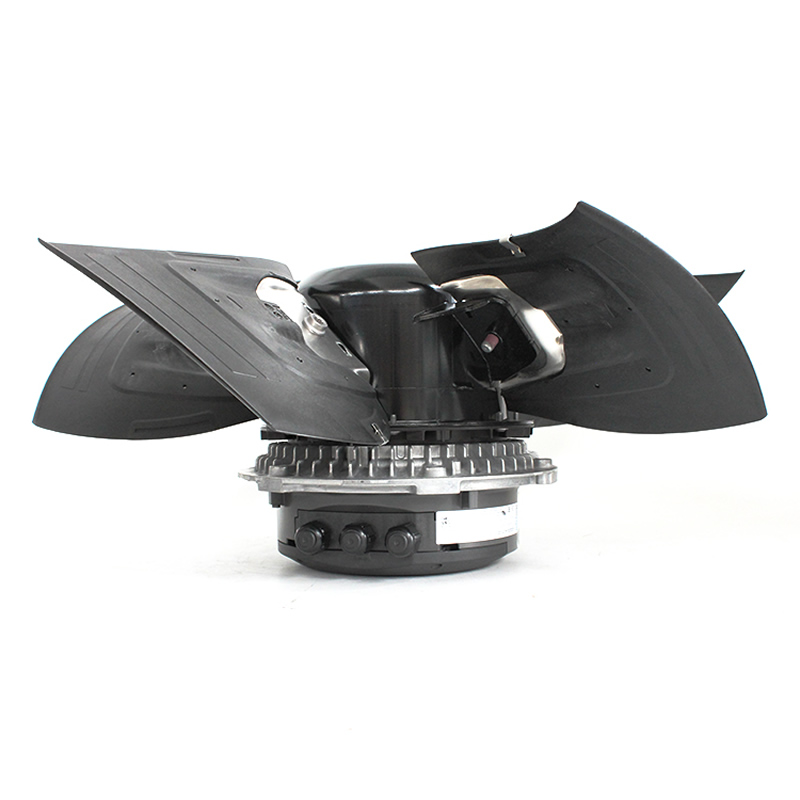

A3G630-AU31-03 ebmpapst 630mm 5.6A 3700W 400VAC 1580RPM IP55 Ball Bearing axial fan
The ebm-papst A3G630-AU31-03 is a powerful 3-phase 400 VAC AC axial fan designed for heavy-duty industrial and commercial ventilation and cooling. This 630 mm fan operates at 1580 RPM, consuming 3700 W (5.6 A) to deliver a massive airflow of approximately 15,415 m³/h at 66 dB(A). Built with durable aluminum blades and an IP55-rated die-cast aluminum housing, it weighs 25.4 kg and functions reliably in ambient temperatures from -40°C to 60°C. Featuring built-in overcurrent and locked-rotor protection, it’s an ideal choice for large HVAC systems, industrial cooling, and refrigeration.
Specifications
| Model | A3G630-AU31-03 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 630 mm |
| Operating Voltage | 380 ~ 480 VAC |
| Current Rating | 5.6 A |
| Power Rating | 3700 W |
| Voltage Rating | 400 VAC |
| Fan Speed | 1580 RPM |
| IP Rating | IP55 |
| Bearing Type | Ball Bearing |
| Fan Type | AC |
| Phase | 3~ |
| Number of blades | 5 |
| Subcategory | AC axial fan |
| Shipping Weight | 26 kg |
| Product PDF | A3G630-AU31-03-ebmpapst.pdf |
