Description

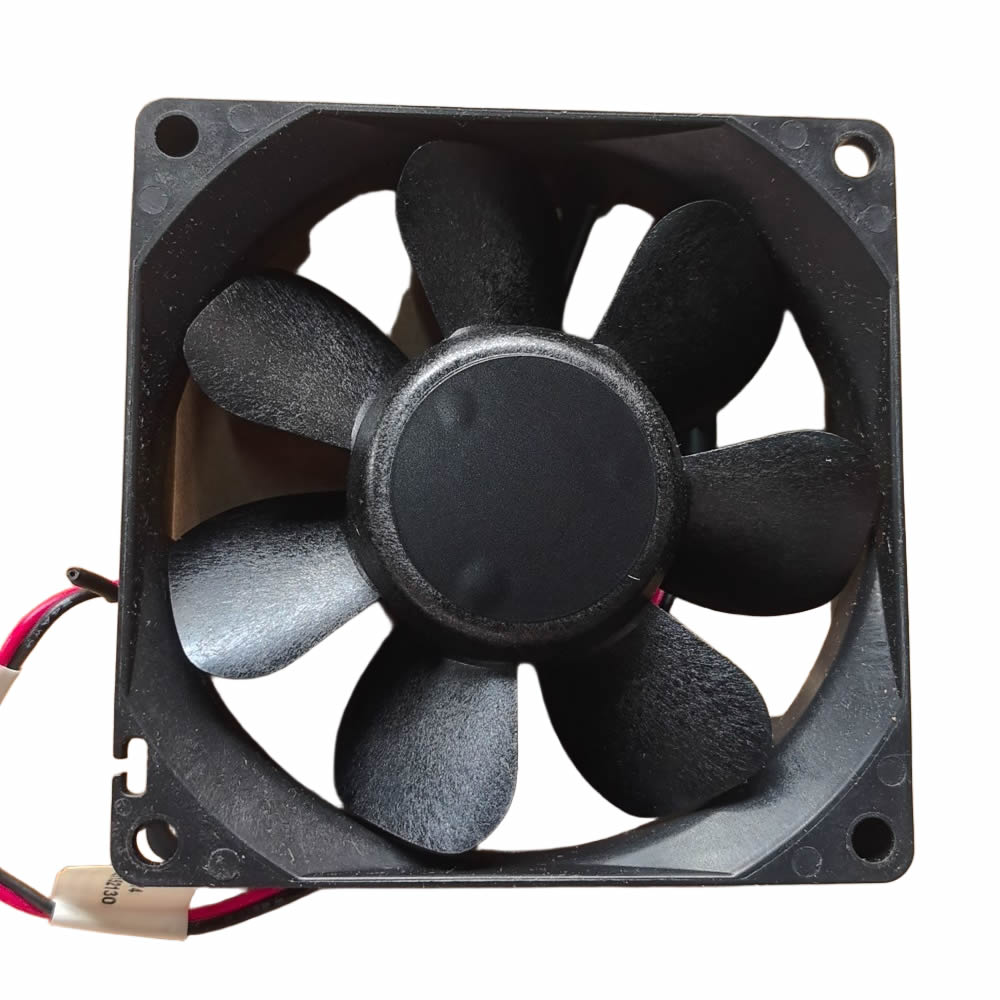

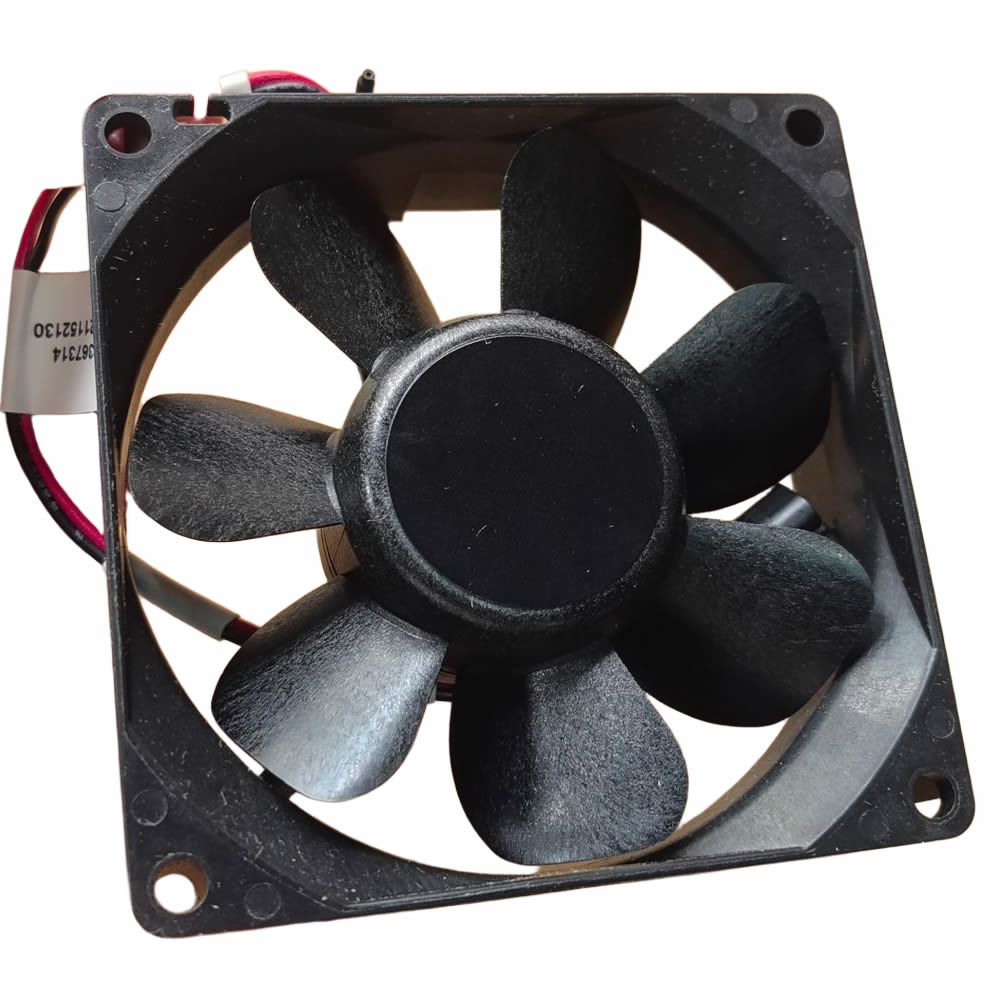

9WP0824S401 Sanyo Denki San Ace 80W DC 24VDC 80x80x25mm 42.4CFM Ball 34dB(A) 2.4W 3400RPM IP68 2-Wire Leads Speed Sensor (Tach) Tubeaxial fan
Specifications
| Part Number | 9WP0824S401 |
|---|---|
| Manufacturer | Sanyo Denki |
| Fan Type | DC |
| Series | San Ace 80W |
| Voltage Rating | 24 VDC |
| Dimensions | 80x80x25 mm |
| Air Flow | 42.4 CFM |
| Air Flow (m3) | 1.19m³/min |
| Static Pressure | 0.193 in H2O (48.1 Pa) |
| Bearing Type | Ball Bearing |
| Features | Speed Sensor (Tach) |
| Noise Level | 34 dB(A) |
| Power Rating | 2.4 W |
| Fan Speed | 3400 RPM |
| Termination | 2 Wire Leads |
| IP Rating | IP68 |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.287 lb (130.18 g) |
| Subcategory | Tubeaxial |
| Shipping Weight | 0.25 kg |
| Product PDF | 9WP0824S401-Sanyo-Denki.pdf |
