Description

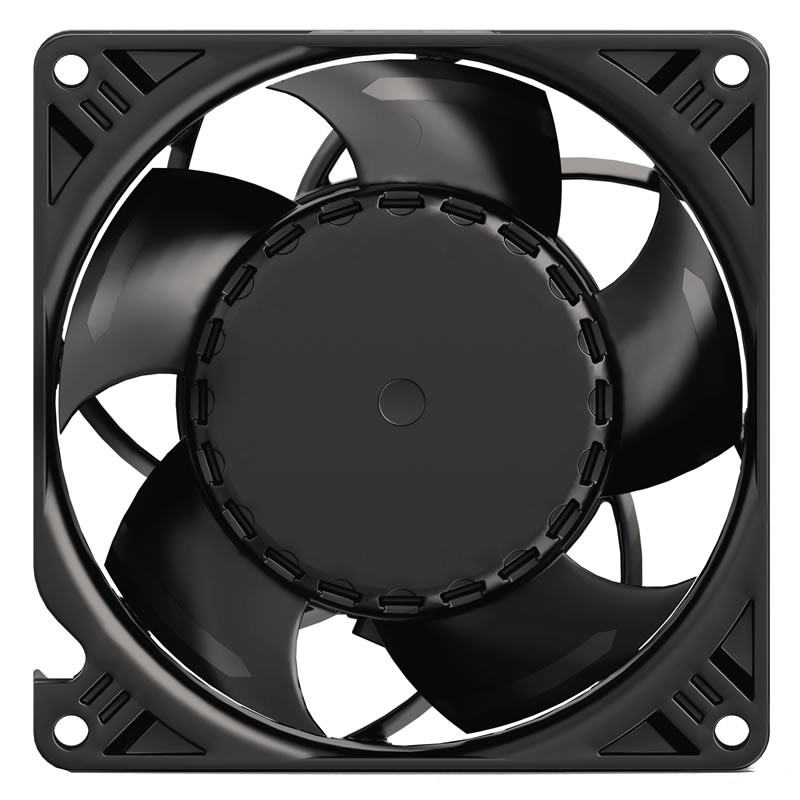

8315100286 VWCF092DSGJS AxiACi92U-00286 ebmpapst 92x92x38.15mm 115/230VAC 0.054A 3.40W 54.3CFM 155Pa 44dB(A) 4500RPM IP65 2 Wire Leads Ball Bearing axial fan
Specifications
| Part Number | 8315100286 |
|---|---|
| Type | VWCF092DSGJS |
| Model | AxiACi92U-00286 |
| Manufacturer | ebm-papst |
| Series | AxiACi |
| Fan Type | AC |
| Voltage Rating | 115/230 VAC |
| Dimensions | 92x92x38.15 mm |
| Air Flow | 54.3 CFM |
| Air Flow CMM | 1.52 m³/min |
| Static Pressure | 0.622 in H2O |
| Static Pressure Pa | 155 Pa |
| Bearing Type | Ball Bearing |
| Category | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection |
| Noise Level | 44 dB(A) |
| Power Rating | 3.40 W |
| Fan Speed | 4500 RPM |
| Termination | 2 Wire Leads |
| IP Rating | IP65 |
| Operating Temperature | -40 ~ 167°F (-40 ~ 75°C) |
| Approval Agency | CCC, CE, CSA, EAC, UL, VDE |
| Current Rating | 0.054 A |
| Operating Voltage | 100 ~ 240 VAC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | Varies Based on Temperature |
| RoHS Status | ROHS3 Compliant |
| ECCN | EAR99 |
| Product PDF | 8315100286-ebmpapst.pdf |
