Description

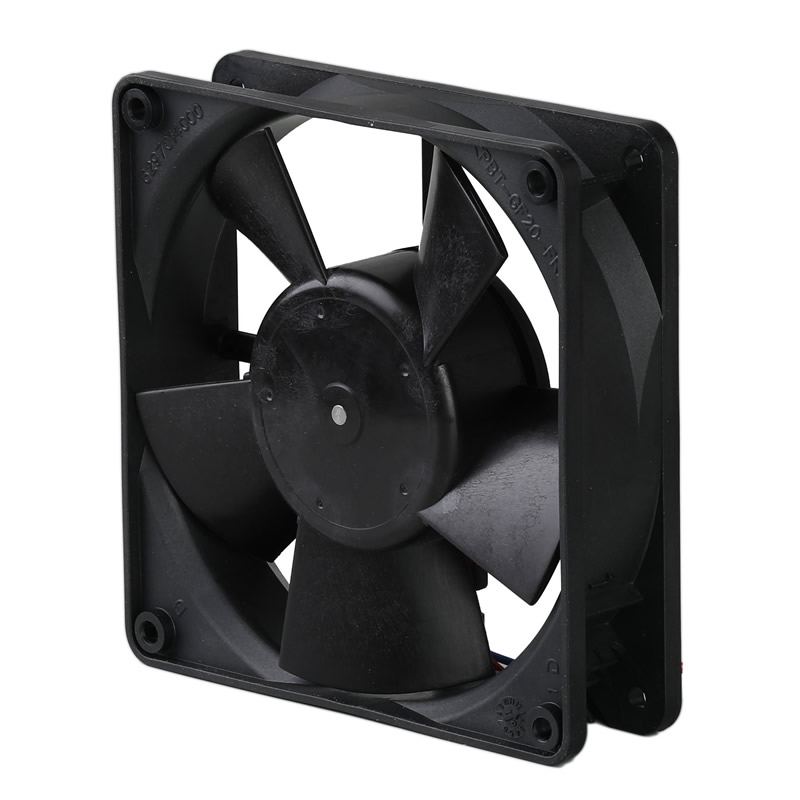

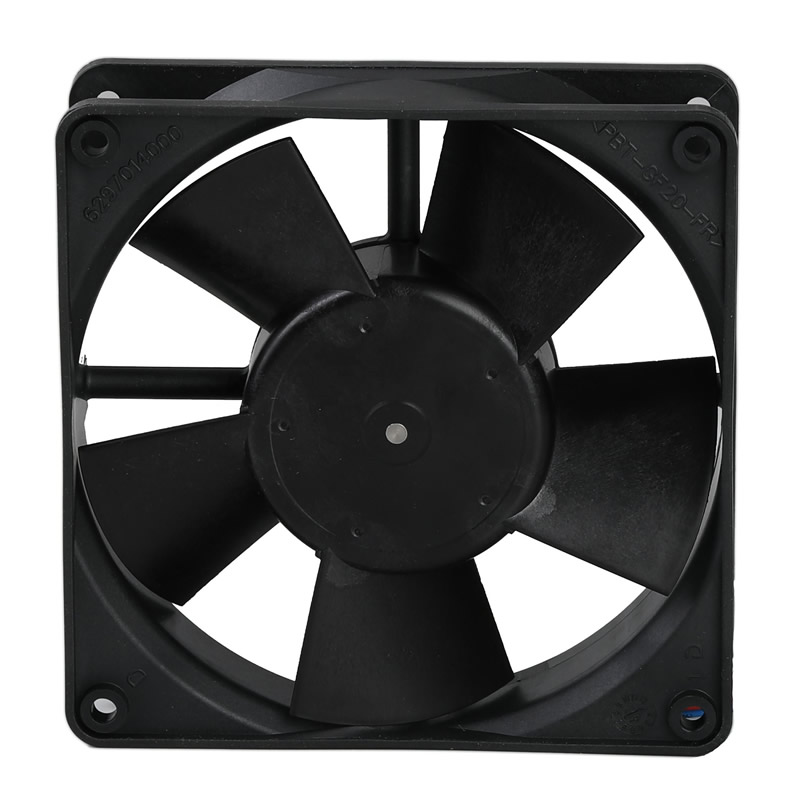

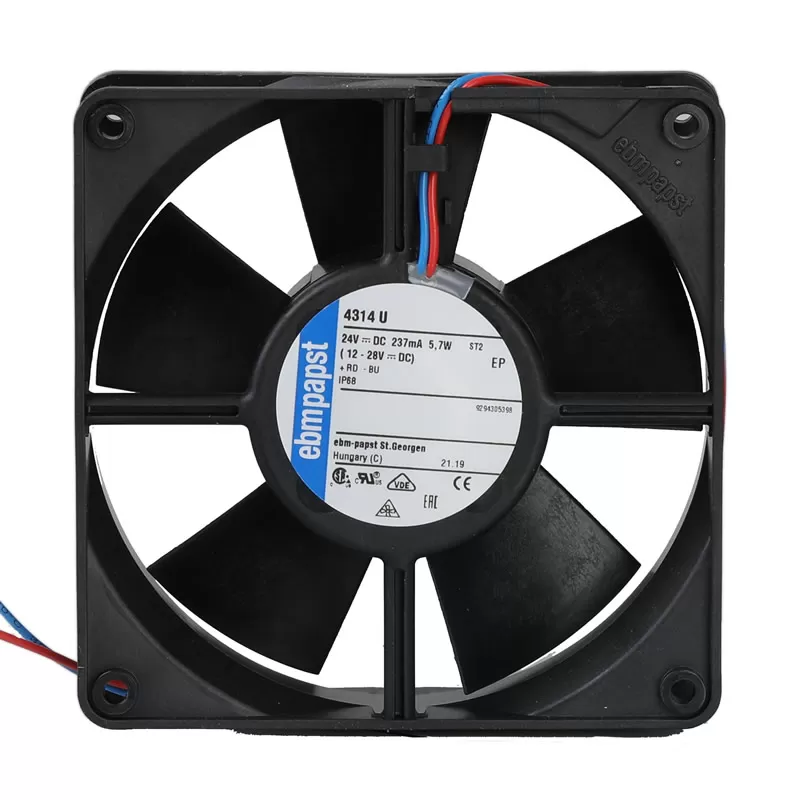

4314U ebmpapst 24VDC 237mA 119x119x32mm 100.1CFM Ball 5.7W 2800RPM IP68 2-Wire Leads Tubeaxial DC Fan
The ebm-papst 4314U is a high-performance, highly reliable 24VDC tubeaxial fan, measuring 119×119×32 mm. It delivers an airflow of 100 CFM (or 170 m³/h) at a speed of 2800 RPM, with a low noise level of just 45 dB(A). A key highlight of this fan is its IP68 ingress protection rating, ensuring stable operation in harsh environments (e.g., humid, dusty, or even short-term immersion). It consumes 5 W of power and boasts an impressive expected lifetime of 62500 hours (@ 40°C).
Specifications
| Part Number | 4314U |
|---|---|
| Fan Type | DC |
| Series | 4300U |
| Voltage Rating | 24 VDC |
| Dimensions | 119x119x32 mm |
| Air Flow | 100.1 CFM |
| Air Flow (m3) | 2.80m³/min |
| Bearing Type | Ball Bearing |
| Manufacturer | ebm-papst |
| Power Rating | 5.7 W |
| Noise Level | 45 dB(A) |
| Fan Speed | 2800 RPM |
| Termination | 2 Wire Leads |
| IP Rating | IP68 |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.5 lb (226.8 g) |
| Subcategory | Tubeaxial |
| Shipping Weight | 0.5 kg |
| Product PDF | 4314U-ebmpapst.pdf |
