Description

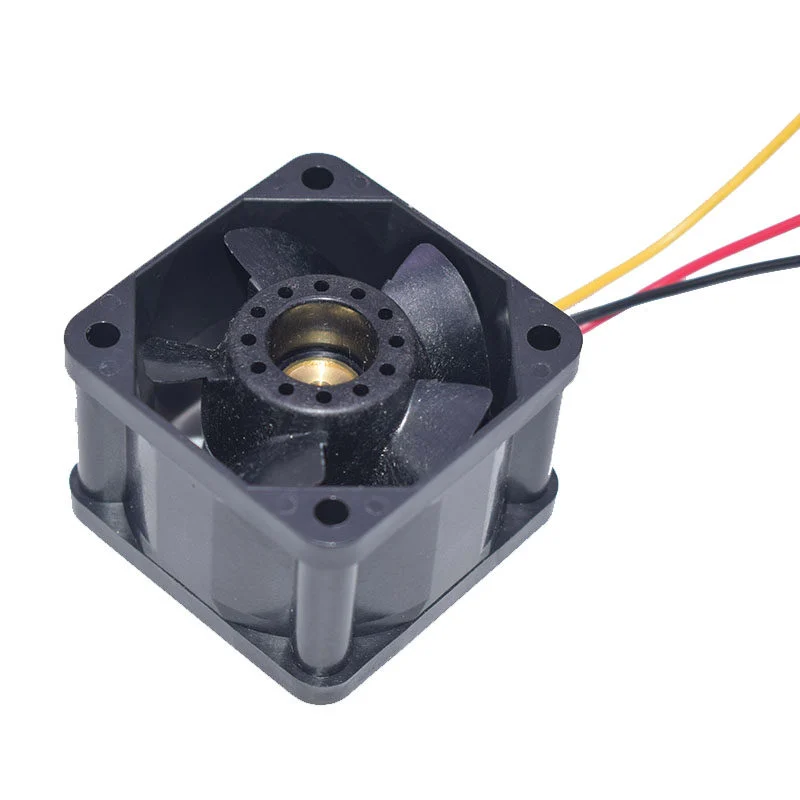

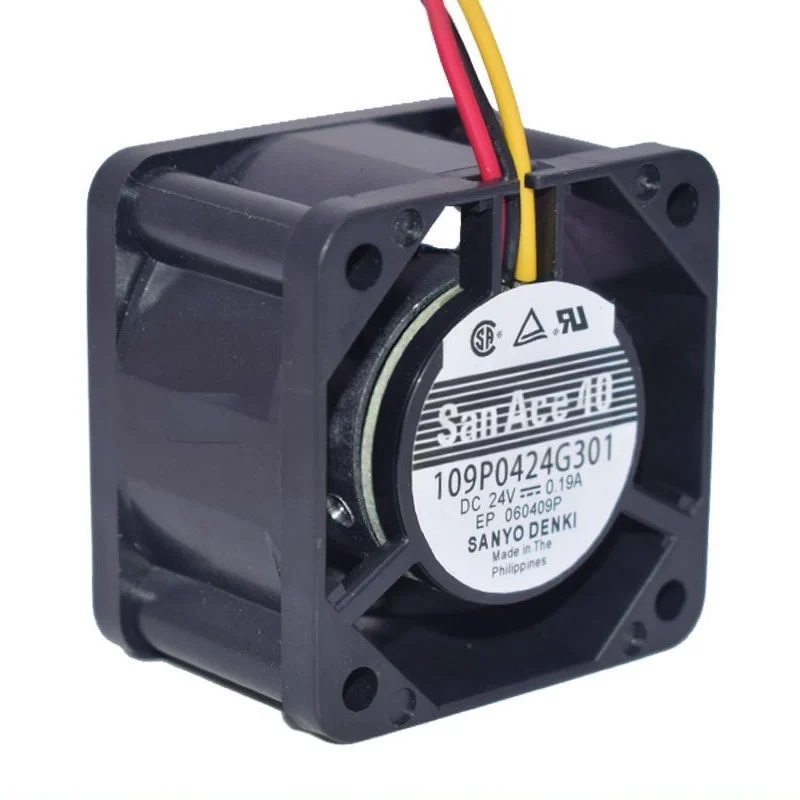

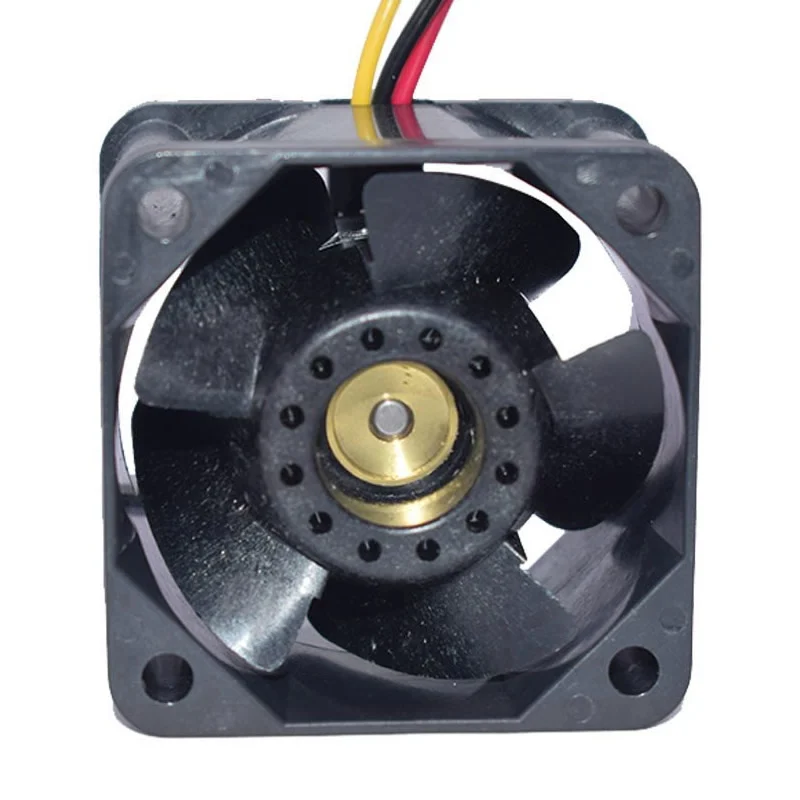

The Sanyo Denki 109P0424G301 is an original San Ace 40 series DC brushless axial cooling fan designed for compact industrial equipment, electronic devices and high-density cooling applications. Featuring a standard 40 x 40 x 28 mm dimension, this fan provides high-speed airflow performance in applications where installation space is limited.
Operating at 24VDC with a rated current of 0.19A, the 109P0424G301 delivers a high rotational speed of 11500 RPM, airflow performance of 14.8 CFM, and noise level of 42 dB(A). The compact axial design combined with a durable ball bearing structure provides reliable cooling performance for continuous equipment operation.
Manufactured by Sanyo Denki, the San Ace 40 109P0424G301 features a 3-wire lead configuration with tachometer speed monitoring output. The fan is suitable for industrial electronics, automation equipment, communication systems and other applications requiring compact, high-speed DC cooling solutions.
Key Features
- Original Sanyo Denki San Ace 40 series cooling fan
- Model: 109P0424G301
- Compact 40 x 40 x 28 mm fan size
- 24VDC brushless DC motor
- High-speed operation: 11500 RPM
- Low current consumption: 0.19A
- 3-wire connection with tachometer signal
- Ball bearing design for reliable operation
- Airflow performance up to 14.8 CFM
- Suitable for compact industrial cooling applications
Technical Specifications
| Manufacturer | Sanyo Denki |
| Model | 109P0424G301 |
| Series | San Ace 40 |
| Fan Type | DC Brushless Axial Fan |
| Dimension | 40 x 40 x 28 mm |
| Rated Voltage | 24VDC |
| Rated Current | 0.19A |
| Rated Power | 4.56W |
| Speed | 11500 RPM |
| Airflow | 14.8 CFM (0.42 m³/min) |
| Static Pressure | 18 mmAq |
| Noise Level | 42 dB(A) |
| Bearing Type | Ball Bearing |
| Motor Type | Brushless DC Motor |
| Connection | 3 Wire Leads |
| Signal Function | Tachometer (Speed Sensor) |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Voltage Range | 12 ~ 26.4VDC |
| Operating Temperature | -20°C to +60°C |
| Certification | UL, CSA, TUV |
| Country of Origin | Philippines |
| Weight | Approx. 52g |
Applications
- Industrial control equipment
- Automation systems
- Communication equipment
- Electronic instruments
- Power electronics cooling
- Compact embedded systems
- Industrial controllers
- High-density electronic equipment
Replacement Information
The Sanyo Denki 109P0424G301 is a replacement cooling fan for equipment requiring a compact 40 x 40 x 28 mm 24VDC axial fan with tachometer feedback.
Before replacement, verify the following specifications:
- Model: 109P0424G301
- Dimension: 40 x 40 x 28 mm
- Voltage: 24VDC
- Current: 0.19A
- Connection: 3 Wire
- Tachometer signal compatibility
- Mounting dimensions and airflow direction
Specifications
| Part Number | 109P0424G301 |
|---|---|
| Manufacturer | Sanyo Denki |
| Fan Type | DC |
| Series | San Ace 40 |
| Voltage Rating | 24 VDC |
| Dimensions | 40x40x28 mm |
| Bearing Type | Ball Bearing |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Noise Level | 42 dB(A) |
| Power Rating | 4.56 W |
| Fan Speed | 11500 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
| Approval Agency | CSA, TUV, UL |
| Weight | 0.115 lb (52.16 g) |
| Subcategory | Tubeaxial |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Air Flow Range | < 50 CFM ( < 85 m³/h ) |
| Static Pressure Range | 10 – 50 mmH₂O ( 100 – 500 Pa ) |
| Fan Speed Range | 8,000 – 15,000 RPM |
| Noise | 30 – 45 dB(A) (Standard) |
| Shipping Weight | 0.25 kg |
