Description

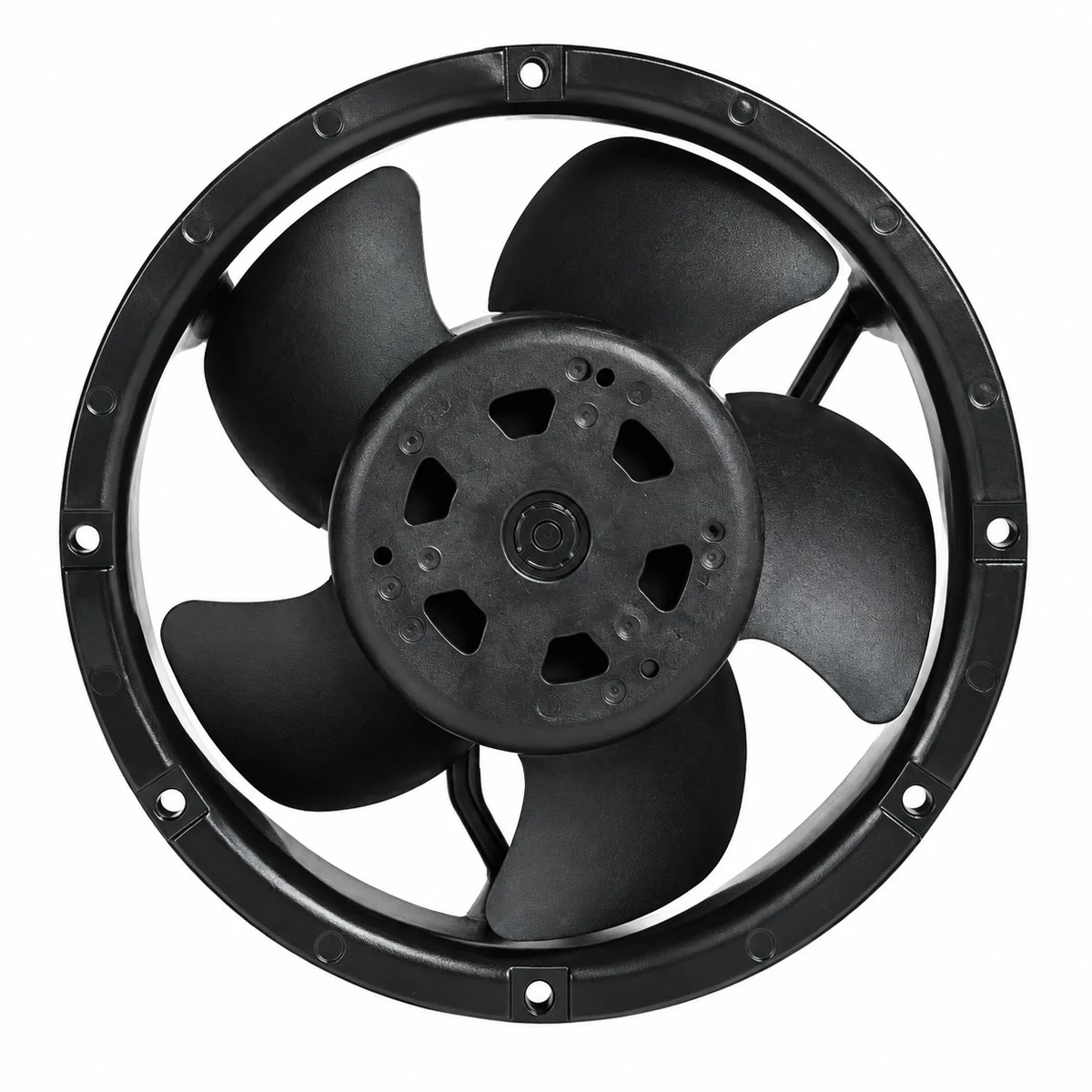

The Nidec D1751U24B8PP363 is an industrial-grade DC brushless axial cooling fan designed for reliable thermal management in demanding electronic and industrial equipment. Featuring a compact Ø172 x 51 mm round frame design, this fan provides efficient airflow performance while maintaining a space-saving installation profile.
Powered by a 24VDC brushless motor with a rated current of 3.4A, the D1751U24B8PP363 delivers stable cooling performance for systems requiring continuous forced-air ventilation. The fan uses a durable 5-blade axial impeller design and a 4-wire connection configuration for integration into industrial control and monitoring systems.
Manufactured by Nidec Servo Corporation, this cooling fan is widely used in industrial inverter systems, power electronics equipment, automation systems and other applications where dependable DC cooling performance is required.
Key Features
- Original Nidec Servo Corporation DC brushless axial fan
- Model: D1751U24B8PP363
- Compact round frame design: Ø172 x 51 mm
- Rated voltage: DC24V
- Rated current: 3.4A
- High-performance brushless DC motor
- 5-blade axial impeller design
- 4-wire connection configuration
- Ball bearing construction for long service life
- RoHS compliant design
- Made in Vietnam
Technical Specifications
| Brand | Nidec |
| Manufacturer | Nidec Servo Corporation |
| Model | D1751U24B8PP363 |
| Fan Type | DC Brushless Axial Fan |
| Frame Design | Round Frame |
| Dimensions | Ø172 x 51 mm |
| Rated Voltage | 24VDC |
| Rated Current | 3.4A |
| Rated Power | 81.6W |
| Motor Type | Brushless DC Motor |
| Bearing Type | Ball Bearing |
| Blade Count | 5 Blades |
| Connection | 4 Wire |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Certification | cRUus, RoHS |
| Country of Origin | Vietnam |
Applications
- Industrial inverter cooling systems
- Variable frequency drives (VFD)
- Servo drive equipment
- Power supply cooling
- Industrial control cabinets
- Automation equipment
- Telecommunication equipment
- Electronic equipment thermal management
Replacement Information
The Nidec D1751U24B8PP363 is suitable for replacing existing industrial DC cooling fans with matching electrical specifications, mounting dimensions and connector configuration.
Before replacement, verify:
- Model number: D1751U24B8PP363
- Voltage: 24VDC
- Current: 3.4A
- Frame size: Ø172 x 51 mm
- Connector type and wire configuration
Common search references:
- Nidec D1751U24B8PP363
- D1751U24B8PP363 Cooling Fan
- Nidec 24V 3.4A Fan
- 24VDC Industrial Axial Fan
Specifications
| Manufacturer | Nidec Corporation |
|---|---|
| Fan Size | Ø 172 x 51 mm |
| Voltage Rated | 24 VDC |
| Shipping Weight | 1.5 kg |
