Description

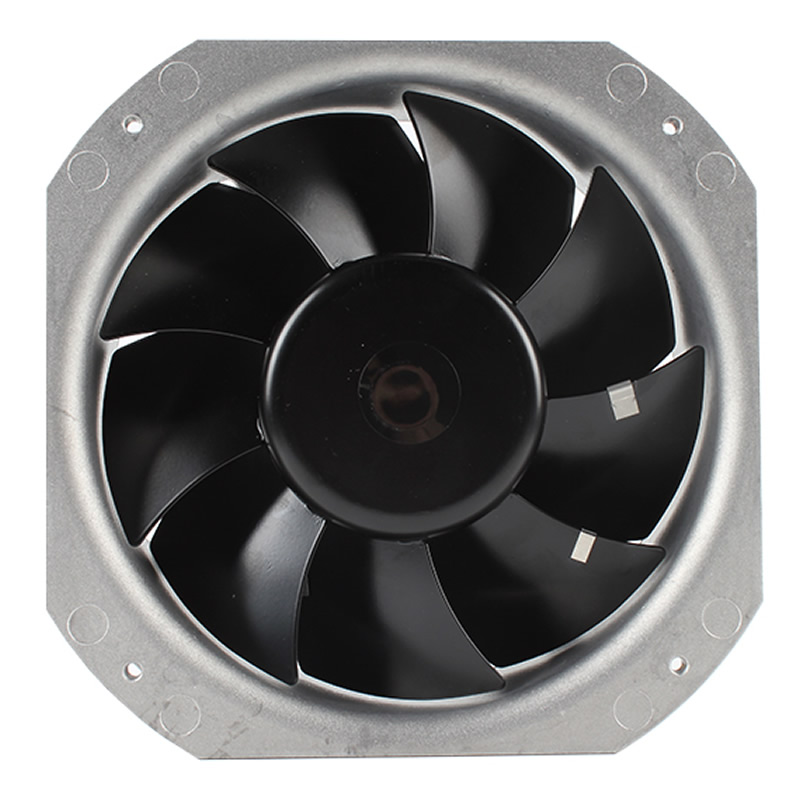

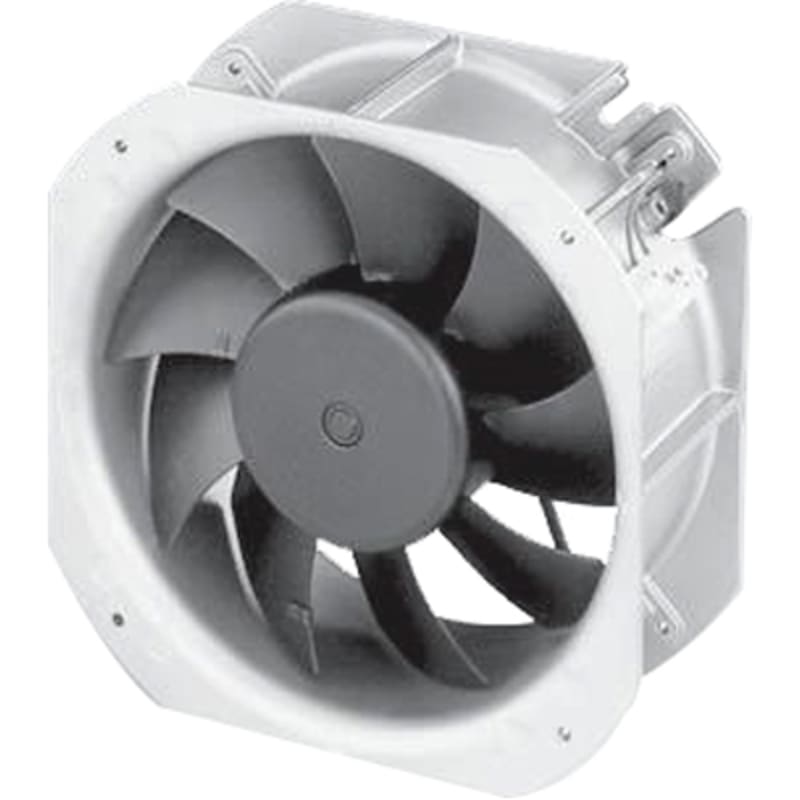

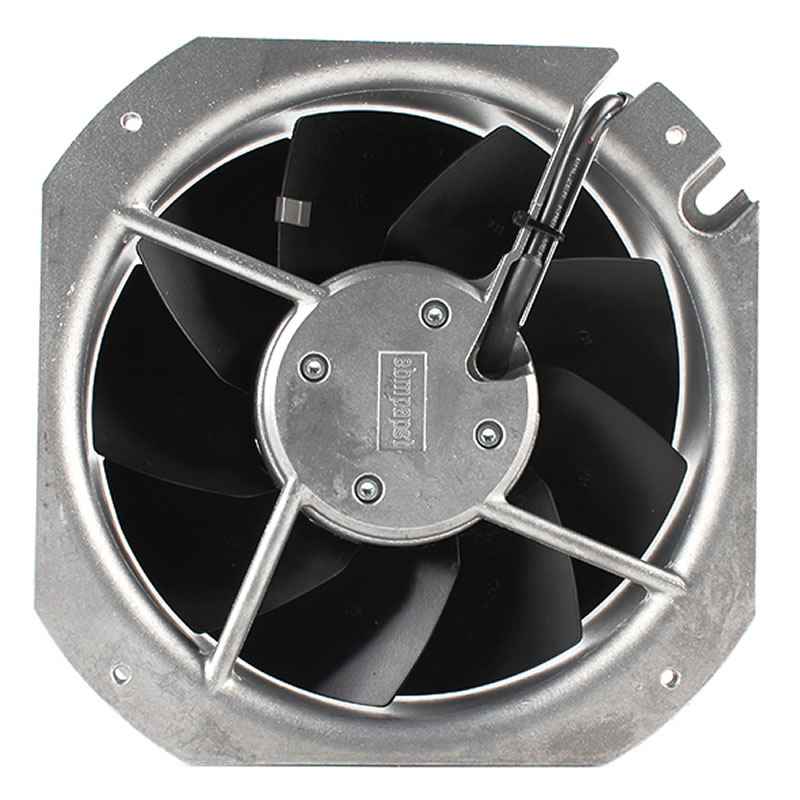

W1G200-HH01-52 ebmpapst 48VDC 225x225x80mm 591.5CFM Ball 45W 2750RPM Terminal Block Tubeaxial DC Fan

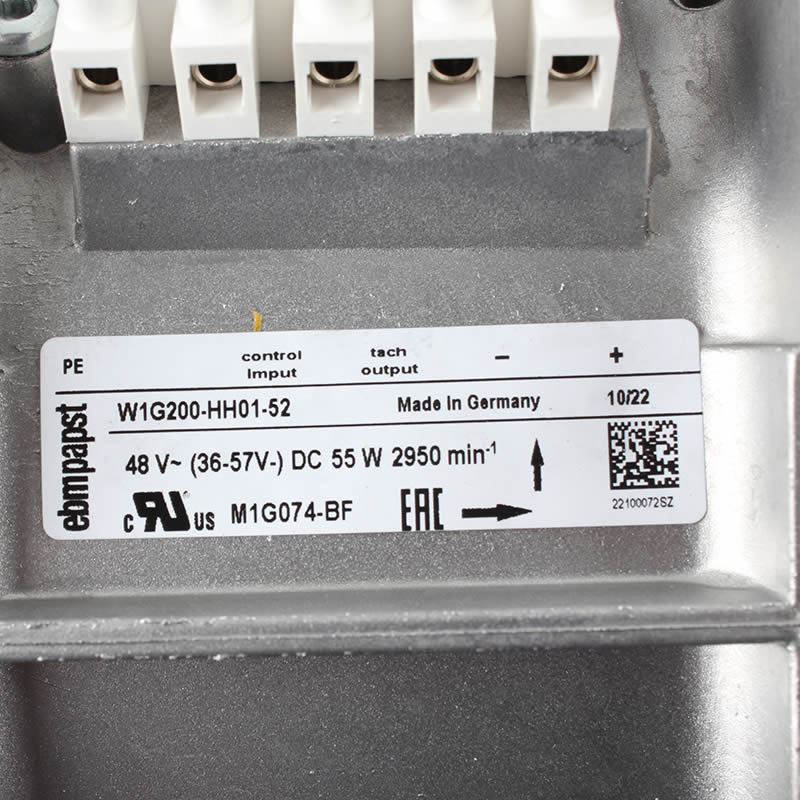

The W1G200-HH01-52 axial fan is an EC compact model from ebm-papst’s sickle-shaped blade S series, featuring a rated voltage of 48VDC (36-57VDC wide range), 2950rpm speed, 55W power consumption, and 1.3A current. It operates in -25°C to 60°C environments (storage: -40°C to 80°C), with a 200mm diameter and 2.1kg weight. The fan uses painted black sheet steel blades and a die-cast aluminum housing, with 9 blades in a “V” airflow direction rotating counterclockwise. It has IP42 protection, Class B insulation, and supports any installation position, equipped with ball bearings and a 5-terminal strip (red for 48VDC, yellow for 0-10VDC control, white for tach output, blue for GND). Functions include reverse polarity/locked-rotor protection, soft start, motor current limitation, 0-10VDC/PWM speed control (Re > 100kΩ), and tach output (3 pulses/rev, 10mA sink). EMC compliant with EN 61000-6-2 (industrial) and EN 55022 Class B, certified by CCC, UL 1004-1, etc. Air performance: 1090m³/h max flow (0Pa) at 48VDC, 675m³/h at 120Pa; up to 1205m³/h at 57VDC, suitable for telecom equipment and industrial cabinet cooling.
Specifications
| Part Number | W1G200-HH01-52 |
|---|---|
| Manufacturer | ebm-papst |
| Series | W1G200 |
| Voltage Rating | 48 VDC |
| Dimensions | 225x225x80 mm |
| Air Flow | 591.5 CFM |
| Air Flow (m3) | 16.56m³/min |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Noise Level | 60 dB(A) |
| Power Rating | 45 W |
| Fan Speed | 2750 RPM |
| Termination | Terminal Block |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Approval Agency | CCC, CSA, EAC, UL |
| Weight | 4.7 lbs (2.1 kg) |
| Subcategory | Tubeaxial |
| Shipping Weight | 2.5 kg |
| Product PDF | W1G200-HH01-52-ebmpapst.pdf |
