Description

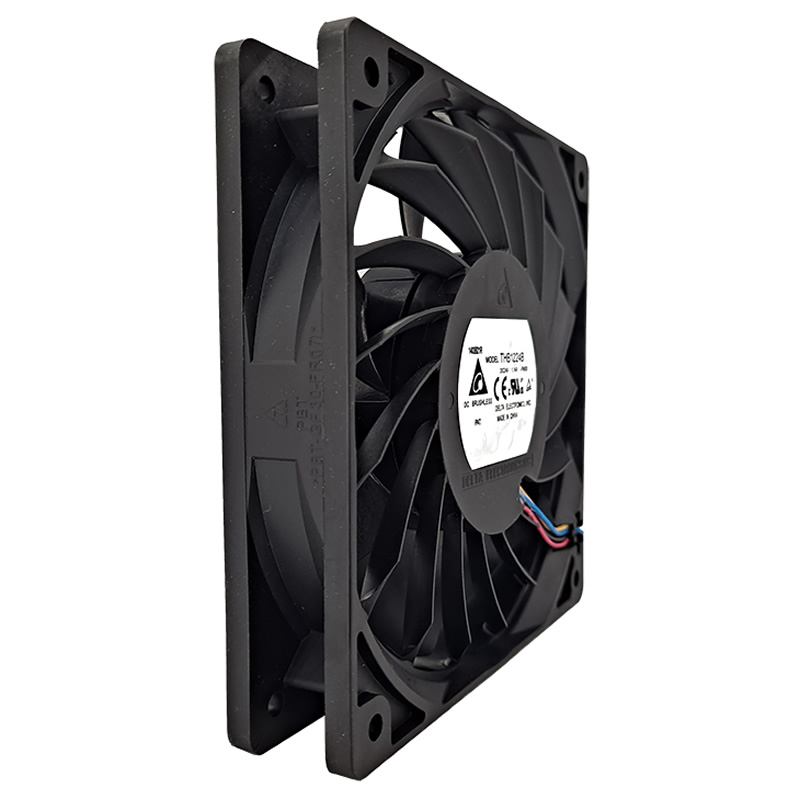

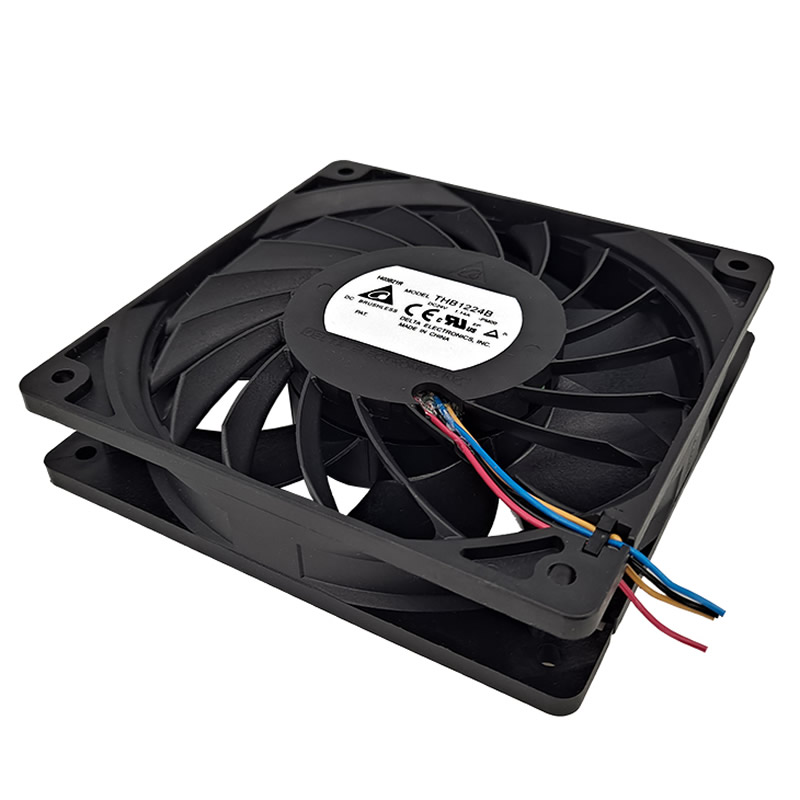

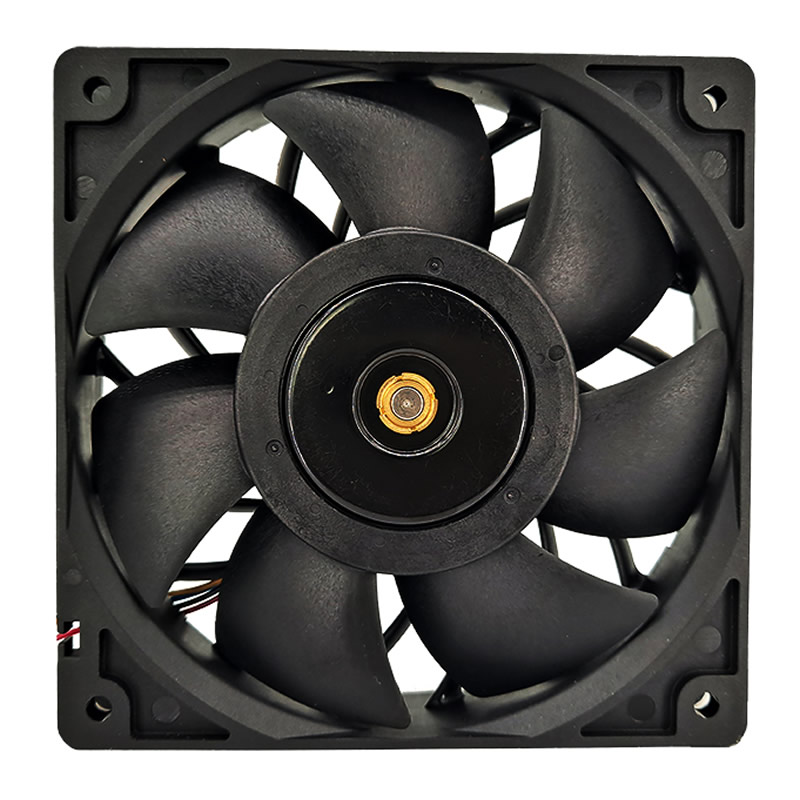

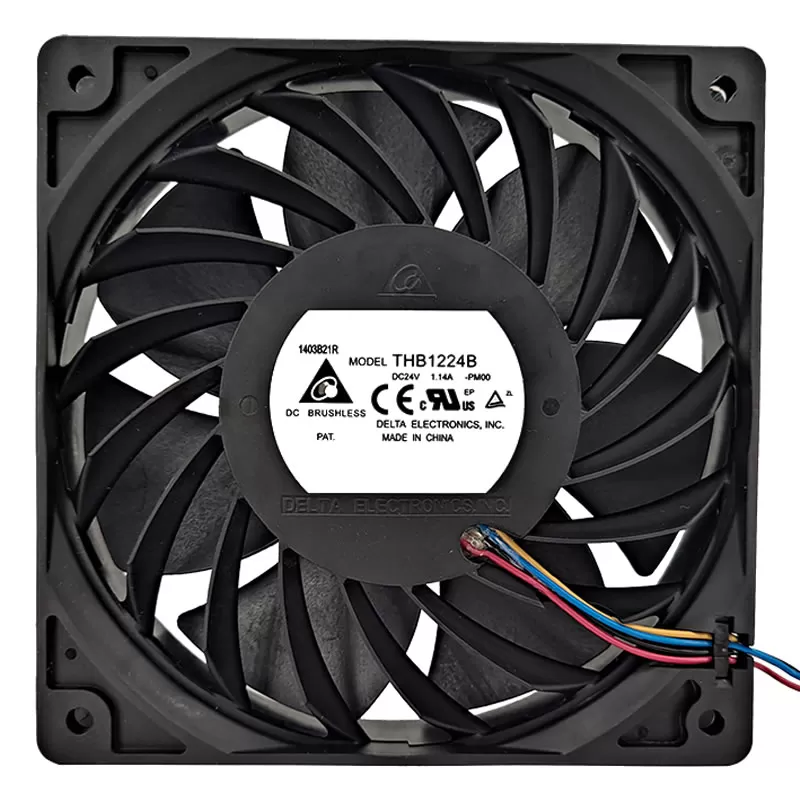

THB1224B-PM00 Delta 120x120x25.40mm Ball 24VDC 1.14A 174.73CFM(4.948m3/min) 2.139inchH2O(54.33mmH2O) 65.0dB(A) 22.80W 8300RPM 4wireleads fan
Specifications
| Model | THB1224B-PM00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 120x120x25.40 mm |
| Fan Type | DC |
| Approval Agency | CE, cURus, TUV |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| IP Rating | IP55 |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | THB |
| Air Flow (m3) | 4.948 m3/min |
| Termination | 4 wire leads |
| Fan Speed | 8300 RPM |
| Power Rating | 22.80 W |
| Noise Level | 65.0 dB(A) |
| Static Pressure | 2.139 inchH2O (54.33 mmH2O) |
| Air Flow | 174.73 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 1.14 A |
| Operating Voltage | 18 ~ 27.5 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Number of blades | 7 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | THB1224B-PM00-Delta.pdf |
