Description

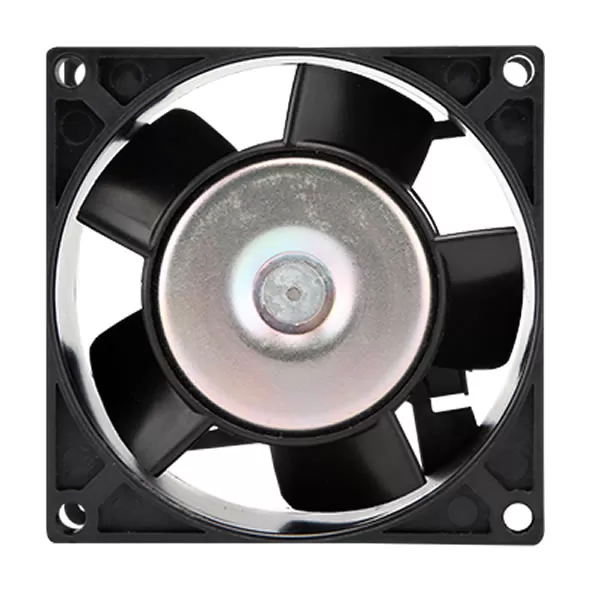

STD12K3E2X-E3 Comair Rotron 17001132A 80x80x32mm 12VDC 0.38A 4.4W 4200RPM 38CFM 64.6m³/h 44.2dB(A) Ball 0.33inH2O 81Pa 4 Wire Leads Axial DC fan
Specifications
| Model Number | STD12K3E2X-E3 |
|---|---|
| Air Flow (m3) | 64.6 m³/h |
| Weight | 180 g |
| Manufacturer | Comair Rotron |
| Series | Sprint DC |
| Dimensions | 80x80x32 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 6 – 18VDC |
| Current Rating | 0.38 A |
| Power Rating | 4.4 W |
| Fan Speed | 4200 RPM |
| Air Flow | 38 CFM |
| Part Number | 17001132A |
| Bearing Type | Ball Bearing |
| Noise Level | 44.2 dB(A) |
| Static Pressure | 0.33 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 4 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 81 Pa |
| Product PDF | STD12K3E2X-E3-Comair-Rotron.pdf |
