Description

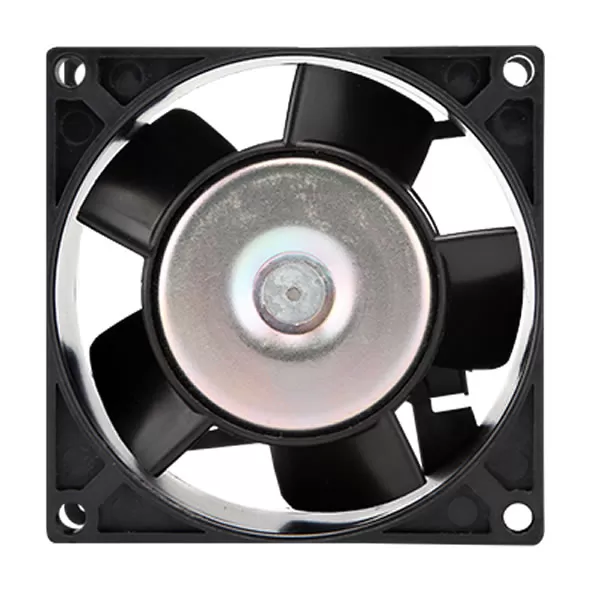

ST48K3 Comair Rotron 19039286A 80x80x32mm 48VDC 0.11A 5.3W 4200RPM 38CFM 64.6m³/h 44.2dB(A) Ball 0.33inH2O 81Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | ST48K3 |
|---|---|
| Air Flow | 38 CFM |
| Weight | 180 g |
| Manufacturer | Comair Rotron |
| Series | Sprint DC |
| Dimensions | 80x80x32 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 56VDC |
| Current Rating | 0.11 A |
| Power Rating | 5.3 W |
| Fan Speed | 4200 RPM |
| Air Flow (m3) | 64.6 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039286A |
| Noise Level | 44.2 dB(A) |
| Static Pressure | 0.33 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 81 Pa |
| Product PDF | ST48K3-Comair-Rotron.pdf |
