Description
The ebmpapst S2E250-BM06-01 is a high-performance AC axial fan designed for industrial ventilation, cooling equipment, and electronic enclosure applications. Manufactured by ebmpapst, this fan provides reliable airflow performance, efficient air circulation, and long-term operational stability for demanding industrial environments.
The S2E250-BM06-01 features a 250 mm axial impeller with a robust AC motor design and operates on 230 VAC single-phase power. The fan is suitable for both 50 Hz and 60 Hz applications, providing dependable cooling performance for machinery, HVAC systems, control cabinets, and OEM equipment.
This model is equipped with a ball bearing motor system, 7 sickled blades, and an integrated thermal overload protector for reliable continuous operation. The durable construction, IP44 protection rating, and compact design make the ebmpapst S2E250-BM06-01 a suitable solution for industrial air movement and thermal management applications.
Key Features
- Original ebmpapst S2E250-BM06-01 AC axial fan
- 250 mm fan size
- 230 VAC single-phase AC motor
- 50 Hz / 60 Hz operation

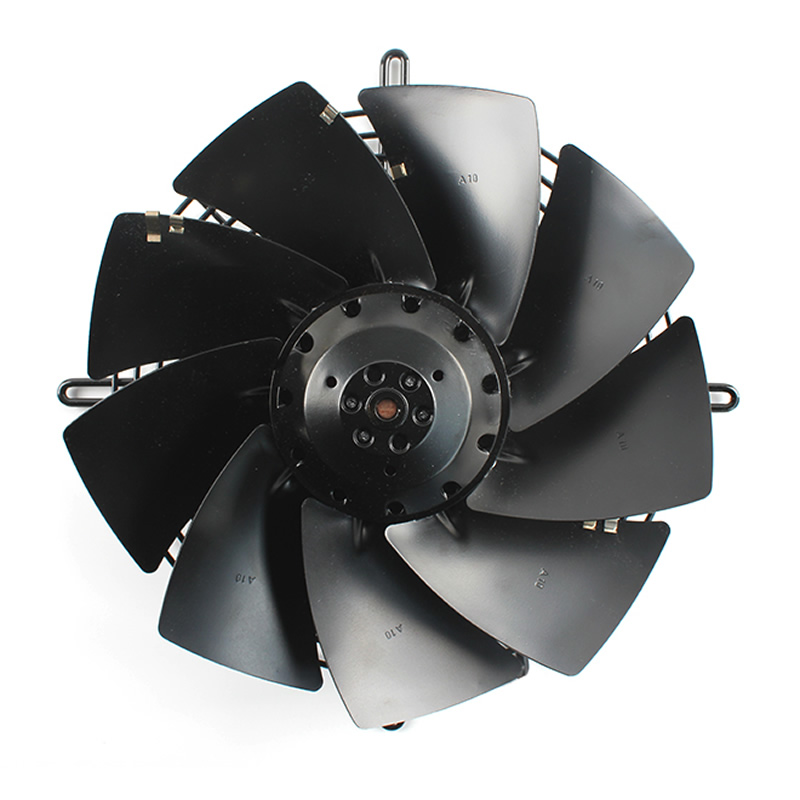

- 7 sickled blade impeller design
- Ball bearing motor system
- Integrated thermal overload protector
- IP44 protection rating
- Designed for continuous industrial operation
Technical Specifications
| Brand | ebmpapst |
| Model | S2E250-BM06-01 |
| Fan Type | AC Axial Fan |
| Motor Type | AC Motor |
| Motor Model | M2E068-CF |
| Rated Voltage | 230 VAC |
| Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Fan Size | 250 mm |
| Blade Number | 7 |
| Bearing Type | Ball Bearing |
| Protection Rating | IP44 |
| Insulation Class | B |
| Operation Mode | S1 Continuous Operation |
| Weight | 1.9 kg |
Performance Data
| Frequency | 50 Hz | 60 Hz |
| Speed | 2450 RPM | 2600 RPM |
| Power Input | 115 W | 150 W |
| Current | 0.51 A | 0.66 A |
| Air Flow | 1820 m³/h | 1970 m³/h |
| Sound Pressure Level | 69 dB(A) | 71 dB(A) |
Applications
- Industrial ventilation systems
- Electrical cabinet cooling
- HVAC equipment
- Machine cooling systems
- Automation equipment
- OEM equipment thermal management
Replacement Information
The ebmpapst S2E250-BM06-01 is an original 250 mm AC axial fan designed for reliable industrial cooling and ventilation applications. When replacing this model, verify voltage, frequency, mounting dimensions, airflow requirements, capacitor specification, and electrical connection details to ensure compatibility with the existing equipment.
Specifications
| Part Number | S2E250-BM06-01 |
|---|---|
| Manufacturer | ebmpapst |
| Series | S2E250 |
| Fan Type | AC |
| Voltage Rating | 230 VAC |
| Dimensions | 290×76.40 mm |
| Static Pressure | 0.341 in H2O (85.0 Pa) |
| Bearing Type | Ball Bearing |
| Subcategory | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Power Rating | 150 W |
| Fan Speed | 2600 RPM |
| Termination | 4 Wire Leads with Splice Terminals |
| IP Rating | IP44 |
| Operating Temperature | -13 ~ 122°F (-25 ~ 50°C) |
| Approval Agency | CCC, CE, EAC |
| Fan Size | Ø 250 mm |
| Voltage Rated | 230 VAC |
| Cooling Type | Axial Fan |
| Air Flow Range | 500 – 1500 CFM ( 850 – 2550 m³/h ) |
| Static Pressure Range | 50 – 120 mmH₂O ( 500 – 1200 Pa ) |
| Fan Speed Range | 2,000 – 4,500 RPM |
| Noise | 60 – 75 dB(A) (High Performance) |
| Shipping Weight | 3 kg |
