RG160-28/56S ebmpapst

Description

RG160-28/56S ebmpapst AC 2750RPM 202m3/h 230VAC Ball Bearing 47W 2Wire Leads centrifugal compact fan

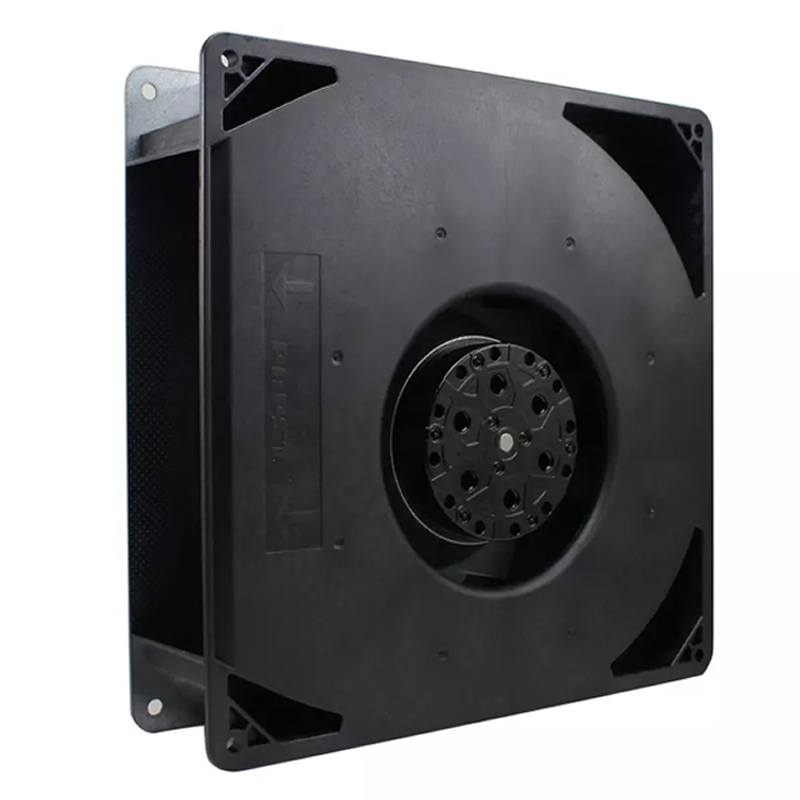

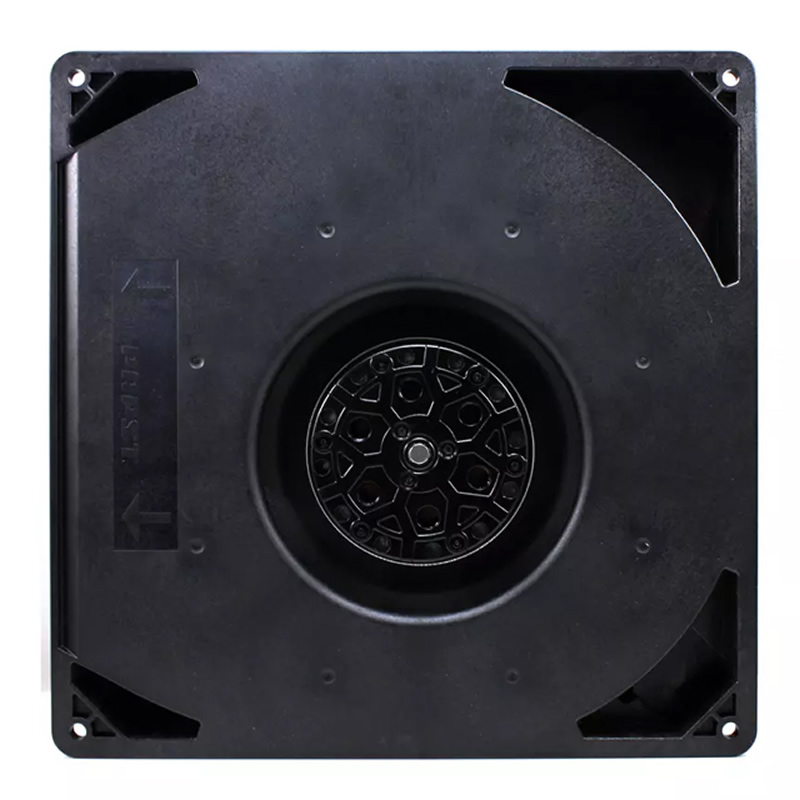

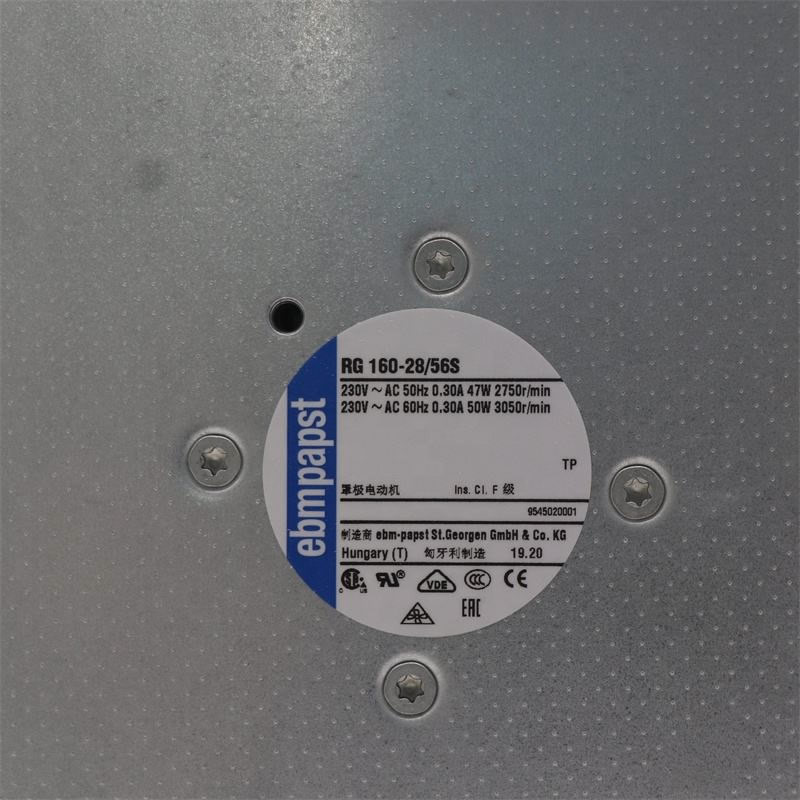

The RG160-28/56S compact centrifugal fan, produced by ebm-papst, is a single-inlet unit driven by single-phase 230VAC/50Hz power. It operates at 2750rpm speed with 47W power consumption, suitable for environments ranging from -30°C to 70°C, delivering an airflow of 202m³/h and a sound power level of 6.6 bels. Featuring a backward-curved impeller design, the fan incorporates an impeller made of glass-fiber reinforced PA plastic, a volute casing constructed from glass-fiber reinforced plastic, and a base plate of galvanized steel sheet. With dimensions of 220×220×56mm and weighing 1.7kg, it discharges radial airflow through the housing window and rotates counterclockwise. Equipped with ball bearings, it has an L10 life of 30,000 hours at 40°C (15,000 hours at maximum operating temperature). Connected via a 2-core AWG18 cable, it includes integrated thermal overload protection and is certified by VDE, CSA, UL, and CE, making it suitable for heat dissipation and ventilation in industrial equipment.

Specifications
