Description
R4E355-AK05-12 ebmpapst 355mm 230VAC Ball Bearing 160W/180W 0.8A/1.14A 1400RPM/1600RPM IP44 AC centrifugal fan

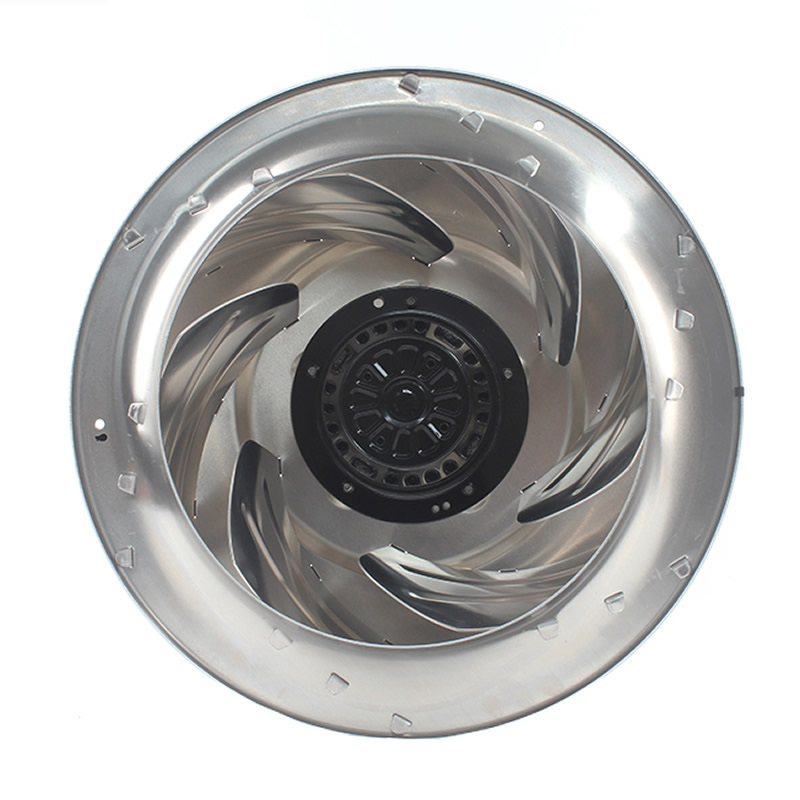

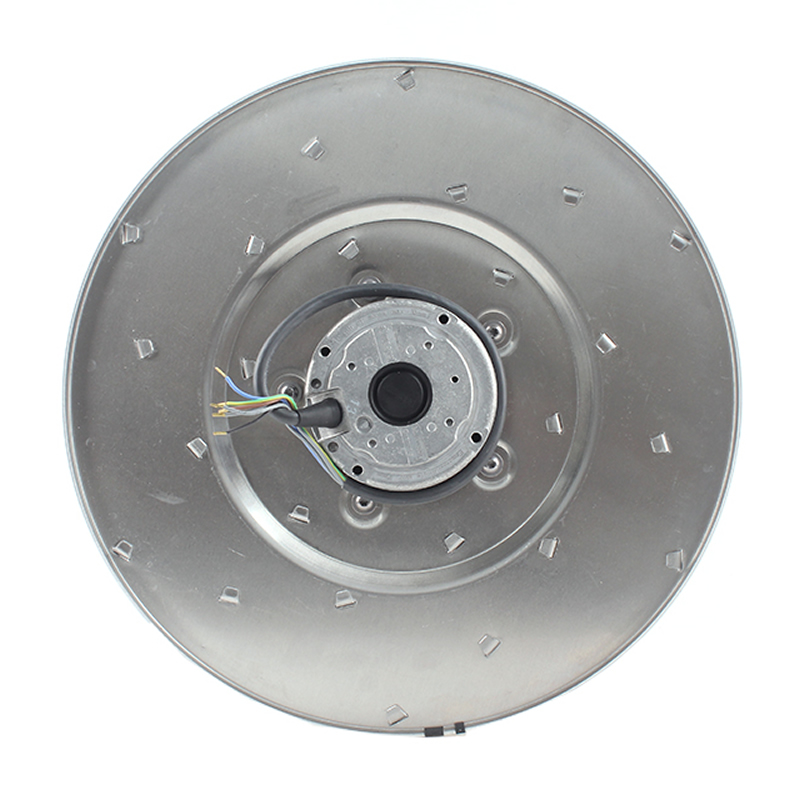

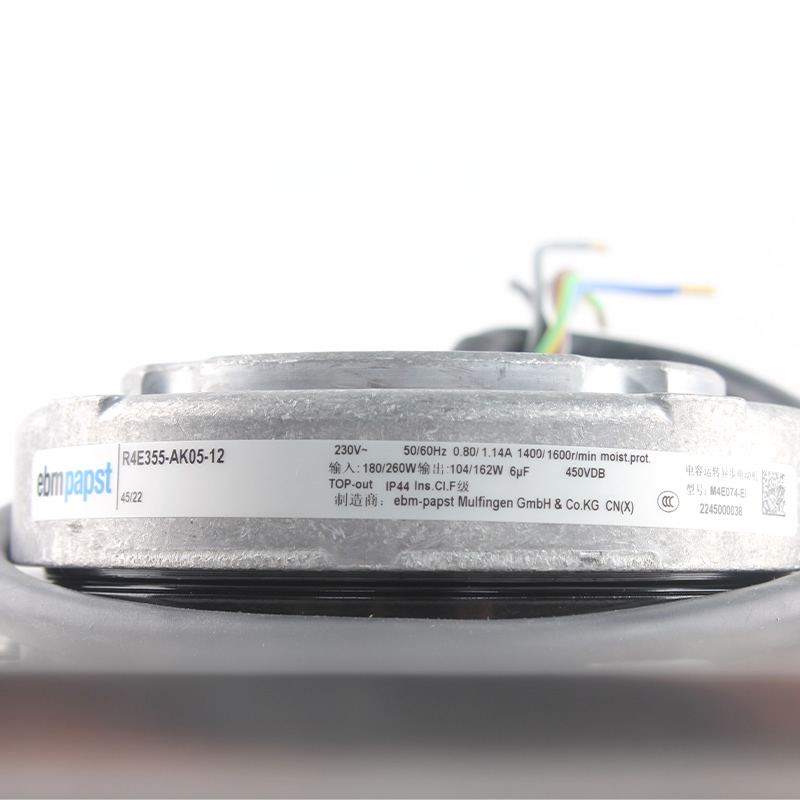

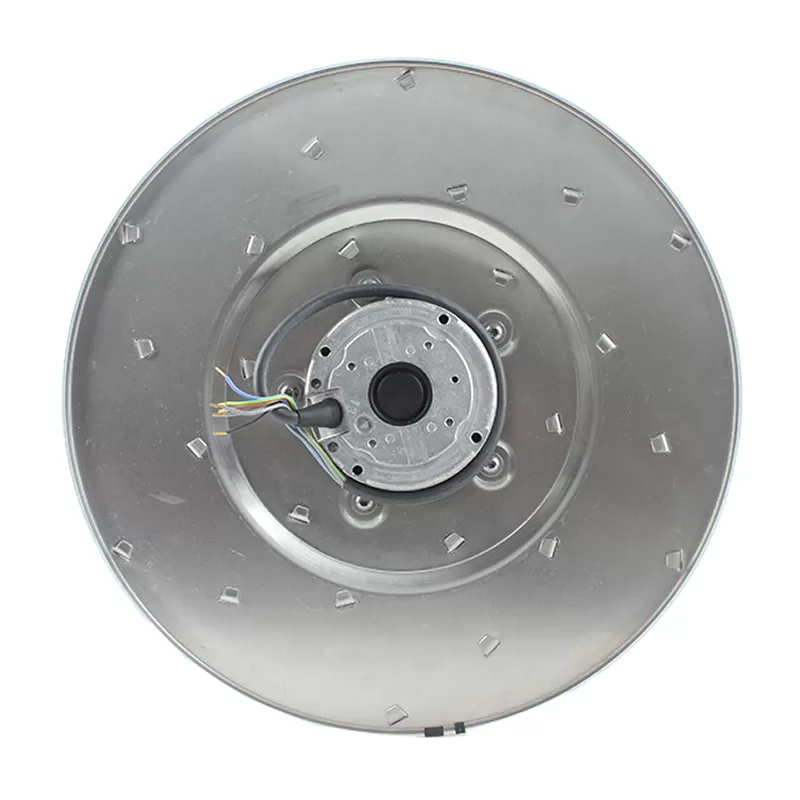

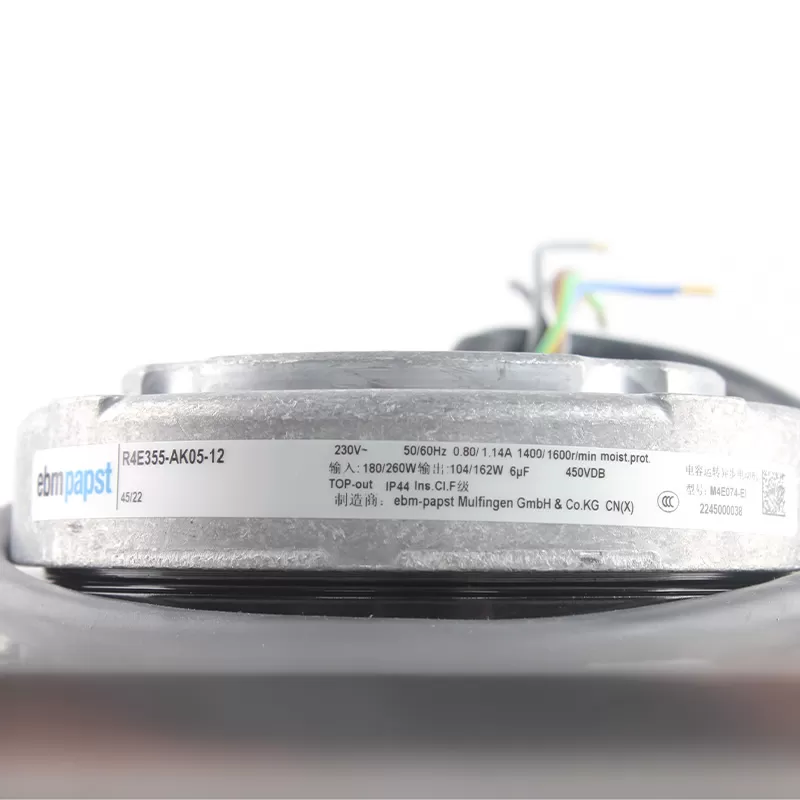

Model R4E355-AK05-12 is a 355mm AC single-phase centrifugal fan manufactured by ebm-papst, designed to optimize airflow in applications with moderate static pressure. It utilizes an M4E074-EI motor, operating at 230V AC, achieving 1400 RPM and 180W power at 50Hz, and 1600 RPM and 260W power with currents of 0.8A and 1.14A respectively at 60Hz. The fan features a robust construction with an aluminum impeller and ball bearings, weighing approximately 4.7kg. Its protection rating is IP44, insulation class F, includes internally wired thermal overload protection, and can operate continuously within ambient temperatures from -25°C up to the specified maximum (varying with frequency). Flexible mounting options and condensation drainage holes on the rotor side enhance its application versatility.
ebmpapst FFU fan Air conditioning centrifugal fan
Specifications
| Model | R4E355-AK05-12 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 355 mm |
| Voltage Rating | 230 VAC |
| Motor | M4E074-EI |
| Number of blades | 6 |
| Frequency | 50/60 Hz |
| Fan Type | AC |
| Bearing Type | Ball Bearing |
| Phase | 1~ |
| Power Rating | 160 W, 180 W |
| Current Rating | 0.8 A, 1.14 A |
| Motor Capacito | 6 µF，450 VDB |
| Fan Speed | 1400 RPM, 1600 RPM |
| IP Rating | IP44 |
| Subcategory | AC centrifugal fan |
