S4D300-AS34-30 ebmpapst

$289.00

Datesheet:S4D300-AS34-30.pdf

50 in stock

x
SKU: S4D300-AS34-30

Description

S4D300-AS34-30 ebmpapst 400VAC 300mm IP44 1400RPM 90W 0.15A Ball AC axial fan

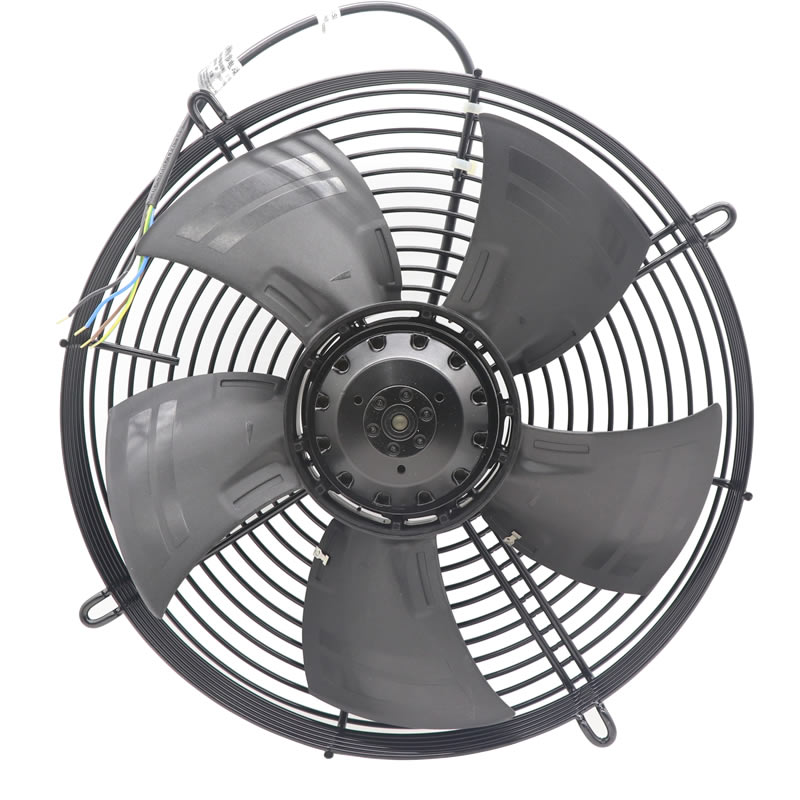

The S4D300-AS34-30 is a 3-phase AC axial fan from ebm-papst, featuring HyBlade® sickled blades (S series) with a guard grille for short nozzle. With a 300mm impeller diameter and 2.6kg mass, the impeller is made of fibreglass-reinforced PP plastic, while the guard grille is phosphated steel coated with black plastic. Rated at 400VAC (star connection), it runs at 1300/1400 min⁻¹ with 68/90W power input under 50/60Hz, offering max. back pressure of 60/70Pa and operating temperature of -25℃~60℃/55℃. With IP44 protection and class B insulation, the ball-bearing fan allows horizontal shaft or rotor-down mounting (rotor-up on request), featuring condensate discharge holes. Compliant with EN 60335-1 and CCC approved, it delivers max. air flow of 1705/2000 m³/h and max. inlet sound pressure level of 56/58dB(A) at 50/60Hz.

Specifications

Part Number

S4D300-AS34-30

Manufacturer

ebm-papst

Voltage Rating

400 VAC

Frequency

50/60 Hz

Fan Speed

1400 RPM

Power Rating

90 W

Current Rating

0.15 A

Weight

2.6 kg

Dimensions

300 mm

IP Rating

IP44

Operating Temperature

-40 ~ 176°F (-40 ~ 80°C)

Fan Type

AC

Subcategory

AC axial fan

Bearing Type

Ball Bearing

Approval Agency

CCC

Shipping Weight 6 kg
