Description
R4E355-AK05-05 ebmpapst 230VAC 360x167mm 1778.8CFM Ball 260W 1600RPM IP44 4 Wire Leads Motorized Impellers Thermal Overload Protection (TOP) AC centrifugal fan

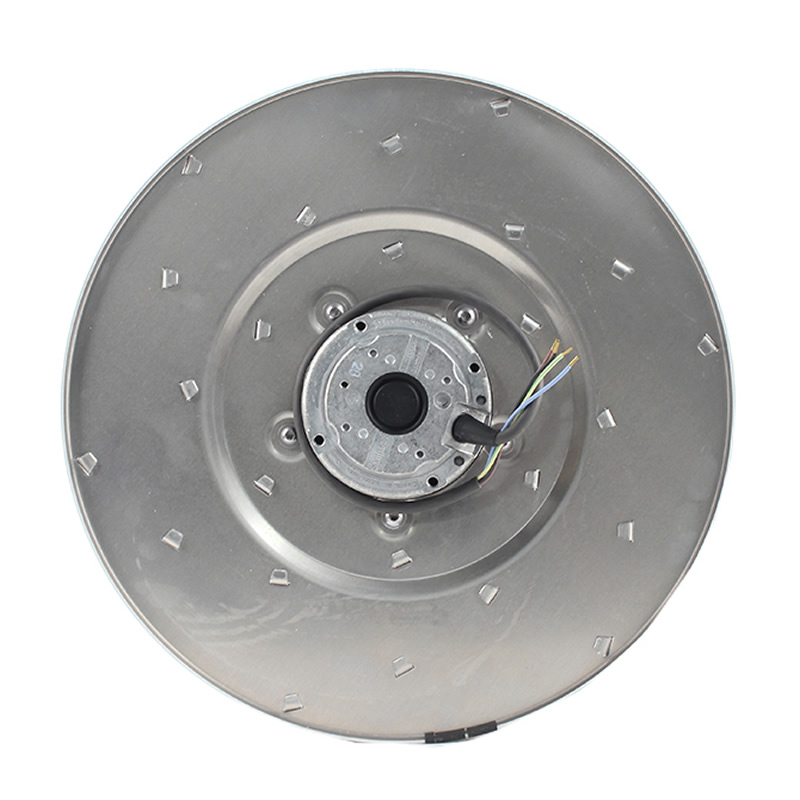

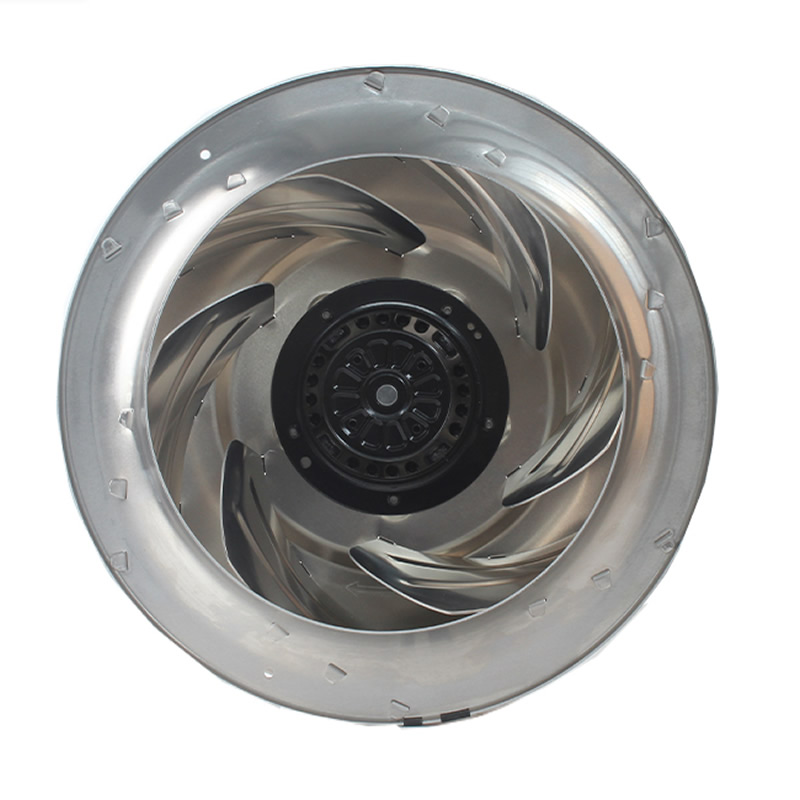

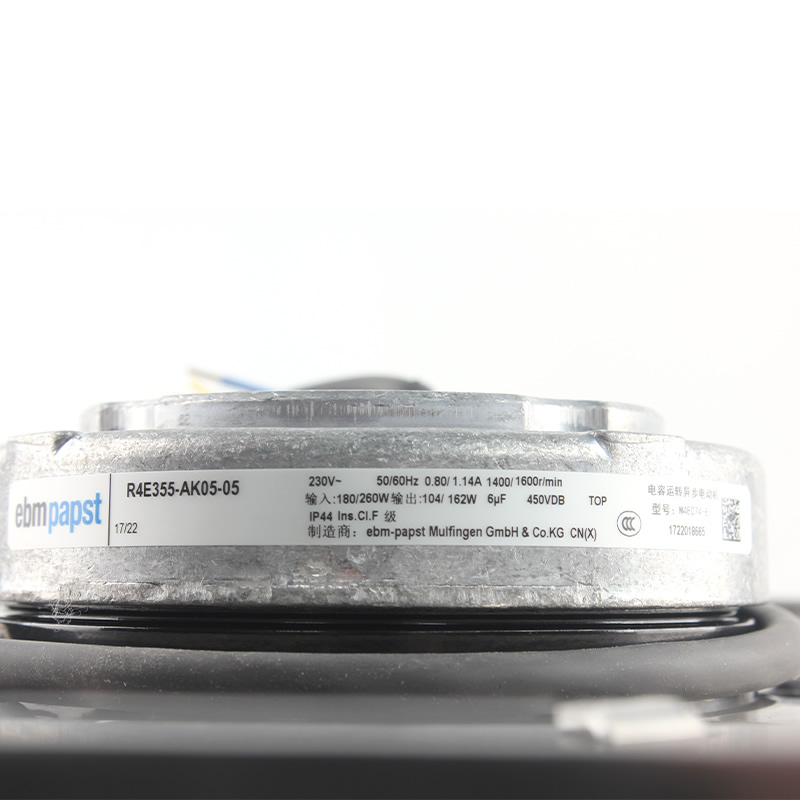

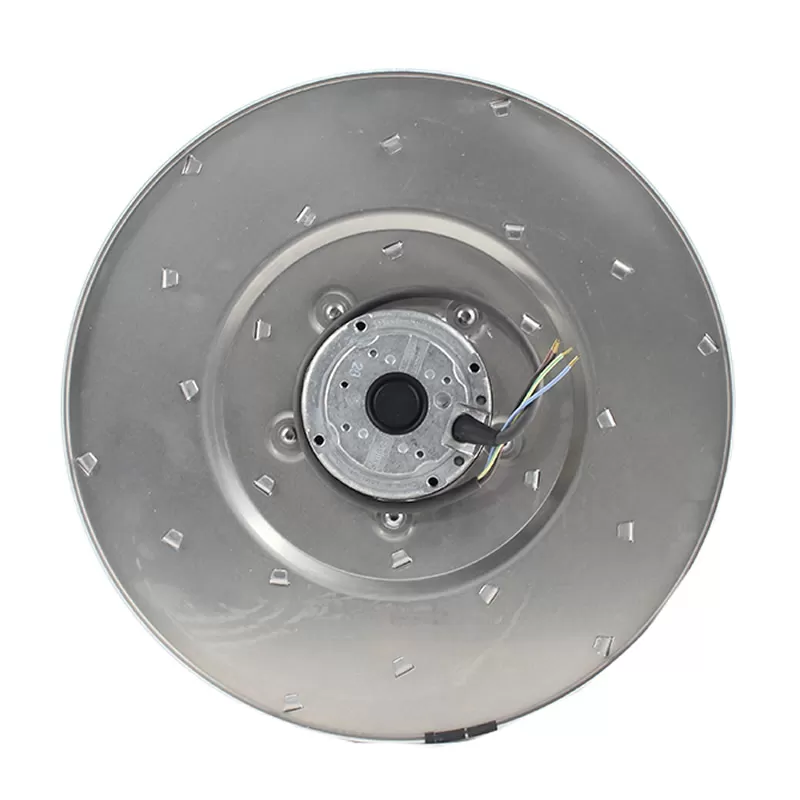

The R4E355-AK05-05 from ebm-papst is a radial fan designed for 230V AC power, adaptable to 50Hz and 60Hz frequencies. At 50Hz, it delivers 1400 RPM and 2580 m³/h airflow; at 60Hz, speed increases to 1600 RPM with airflow up to 2980 m³/h, with a proportional increase in power. Its 4.7 kg weight and IP44 protection ensure versatility and reliability across various ventilation and cooling applications.
Specifications
| Part Number | R4E355-AK05-05 |
|---|---|
| Manufacturer | ebm-papst |
| Series | R4E355 |
| Fan Type | AC |
| Voltage Rating | 230 VAC |
| Dimensions | 360×167 mm |
| Air Flow | 1778.8 CFM |
| Air Flow (m3) | 49.81m³/min |
| Bearing Type | Ball Bearing |
| Subcategory | Motorized Impellers |
| Features | Thermal Overload Protection (TOP) |
| Power Rating | 260 W |
| Fan Speed | 1600 RPM |
| Termination | 4 Wire Leads |
| IP Rating | IP44 |
| Operating Temperature | 95°F (35°C) |
| Approval Agency | CCC |
| Subcategory | AC centrifugal fan |
| Shipping Weight | 6 kg |
| Product PDF | R4E355-AK05-05-ebmpapst.pdf |
