Description
R2E250-RA50-01 ebmpapst 230VAC 250x99mm Ball 285W 2450RPM IP44 4 Wire Leads with Splice Terminals Motorized Impellers Capacitor Thermal Overload Protector (TOP) centrifugal fan

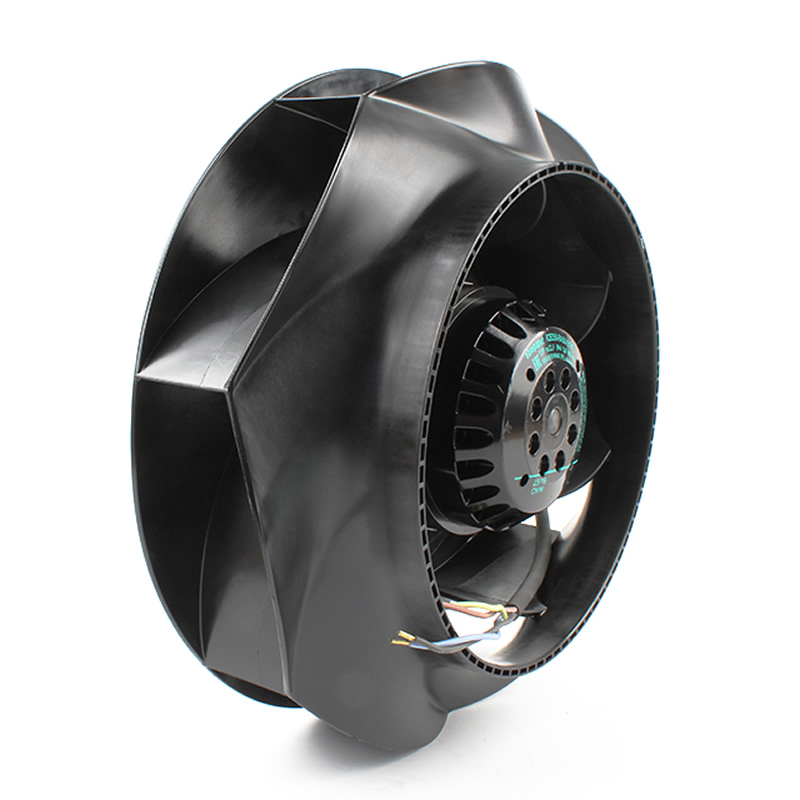

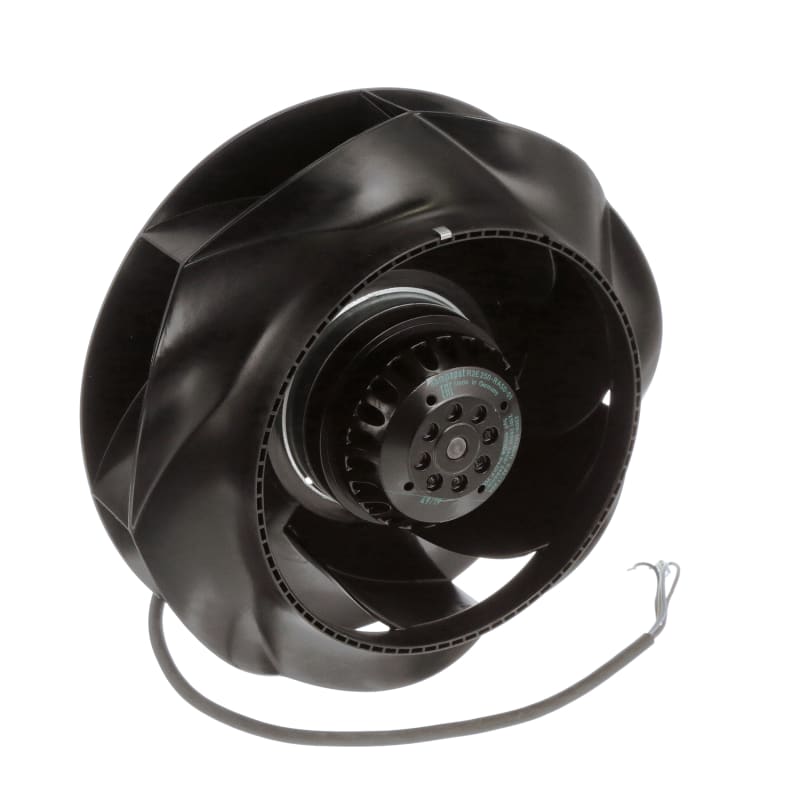

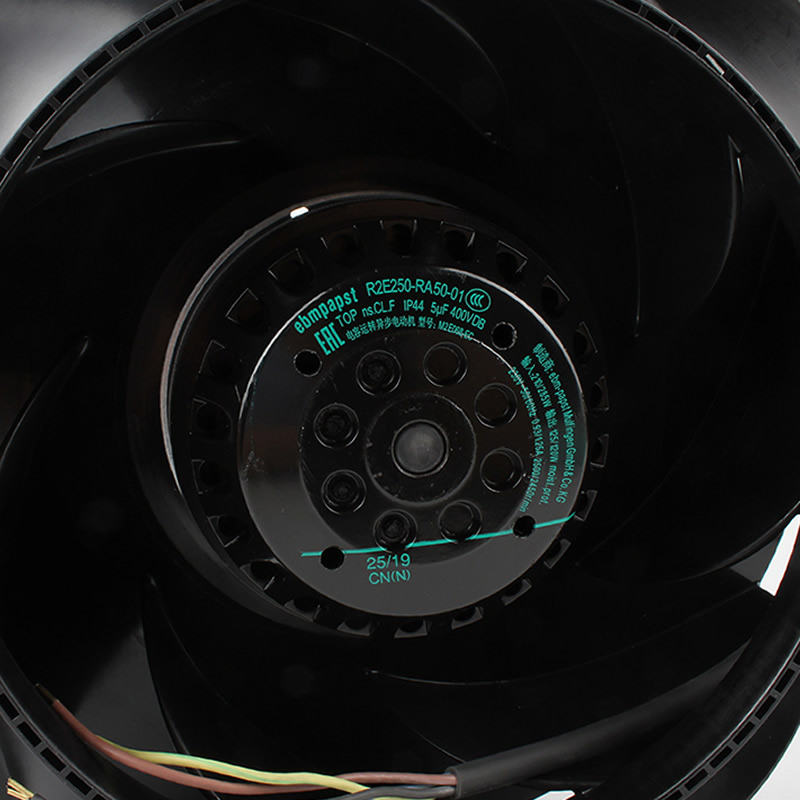

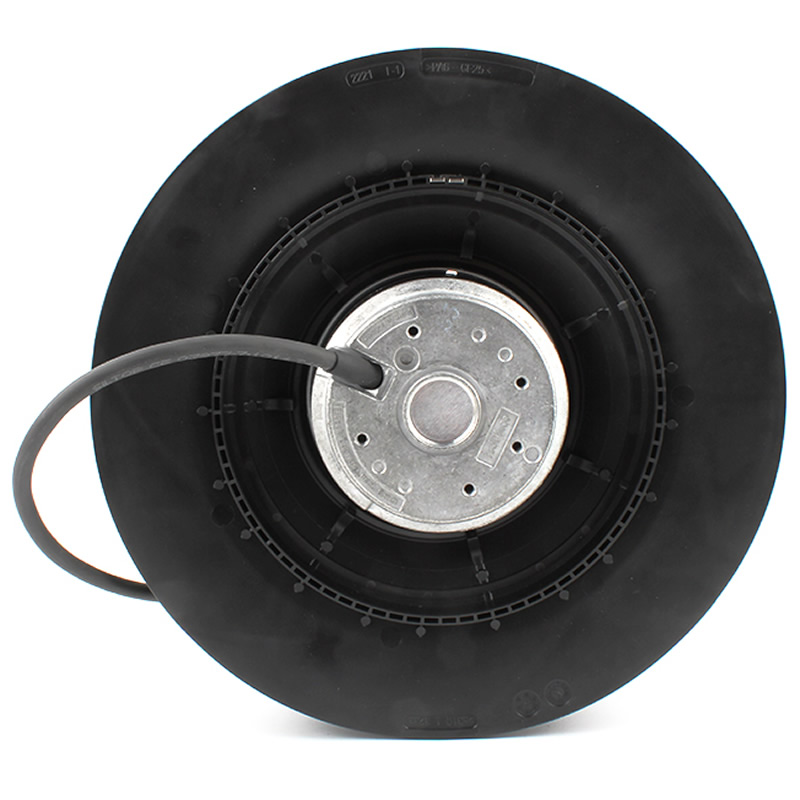

The R2E250-RA50-01 AC centrifugal fan by ebm-papst features a RadiCal backward-curved, single-intake design with an M2E068-EC motor, operating at 230VAC, 50Hz/60Hz, delivering 2500/2450rpm, 210/285W power consumption, 0.93/1.25A current draw, and a 5μF/400VDB capacitor. Measuring 250mm and weighing 2.8kg, its 7-blade impeller is made of PA plastic, rotating clockwise with IP44 protection and class “F” insulation. It operates at -25°C to 70°C (50Hz) or -25°C to 30°C (60Hz), supported by ball bearings for horizontal shaft or rotor-down installation (rotor-up optional). Equipped with internal thermal overload protection and certified by CCC/EAC, it achieves max airflow of 1425m³/h (50Hz) and 1500m³/h (60Hz) at 0Pa, with intake sound pressure as low as 59dB(A)/61dB(A).
Specifications
| Part Number | R2E250-RA50-01 |
|---|---|
| Manufacturer | ebm-papst |
| Series | R2E250RA |
| Fan Type | AC |
| Voltage Rating | 230 VAC |
| Dimensions | 250×99 mm |
| Bearing Type | Ball Bearing |
| Subcategory | Motorized Impellers |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Power Rating | 285 W |
| Fan Speed | 2450 RPM |
| Termination | 4 Wire Leads with Splice Terminals |
| IP Rating | IP44 |
| Operating Temperature | -13 ~ 86°F (-25 ~ 30°C) |
| Approval Agency | CCC, EAC |
| Subcategory | AC centrifugal fan |
