Description
DV4650-470 ebmpapst 230VAC 19W 0.12A 2650RPM Terminal Box AC axial fan

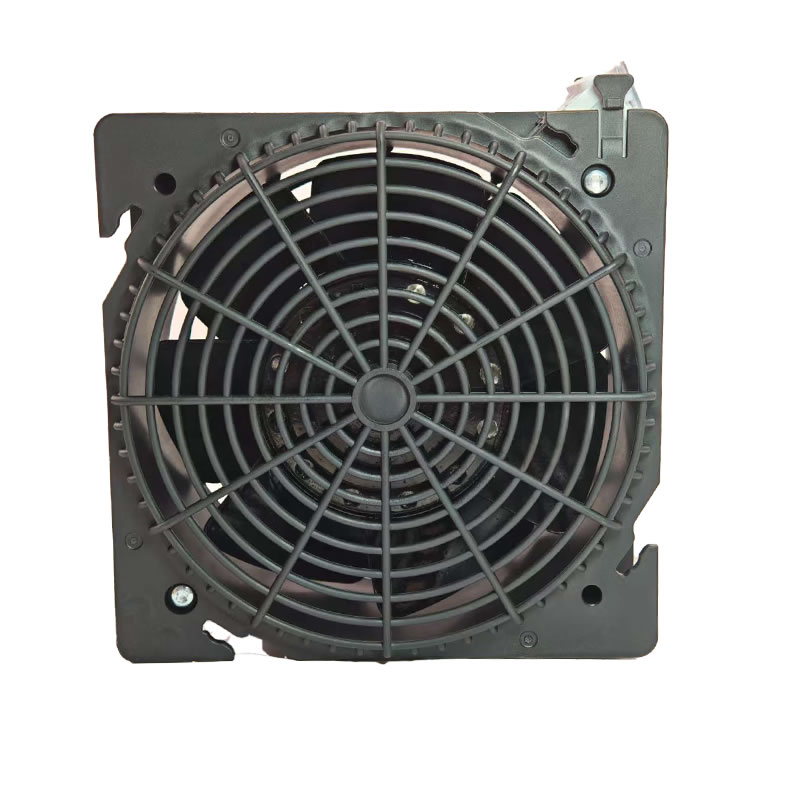

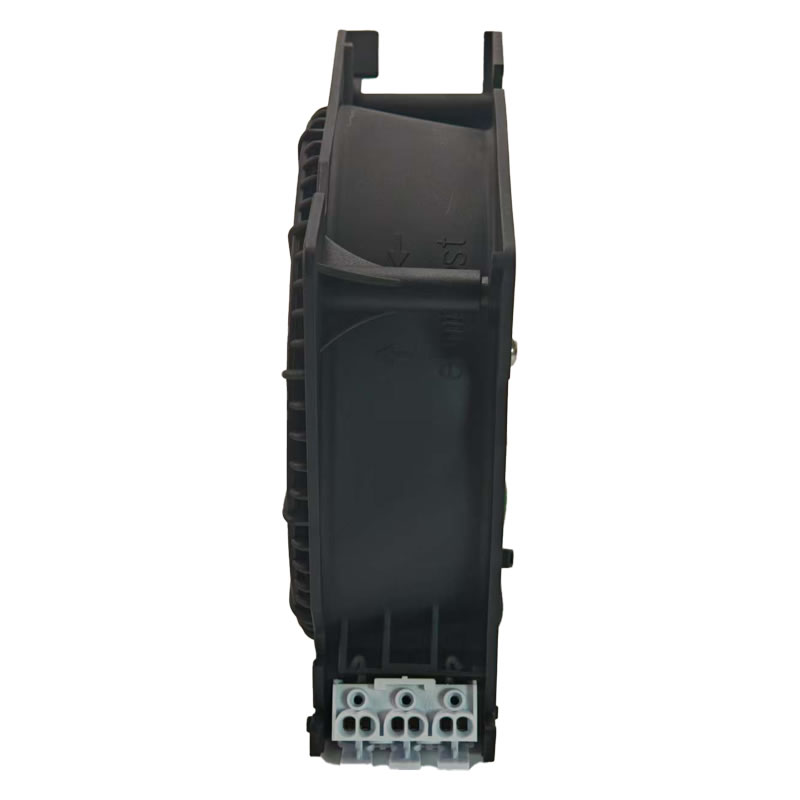

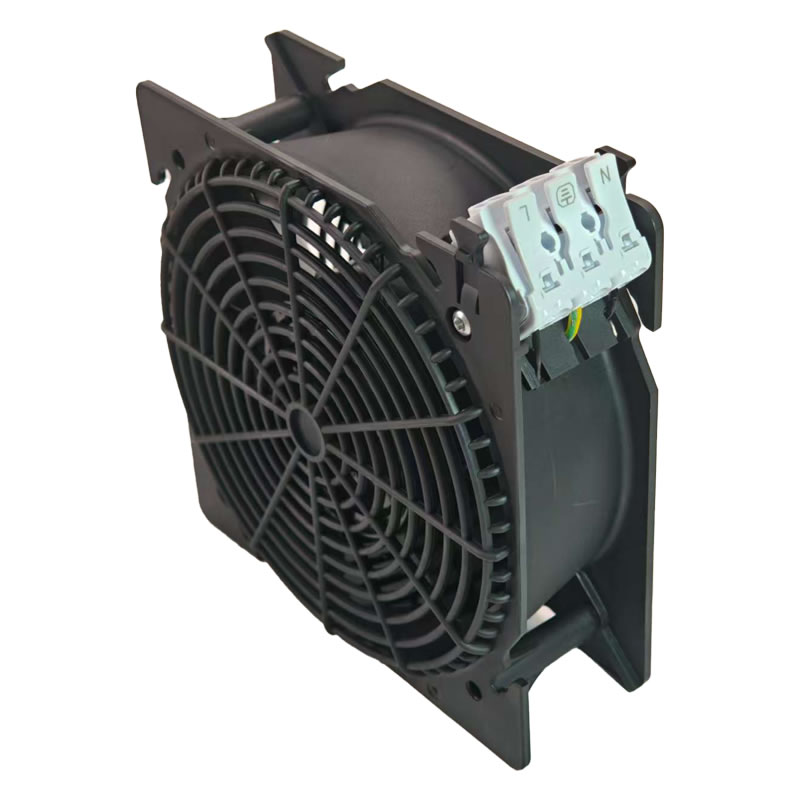

The ebmpapst DV4650-470 is an AC axial fan measuring 120mm x 120mm x 38mm. It operates on 230 VAC at both 50 Hz and 60 Hz frequencies. At 50 Hz, it draws 120mA of current and consumes 19W of power. At 60 Hz, it draws 110mA and consumes 18W. This fan achieves a speed ranging from 2600 to 3100 RPM and delivers an airflow of 94.2 CFM, with a typical noise level between 46 and 50 dB(A). Equipped with ball bearings and commonly featuring 2-wire leads, it is built with a plastic impeller and an aluminum frame. Weighing approximately 0.6 kg, it is designed for effective heat dissipation in various electronic and industrial cabinet cooling applications.
Specifications
| Model Number | DV4650-470 |
|---|---|
| Manufacturer | ebm-papst |
| Fan Type | AC |
| Bearing Type | Ball Bearing |
| Voltage Rating | 230 VAC |
| Power Rating | 19 W |
| Current Rating | 0.12 A |
| Fan Speed | 2650 RPM |
| Termination | Terminal Box |
| Category | Axial |
| Series | DV4650 |
| RoHS Status | ROHS3 Compliant |
| Shipping Weight | 1.5 kg |
