R2E225-BD92-09 ebmpapst

Description

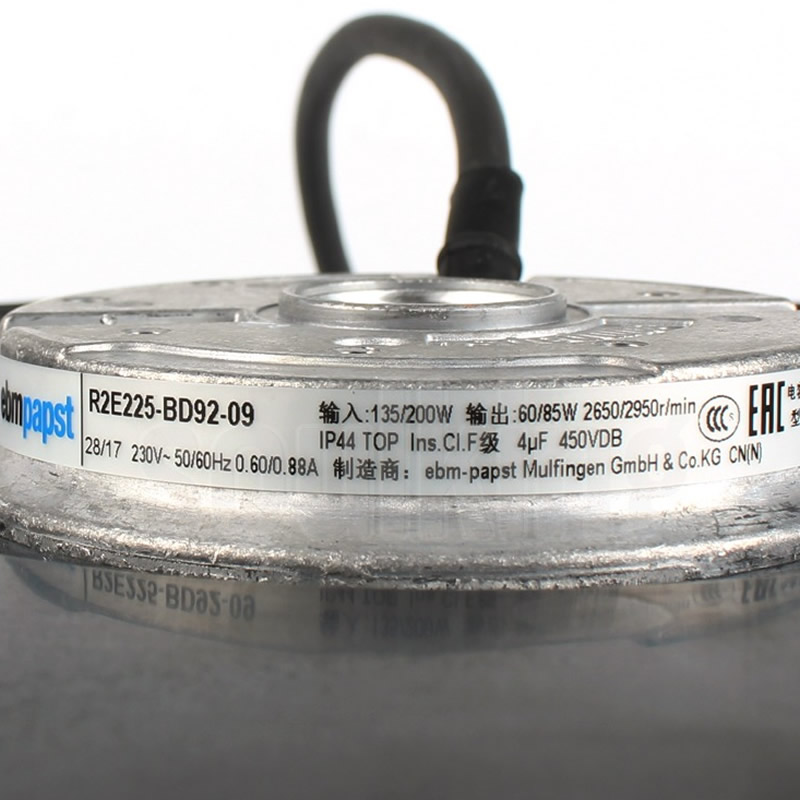

R2E225-BD92-09 ebmpapst 230VAC 225x99mm Ball 200W 2950RPM IP44 4 Wire Leads with Splice Terminals Motorized Impellers Capacitor, Thermal Overload Protector (TOP) AC Fan

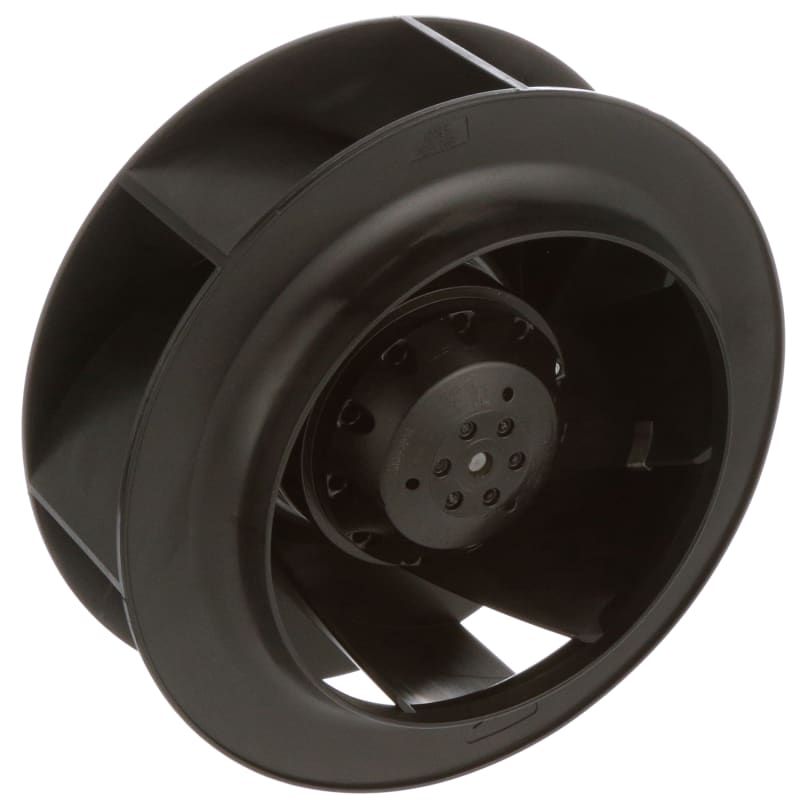

The R2E225-BD92-09 AC centrifugal fan by ebm-papst is a backward-curved single-inlet model for 230VAC single-phase power, available in 50Hz/60Hz operations: 2650rpm/135W/0.6A at 50Hz and 2950rpm/200W/0.88A at 60Hz, both with 4μF/450VDB capacitors and 55°C max. ambient temperature. With a 225mm diameter and 2.28kg mass, it features 7 fiberglass-reinforced PA6 plastic blades, a black-coated rotor, IP44 protection (installation-dependent), class F insulation, and supports horizontal shaft or rotor-down mounting (rotor-up on request). Equipped with ball bearings (S1 duty), rotor-side condensate drains, and 4-core silicone cables with crimped brass terminals, it requires an optional inlet nozzle (96358-2-4013, non-standard). Air performance includes 1210m³/h (0Pa)/375m³/h at 400Pa for 50Hz, and 1350m³/h (0Pa)/475m³/h at 450Pa for 60Hz, measured per ISO 5801. Certified by CE, EN 60335-1, and CCC, with -40°C to 80°C storage, it suits industrial ventilation, noting installation impacts on protection and performance.
