Description

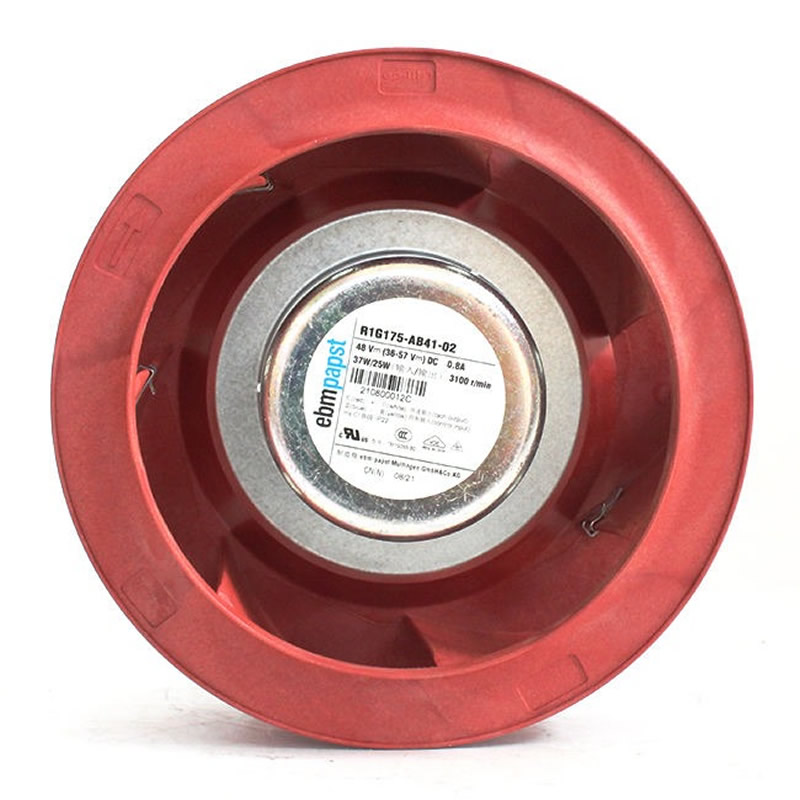

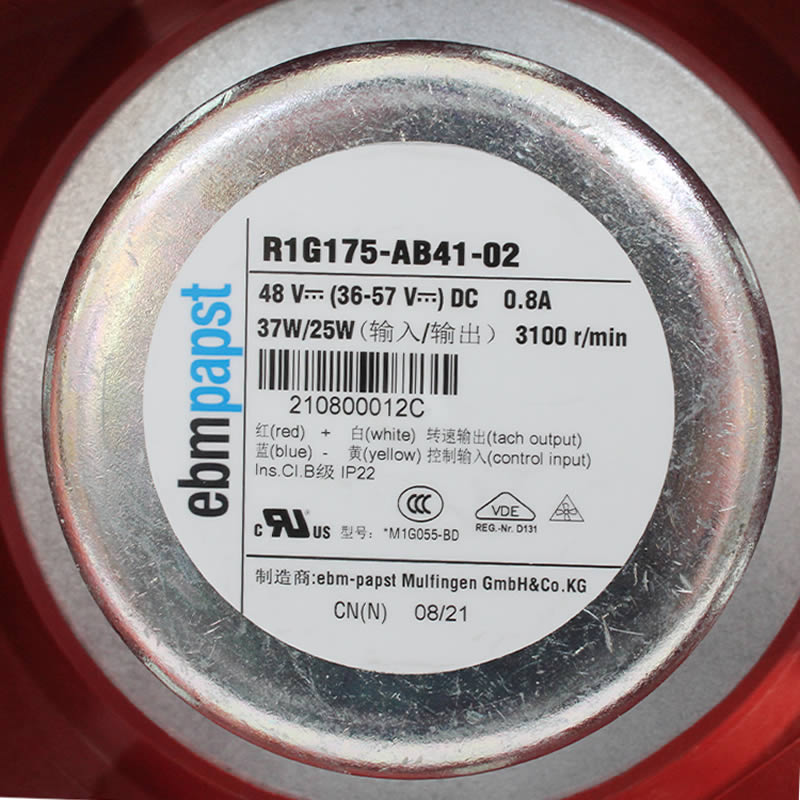

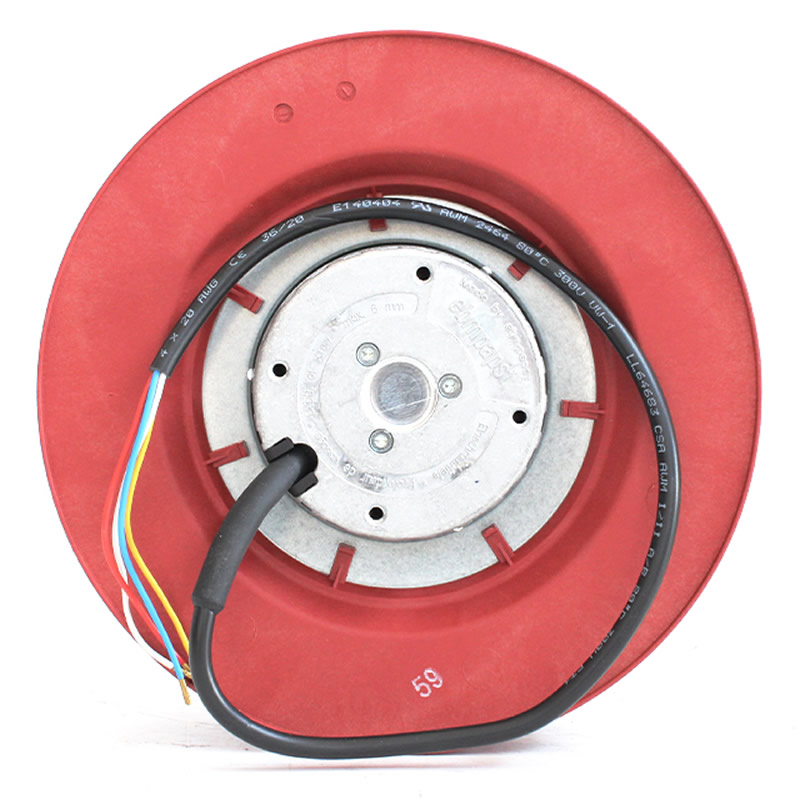

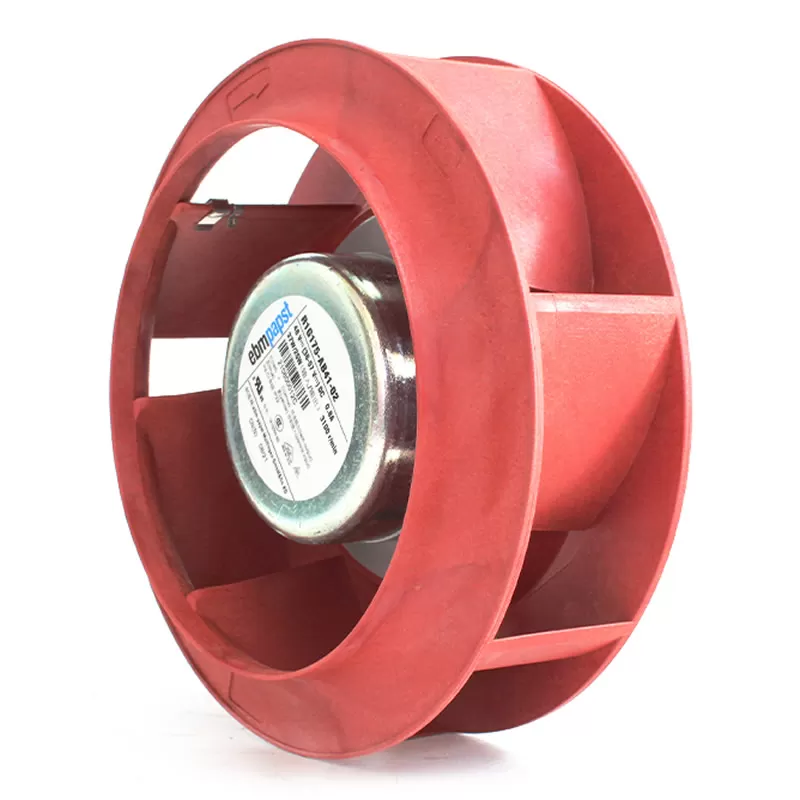

R1G175-AB41-02 ebmpapst 48VDC 175x69mm 330CFM Ball 34W 3100RPM 4 Wire Leads PWM Control Speed Sensor (Tach) EC centrifugal fan
Specifications
| Part Number | R1G175-AB41-02 |
|---|---|
| Manufacturer | ebm-papst |
| Fan Type | EC |
| Dimensions | 175×69 mm |
| Voltage Rating | 48 VDC |
| Current Rating | 0.8 A |
| Air Flow | 330 CFM |
| Air Flow (m3) | 9.24m³/min |
| Bearing Type | Ball Bearing |
| Noise Level | 65 dB(A) |
| Features | PWM Control, Speed Sensor (Tach) |
| Power Rating | 34 W |
| Fan Speed | 3100 RPM |
| Termination | 4 Wire Leads |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Approval Agency | CCC, CSA, UL, VDE |
| Weight | 1.6 lbs (725.7 g) |
| Operating Voltage | 36 ~ 57 VDC |
| Number of blades | 7 |
| Series | R1G175 |
| Subcategory | EC centrifugal fan |
| Shipping Weight | 1.5 kg |
| Product PDF | R1G175-AB41-02-ebmpapst.pdf |
