Description

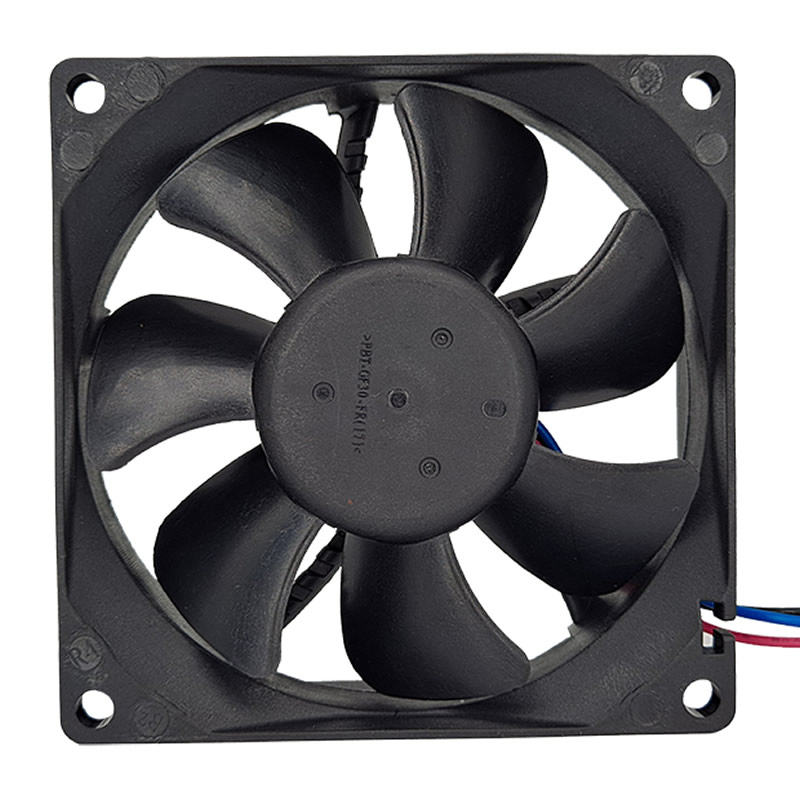

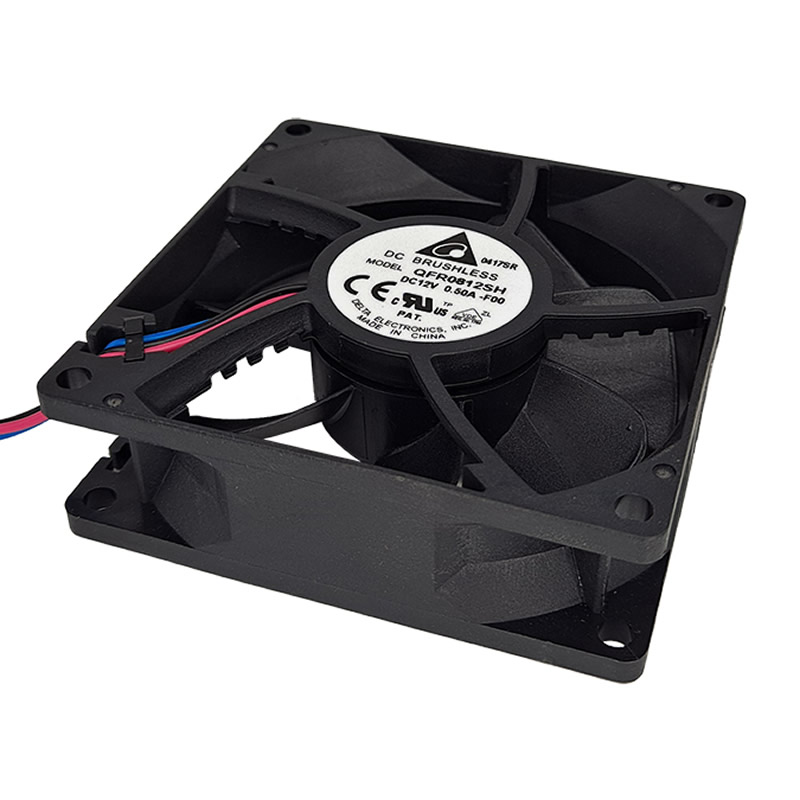

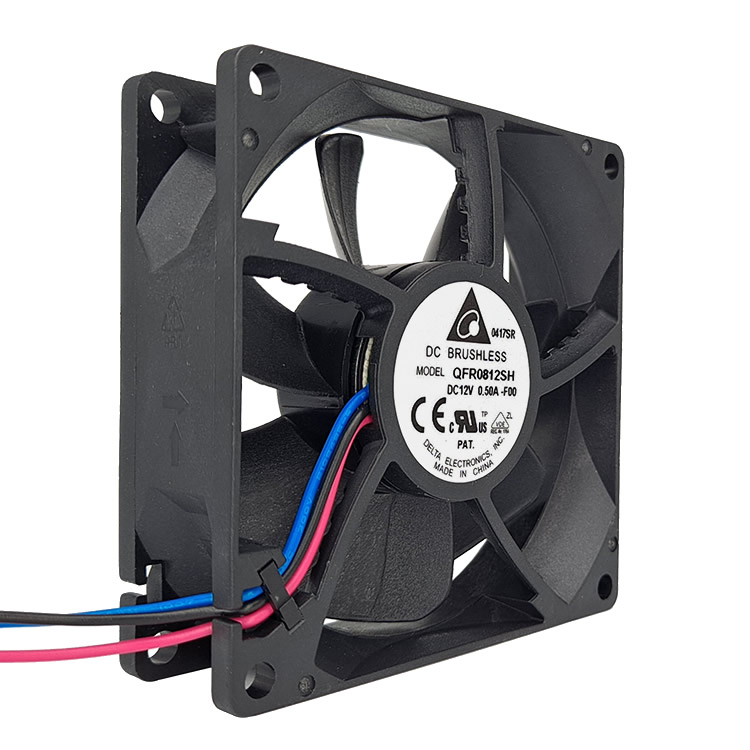

QFR0812SH-F00 Delta 80x80x25.40mm Ball 12VDC 54.57CFM(1.545m3/min) 0.331inchH2O(8.40mmH2O) 41.2dB(A) 3.96W 4300RPM 3wireleads fan
Specifications
| Model | QFR0812SH-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 80x80x25.40 mm |
| Power Rating | 3.96 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | QFR |
| Air Flow (m3) | 1.545 m3/min |
| Fan Speed | 4300 RPM |
| Fan Type | DC |
| Static Pressure | 0.331 inchH2O (8.40 mmH2O) |
| Noise Level | 41.2 dB(A) |
| Air Flow | 54.57 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.254 lb (115.21 g) |
| Category | Axial |
| Current Rating | 0.33 A |
| Operating Voltage | 5 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Termination | 3 wire leads |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | QFR0812SH-F00-Delta.pdf |
