Description

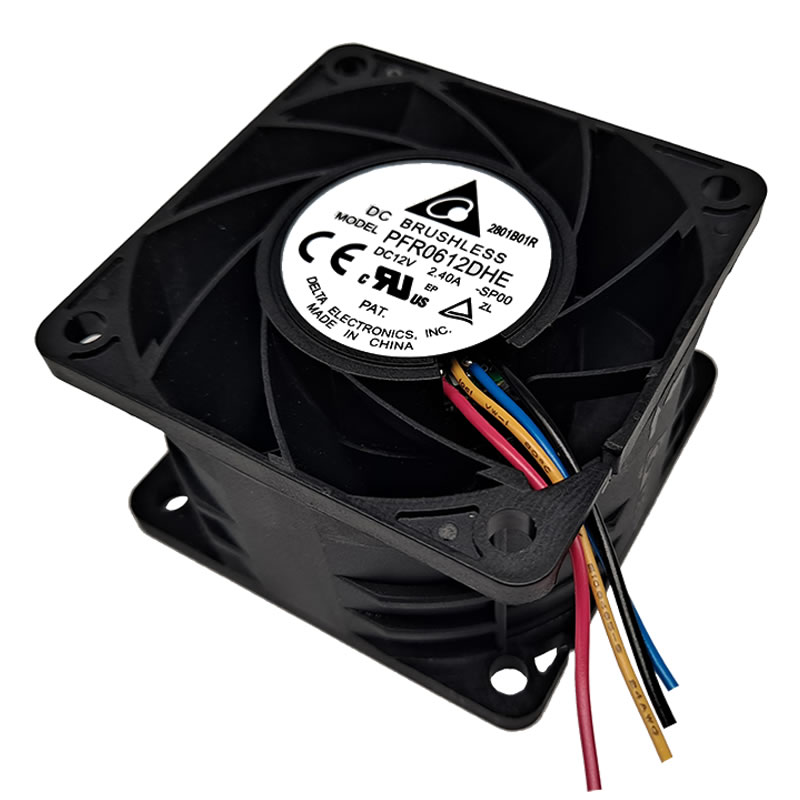

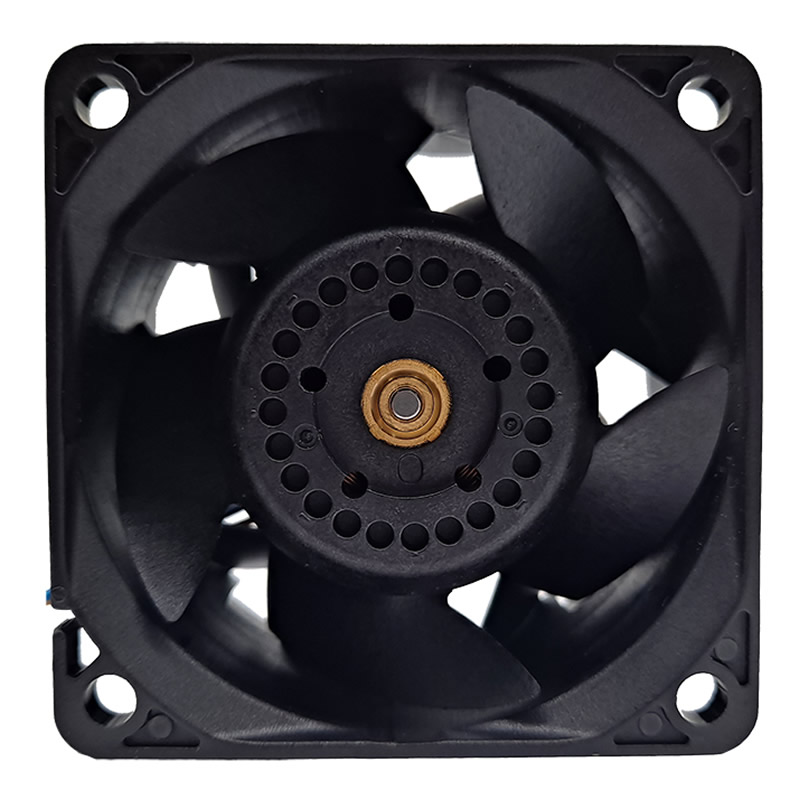

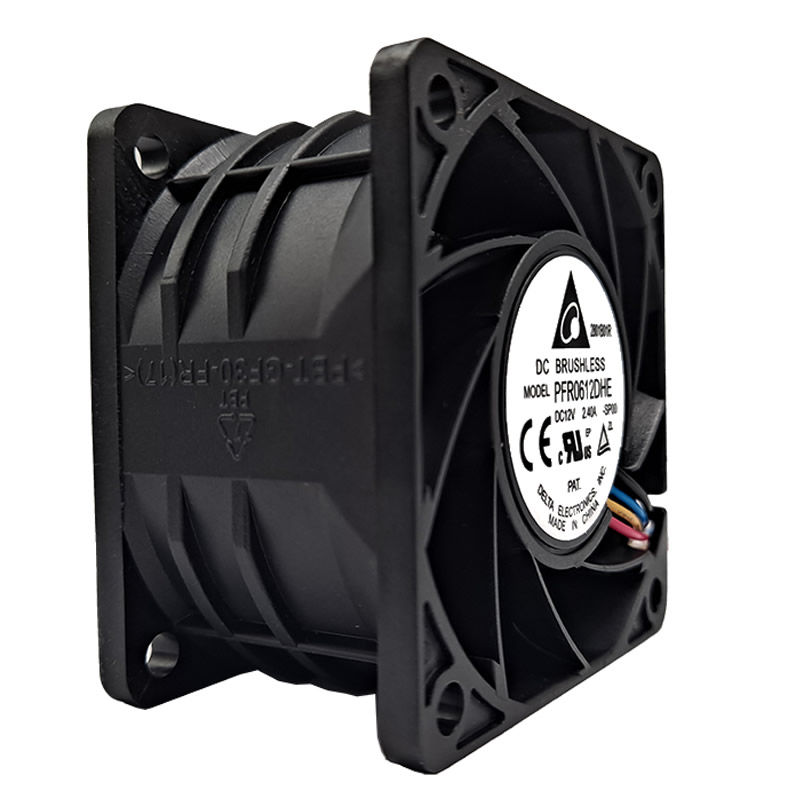

PFR0612DHE-SP00 Delta 60x60x38mm Ball 12VDC 65.98CFM(1.868m3/min) 2.502inchH2O(63.56mmH2O) 63.3dB(A) 19.20W 14500RPM 4wireleads
Specifications
| Part Number | PFR0612DHE-SP00 |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 19.20 W |
| Approval Agency | CE, cURus, TUV |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | PFR |
| Air Flow (m3) | 1.868 m3/min |
| Dimensions | 60x60x38 mm |
| Termination | 4 wire leads |
| Fan Speed | 14500 RPM |
| Fan Type | DC |
| Static Pressure | 2.502 inchH2O (63.56 mmH2O) |
| Noise Level | 63.3 dB(A) |
| Air Flow | 65.98 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.287 lb (130.18 g) |
| Category | Axial |
| Current Rating | 1.60 A |
| Operating Voltage | 7 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Shipping Weight | 0.25 kg |
| Product PDF | PFR0612DHE-SP00-Delta.pdf |
