Description

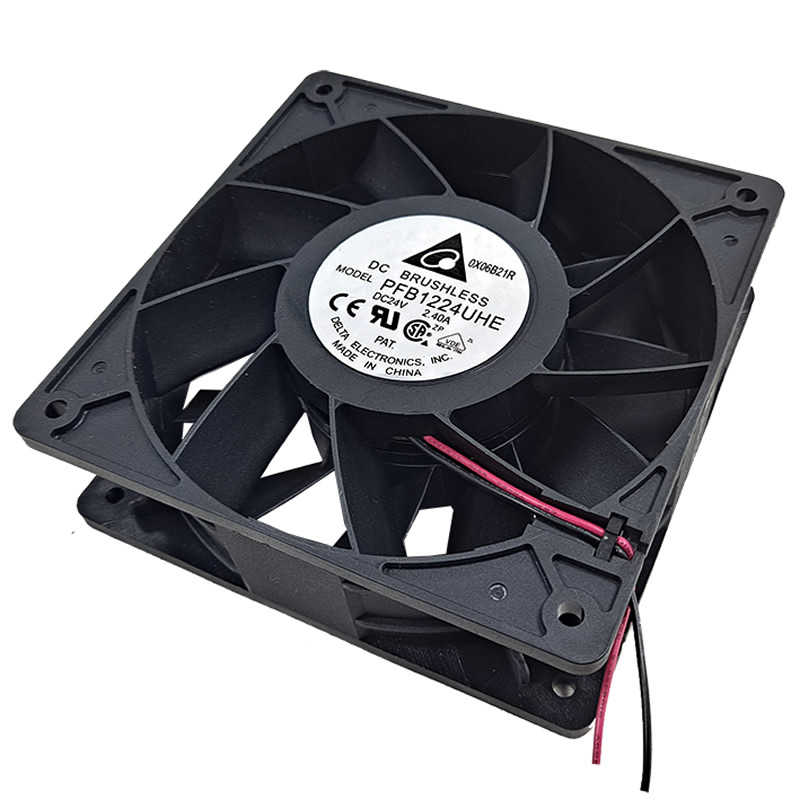

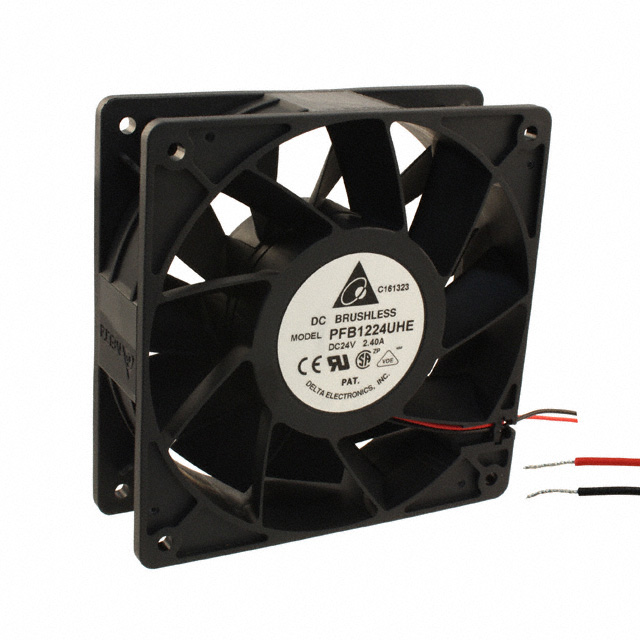

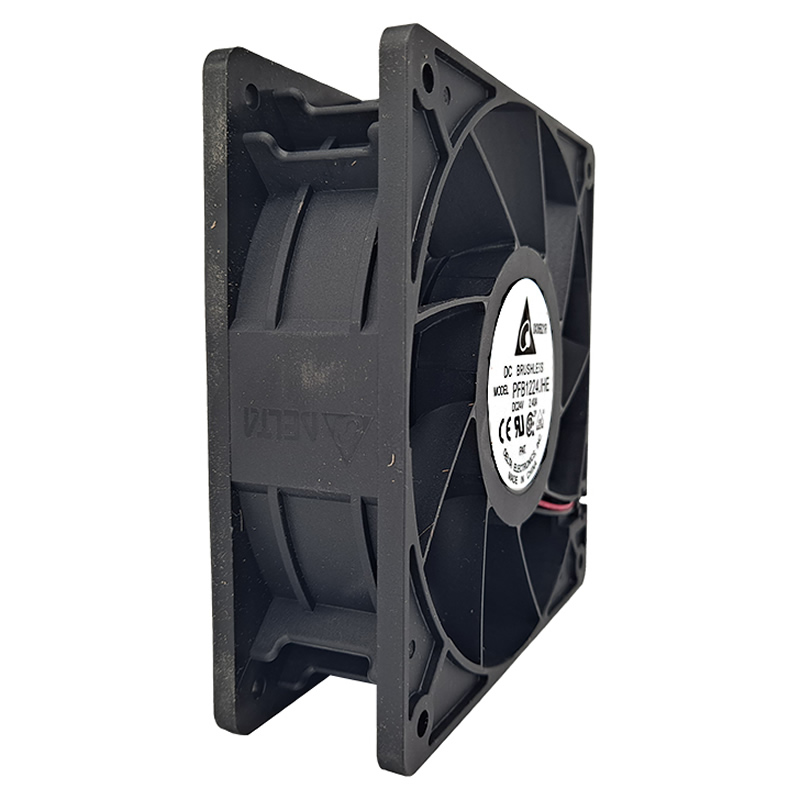

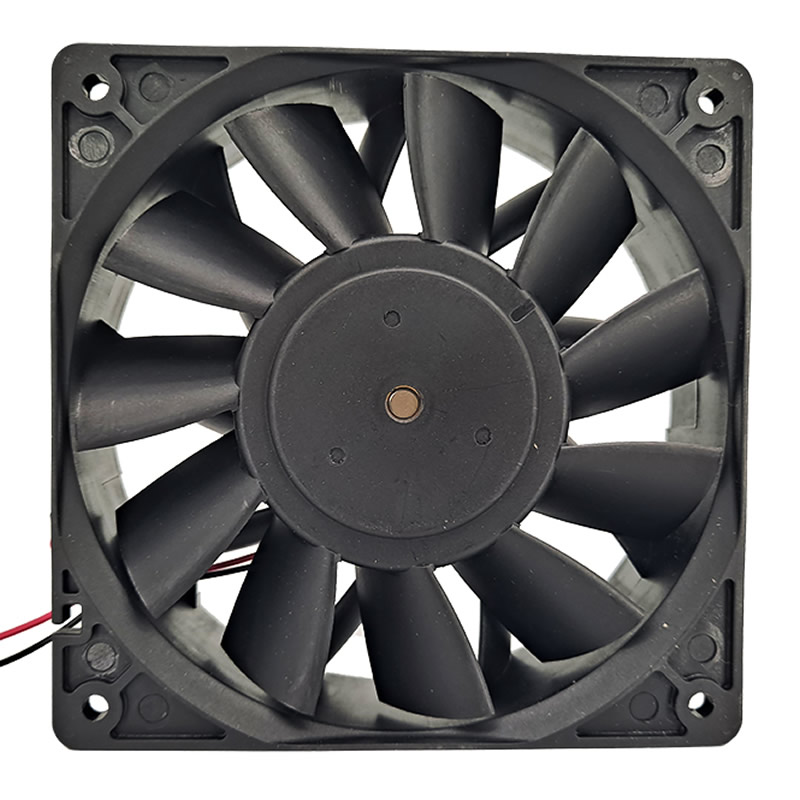

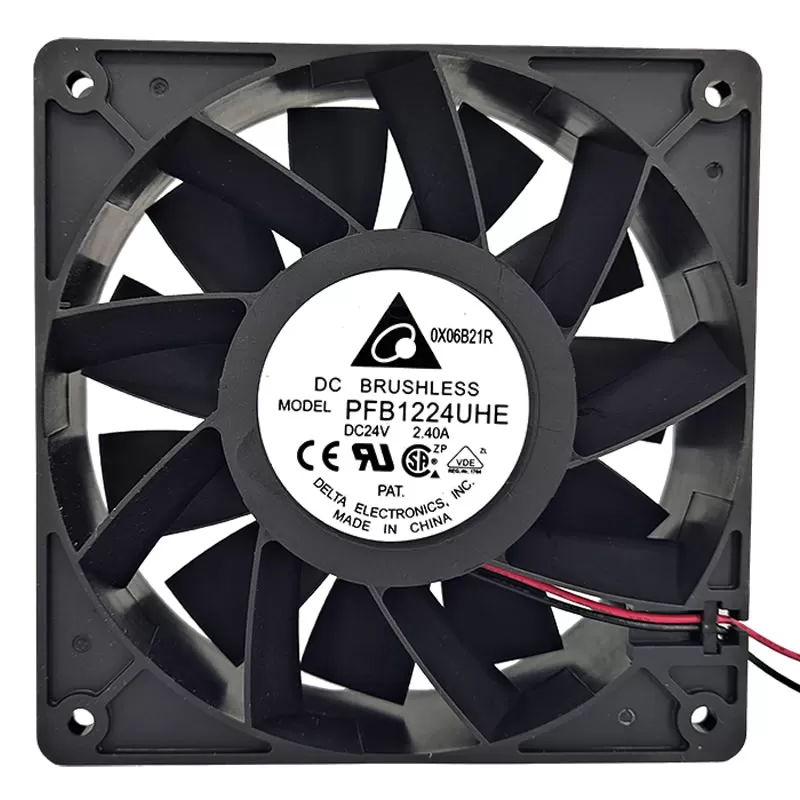

PFB1224UHE Delta 120x120x38mm Ball 24VDC 252.85CFM(7.160m3/min) 1.412inchH2O(35.877mmH2O) 66.5dB(A) 48.00W 5500RPM 2wireleads fan
Specifications
| Part Number | PFB1224UHE |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 120x120x38 mm |
| Power Rating | 48.00 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | PFB |
| Air Flow (m3) | 7.160 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 5500 RPM |
| Fan Type | DC |
| Static Pressure | 1.412 inchH2O (35.877 mmH2O) |
| Noise Level | 66.5 dB(A) |
| Air Flow | 252.85 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.838 lb (380.11 g) |
| Category | Axial |
| Current Rating | 2.00 A |
| Operating Voltage | 14 ~ 26.5VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Shipping Weight | 0.5 kg |
| Product PDF | PFB1224UHE-Delta.pdf |
