Description

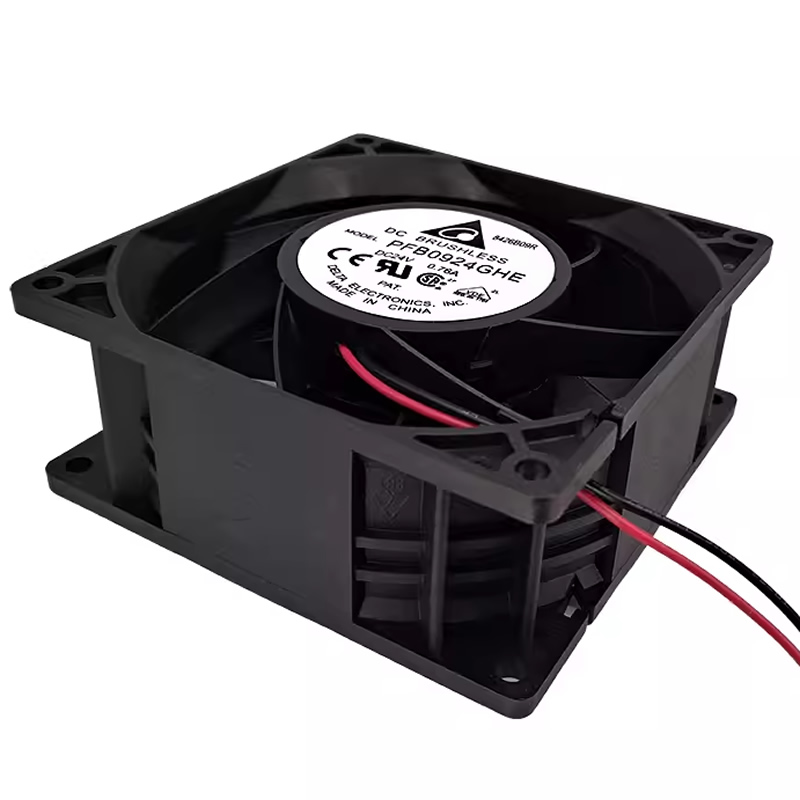

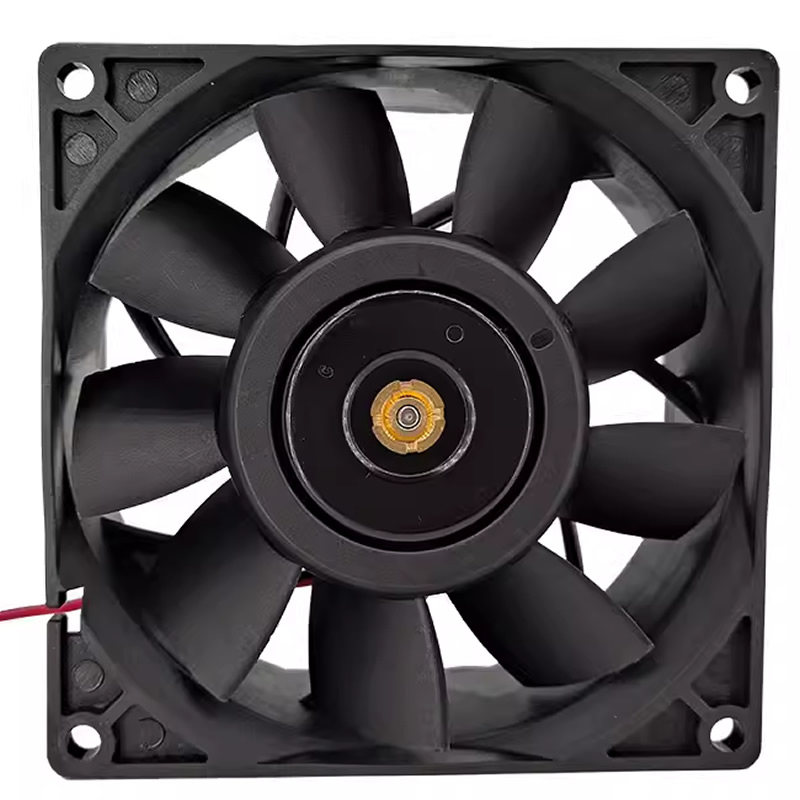

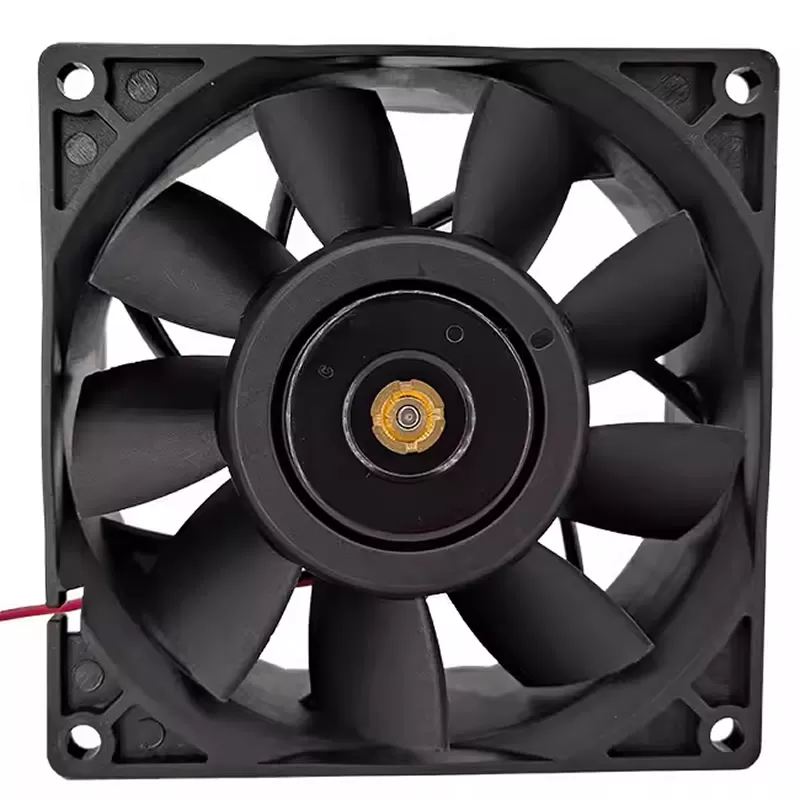

PFB0924GHE Delta 92x92x38mm Ball 24VDC 129.31CFM(3.662m3/min) 1.015inchH2O(25.78mmH2O) 60.5dB(A) 15.12W 6000RPM 2wireleads fan
Specifications
| Part Number | PFB0924GHE |
|---|---|
| Power Rating | 15.12 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | PFB |
| Air Flow (m3) | 3.662 m3/min |
| Dimensions | 92x92x38 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 6000 RPM |
| Fan Type | DC |
| Static Pressure | 1.015 inchH2O (25.78 mmH2O) |
| Noise Level | 60.5 dB(A) |
| Air Flow | 129.31 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.553 lb (250.84 g) |
| Category | Axial |
| Current Rating | 0.63 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | PFB0924GHE-Delta.pdf |
