Description

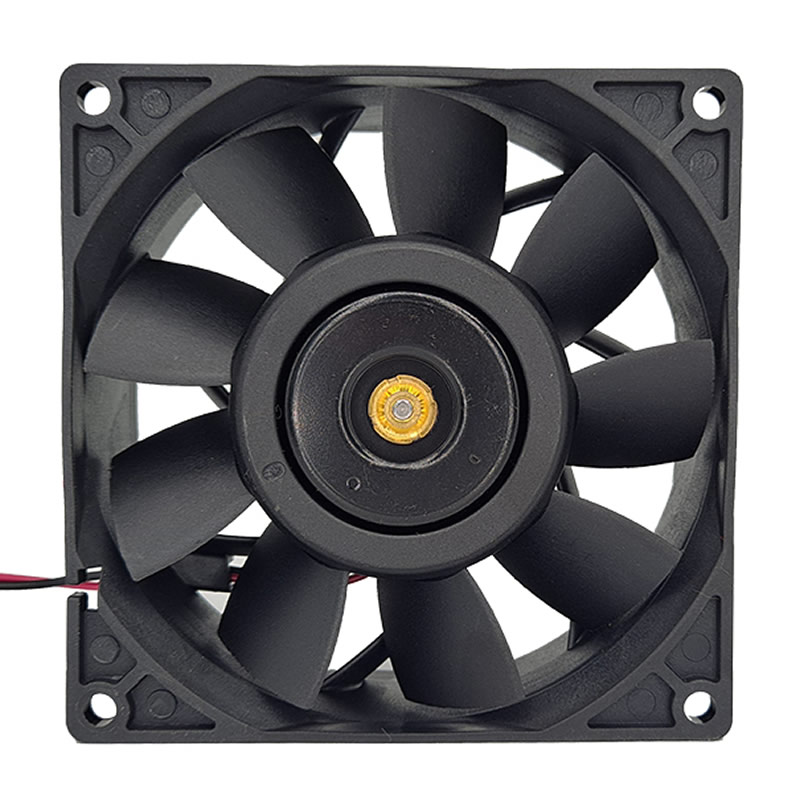

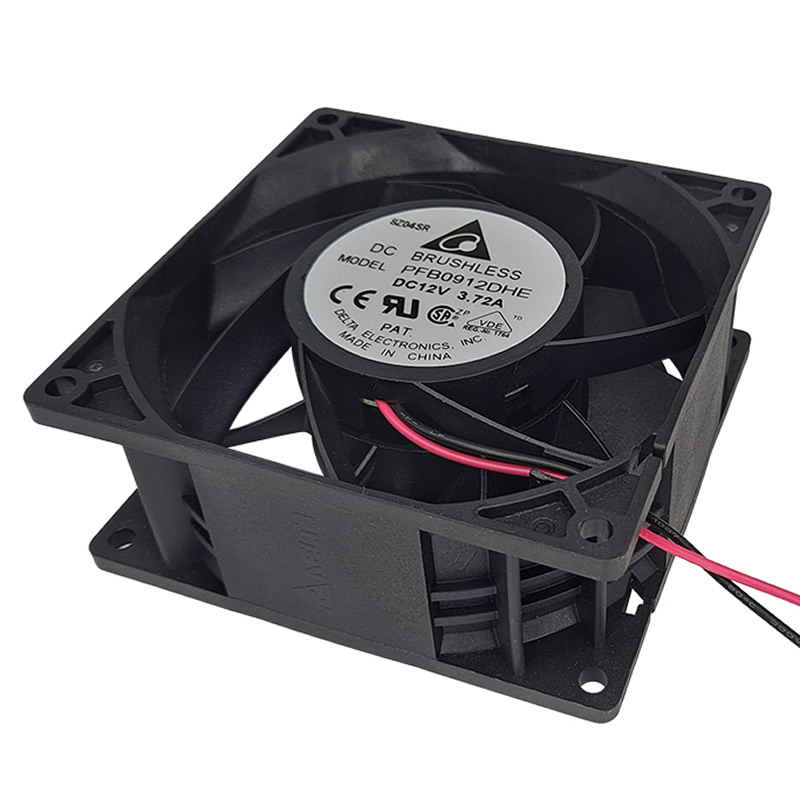

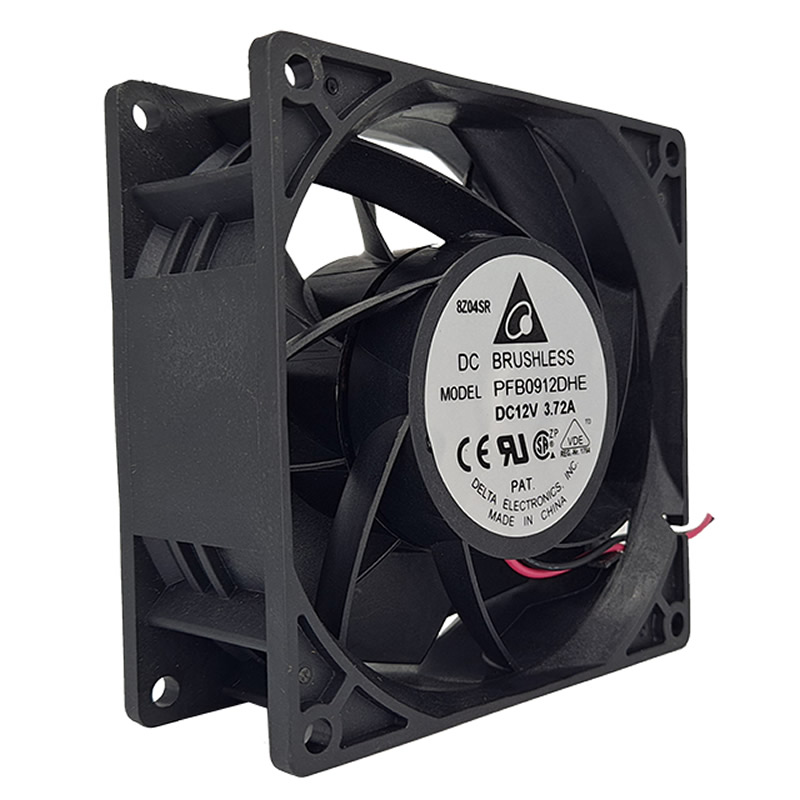

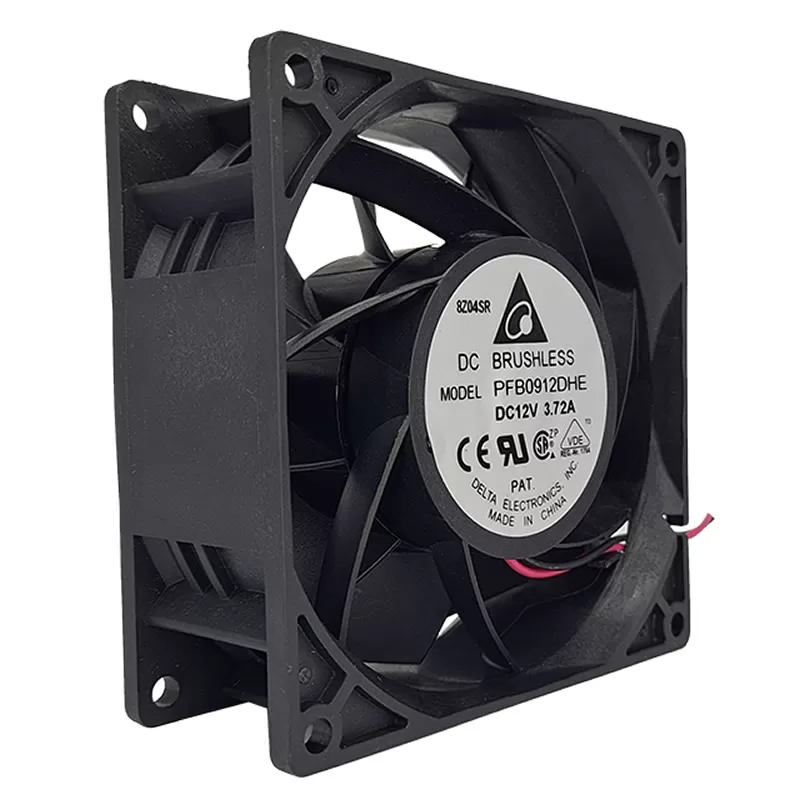

PFB0912DHE Delta 92x92x38mm Ball 12VDC 175.03CFM(4.957m3/min) 1.819inchH2O(46.21mmH2O) 66.5dB(A) 37.20W 8000RPM 2wireleads fan
Specifications
| Part Number | PFB0912DHE |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 37.20 W |
| Dimensions | 92x92x38 mm |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | PFB |
| Air Flow (m3) | 4.957 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 8000 RPM |
| Fan Type | DC |
| Static Pressure | 1.819 inchH2O (46.21 mmH2O) |
| Noise Level | 66.5 dB(A) |
| Air Flow | 175.03 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.553 lb (250.84 g) |
| Category | Axial |
| Current Rating | 3.10 A |
| Operating Voltage | 7 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Shipping Weight | 0.25 kg |
| Product PDF | PFB0912DHE-Delta.pdf |
