Description

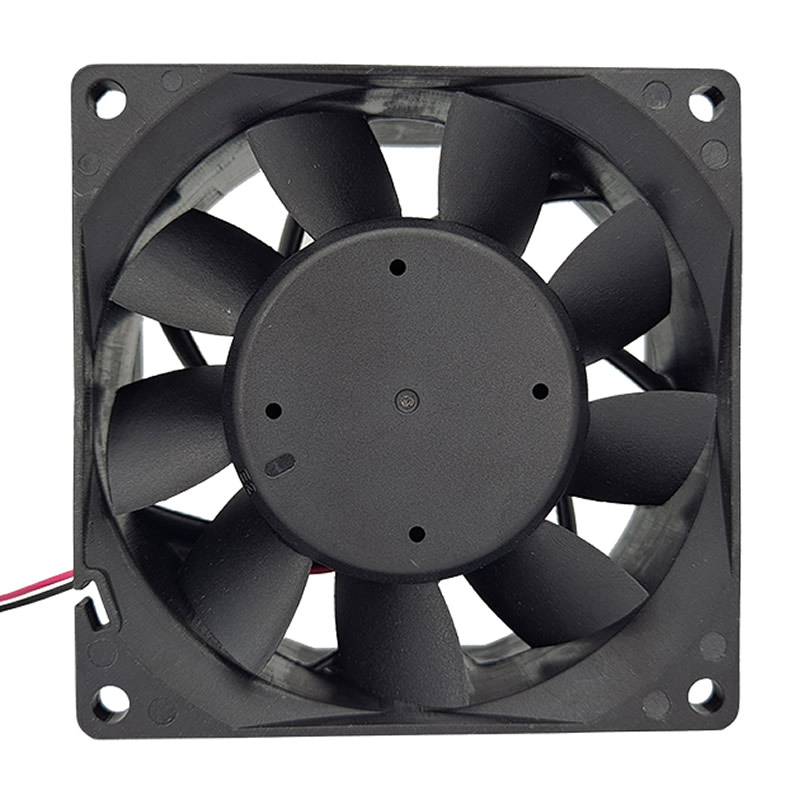

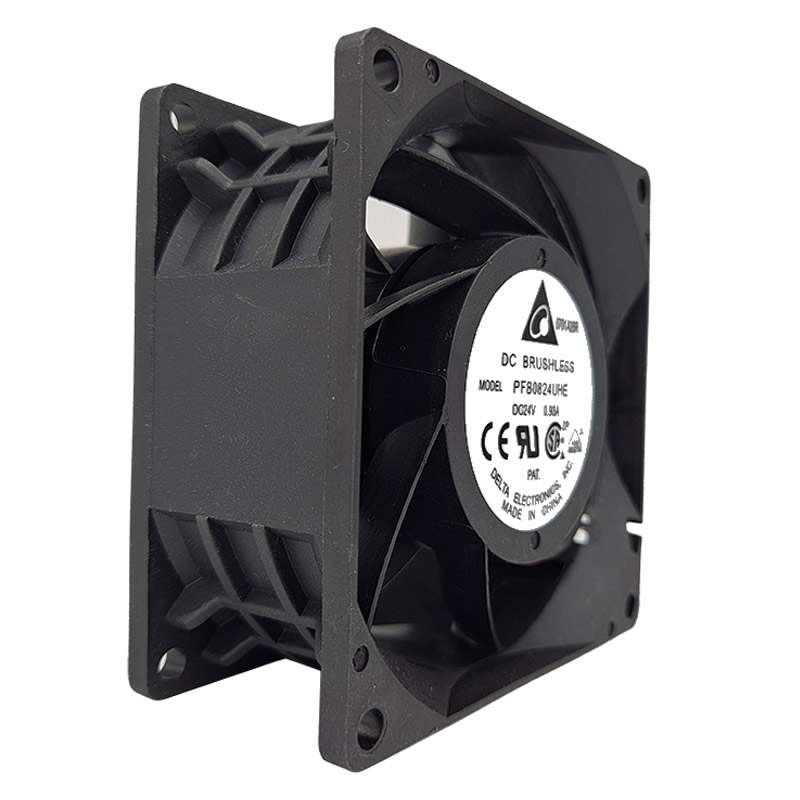

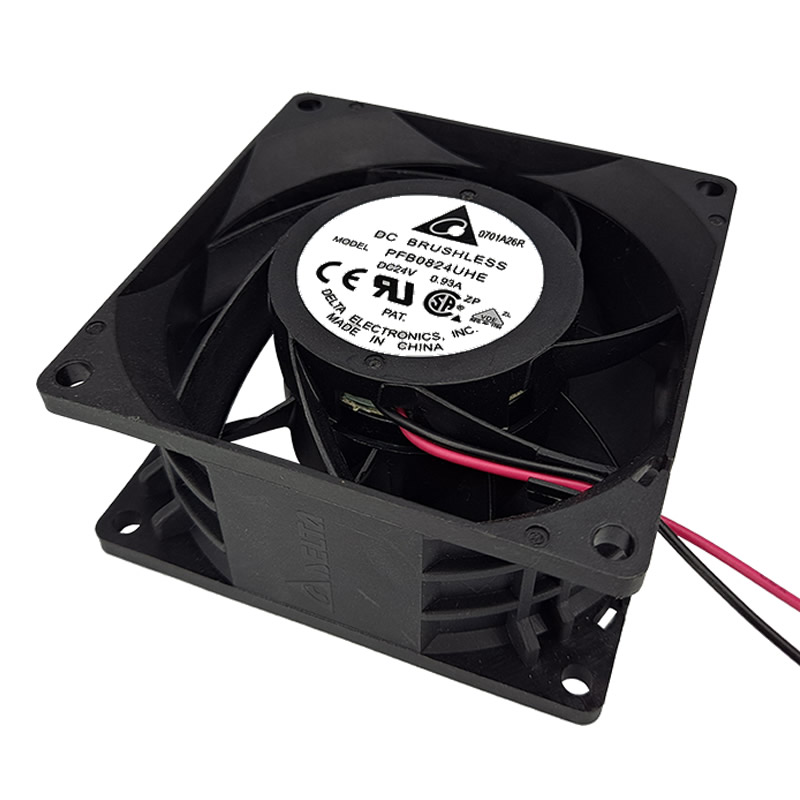

PFB0824UHE Delta 80x80x38mm Ball 24VDC 107.30CFM(3.038m3/min) 1.368inchH2O 0.93A 61.0dB(A) 18.48W 7500RPM 2wireleads axial fan
Specifications
| Model | PFB0824UHE |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 80x80x38 mm |
| Power Rating | 18.48 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | PFB |
| Air Flow (m3) | 3.038 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 7500 RPM |
| Fan Type | DC |
| Static Pressure | 1.368 inchH2O (34.75 mmH2O) |
| Noise Level | 61.0 dB(A) |
| Air Flow | 107.30 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.441 lb (200.03 g) |
| Category | Axial |
| Current Rating | 0.93 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | PFB0824UHE-Delta.pdf |
