Description

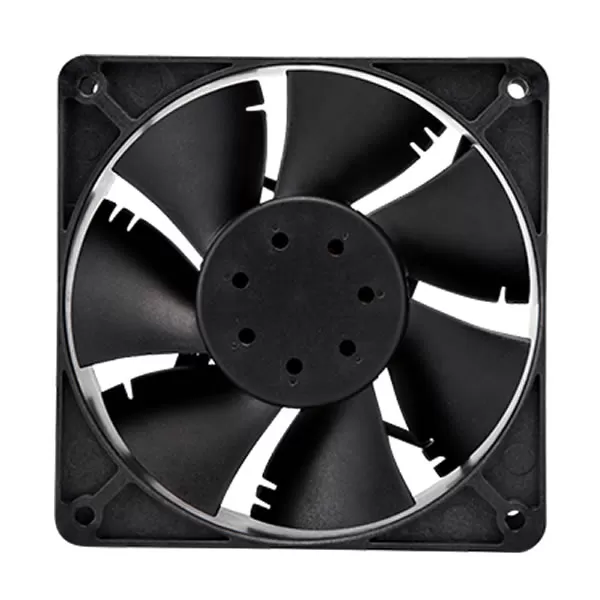

MS48K3 Comair Rotron 17000007A 120x120x38mm 48VDC 0.22A 10.6W 3400RPM 120CFM 204.0m³/h 51.8dB(A) Ball 0.35inH2O 87Pa 2 Wire Leads Axial DC fan
Specifications
| Model Number | MS48K3 |
|---|---|
| Air Flow | 120 CFM |
| Weight | 250 g |
| Manufacturer | Comair Rotron |
| Series | Muffin XP DC |
| Dimensions | 120x120x38 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24 – 56VDC |
| Current Rating | 0.22 A |
| Power Rating | 10.6 W |
| Fan Speed | 3400 RPM |
| Air Flow (m3) | 204.0 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000007A |
| Noise Level | 51.8 dB(A) |
| Static Pressure | 0.35 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 87 Pa |
| Product PDF | MS48K3-Comair-Rotron.pdf |
